Sony VPCB11X9E/B [11/206] Locating controls and ports

Getting Started >

Locating Controls and Ports

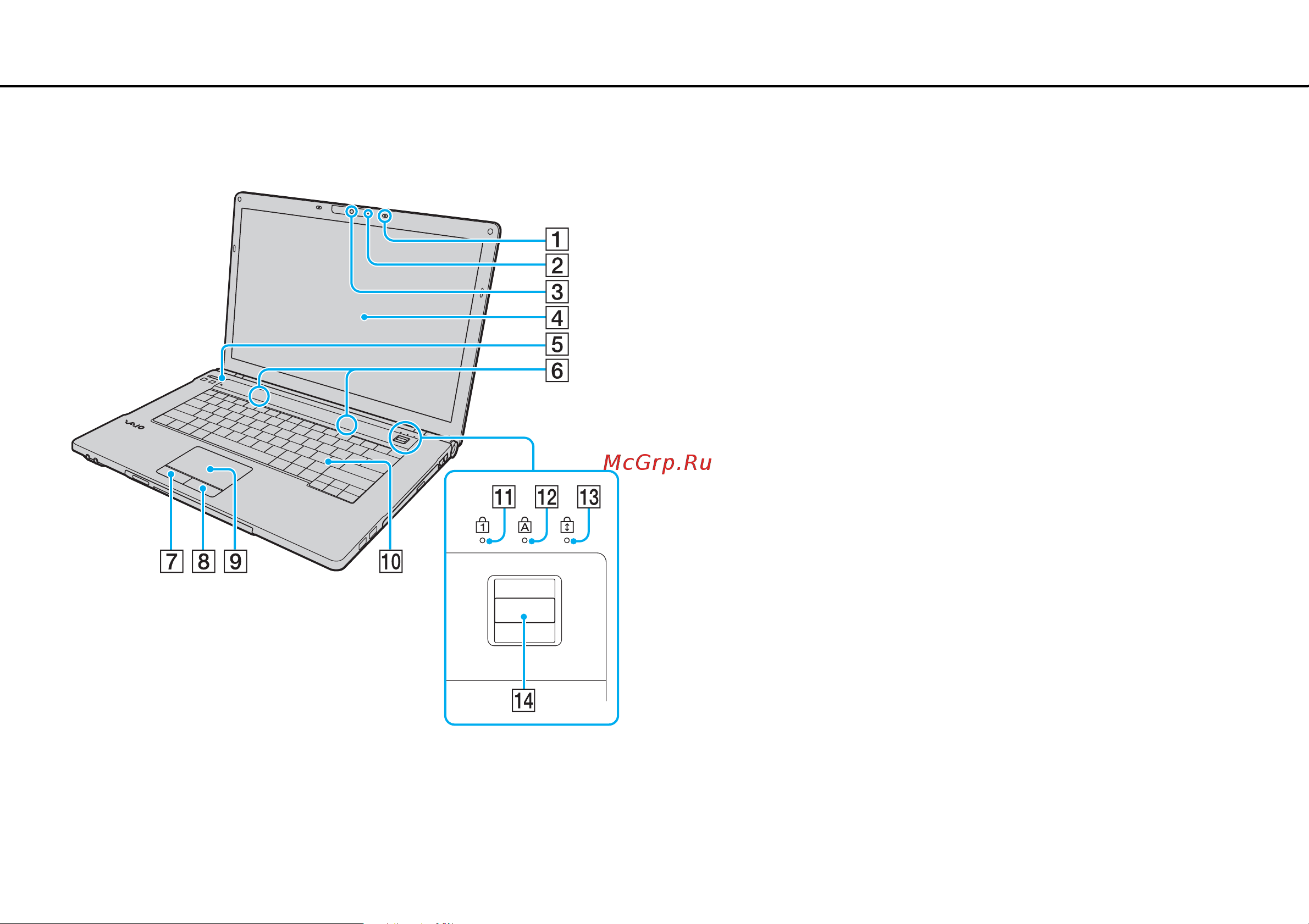

Front

A Built-in microphone (monaural)

B Built-in MOTION EYE camera indicator

(page 17)

C Built-in MOTION EYE camera

(page 35)

D LCD screen (page 142)

E Ambient light sensor (page 188)

Measures ambient light intensity for automatically adjusting the

LCD brightness to an optimum level.

F Built-in speakers (stereo)

G Left button (page 33)

H Right button(page 33)

I Touch pad (page 33)

J Keyboard (page 31)

K Num lock indicator (page 17)

L Caps lock indicator (page 17)

M Scroll lock indicator (page 17)

N Fingerprint sensor

(page 74)

* On selected models only.
