Install Side Curtains

NOTE: Attach side curtains to the air conditioner before placing the unit in the window.

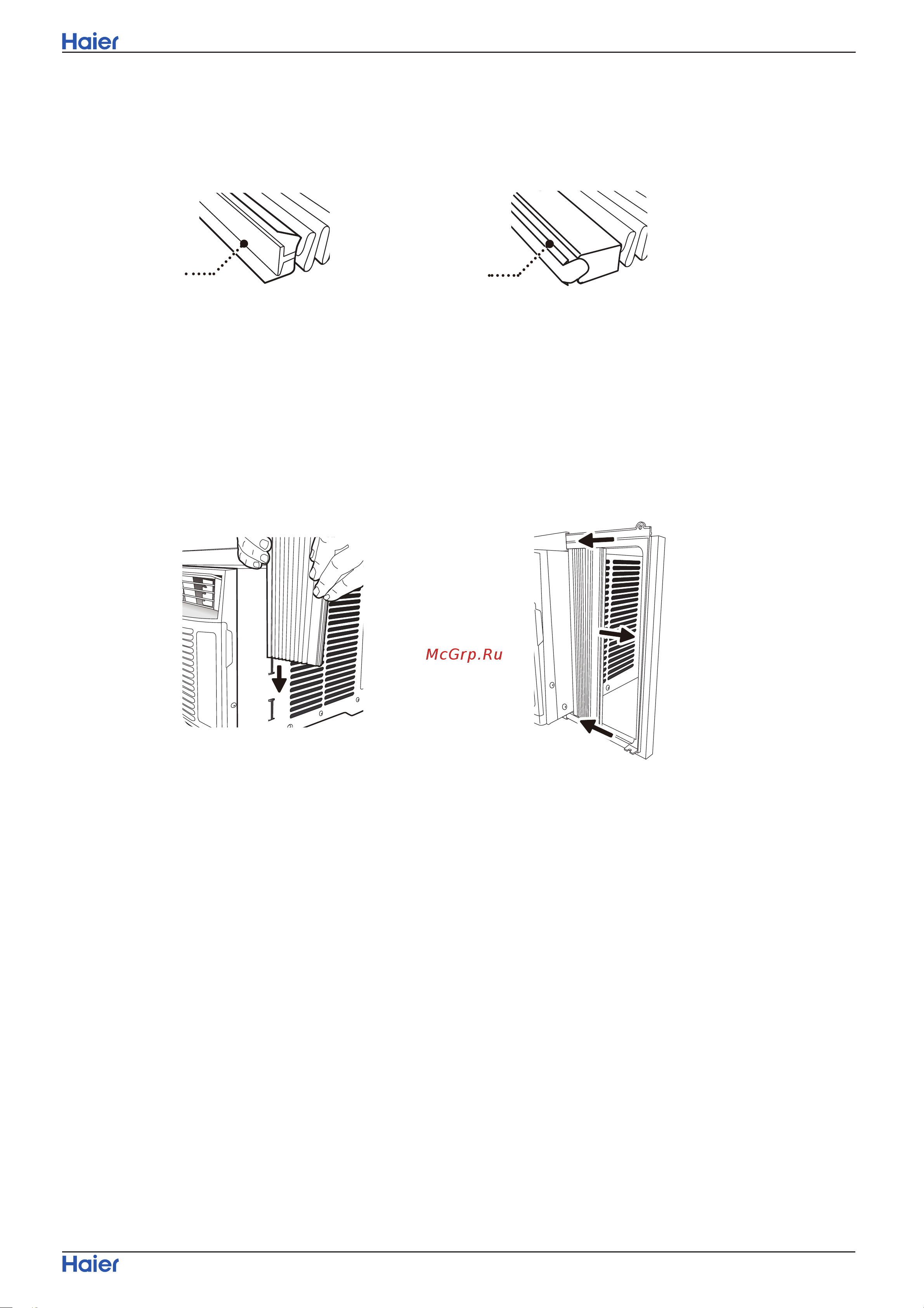

1. Place the tabbed side of the side curtain in the track on the right-hand side of the air conditioner cabinet.

(See Fig.1)

TABBED SIDE OF

SIDE CURTAIN

Fig. 1

LOCK EDGE SIDE

OF SIDE CURTAIN

Fig. 2

Fig. 3

CLICK

Fig. 4

2. Slide the tabbed side of the side curtain down over all 3 tracks until the curtain is aligned with the top and bottom

of the air conditioner cabinet. (See Fig.3)

3. Slide the side curtain frame over the top of the side curtain, then into the channel on the top of the air conditioner

and into the track on the bottom of the air conditioner. (See Fig.4)

4. Slide the side curtain frame as close to the air conditioner cabinet as necessary to lock the side curtain to the frame.

Gently press the frame until it clicks.(See Fig.2 & Fig.4)

5. Repeat above steps for the left-hand side curtain and frame. Make sure no gaps are left to ensure that air does not

escape into or out of the room.
