Installation and Accessory Parts

A. Width

B. Height

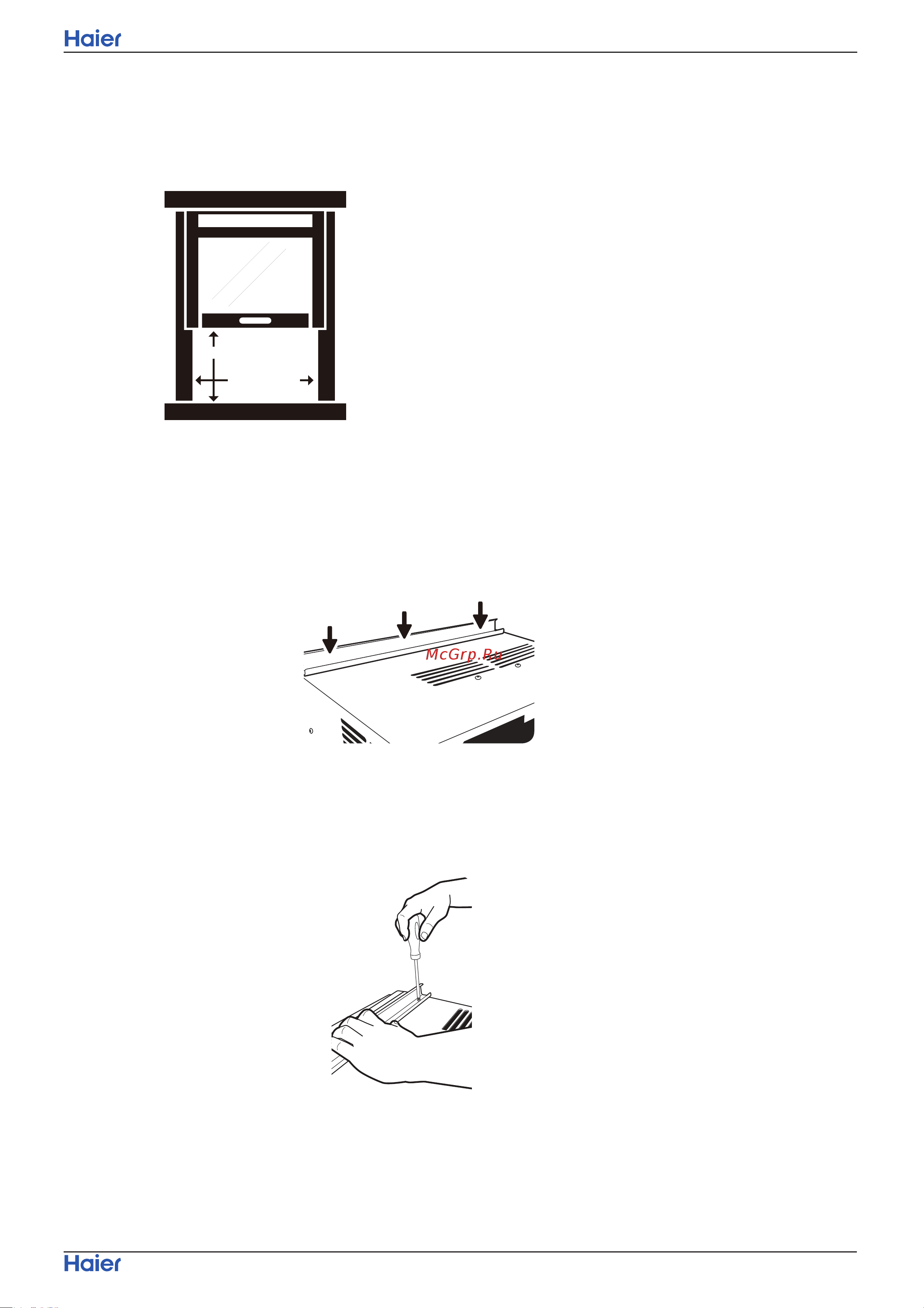

1. Place the top channel on the top of the air conditioner, lining up the holes in the top channel with the holes in the top

of the air conditioner.Make sure the channel is facing forward as indicated by the sticker.

Install Top Channel

Prepare Air Conditioner for Installation

Window Installation

Window opening measurements:

A-WIDTH

B-HEIGHT

Using 3/8 " self-tapping screws, attach the top channel to the top of the air conditioner.

Use three (3) 3/8" self-tapping screws.
