Haier HWE06XCN [12/25] Completing the installation

renoitidnoC riA citsemoD

Installation and Accessory Parts

Completing the installation

Attach side curtains to window

1. Pull the left-hand curtain and frame out until it fits flush to the side of the window frame. (See Fig.9)

2. Use a 1/8” drill bit to drill a starter hole through the top hole in the side curtain and into the window sash.

3. Insert one (1) 1" wood screws through the top hole of the left hand curtain and into the window sash.(See Fig.10)

4. Repeat for the right-hand curtain.

5. Use a 1/8" drill bit to drill a starter hole into the window sash using the top hole in the side curtain as a guide.

6. Insert one (1) of the 1" wood screws through the bottom hole of the left-hand curtain and into the window frame.

(See Fig.11)

7. Repeat for the right-hand curtain.

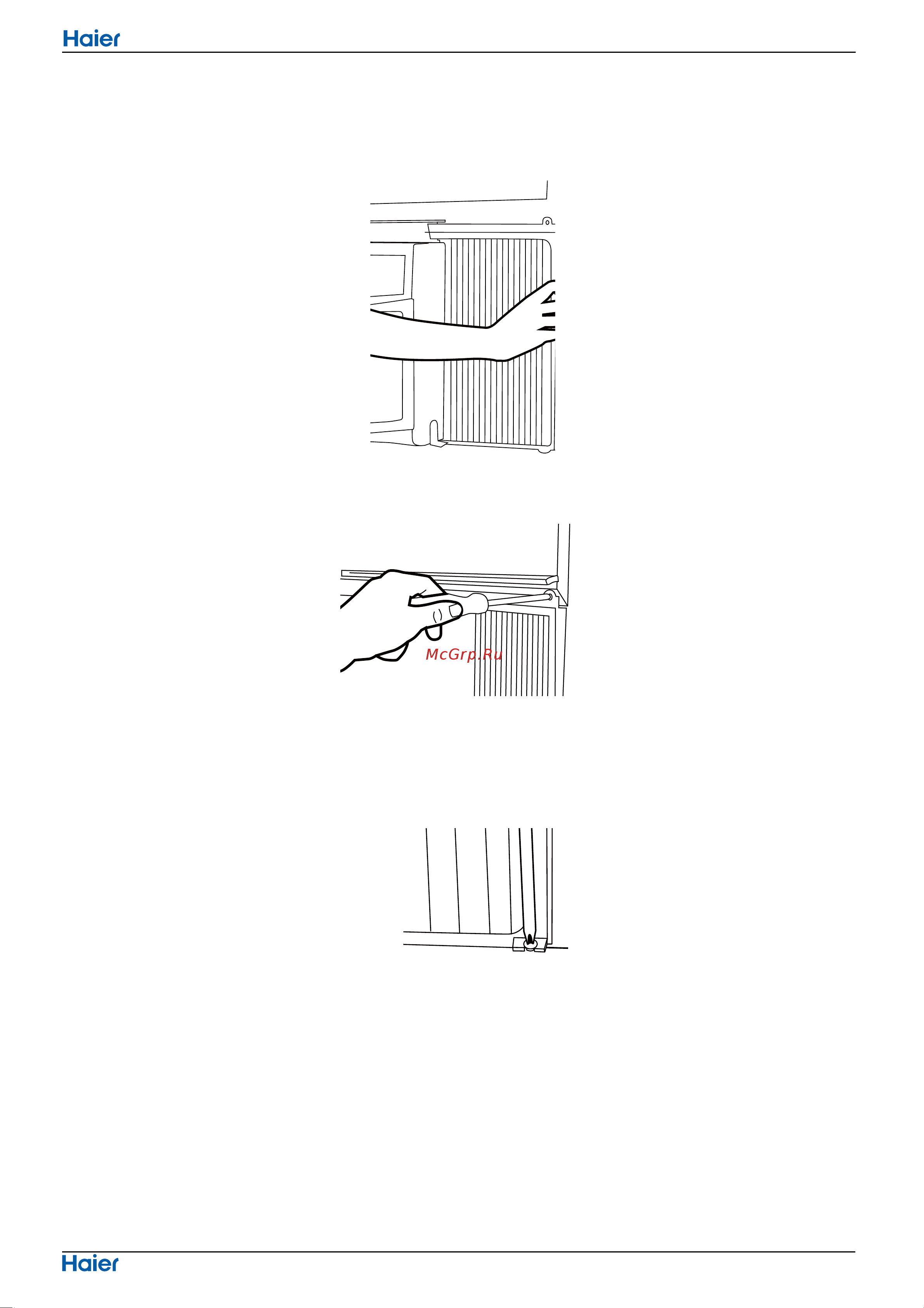

Fig. 9

Fig. 10

Fig. 11
