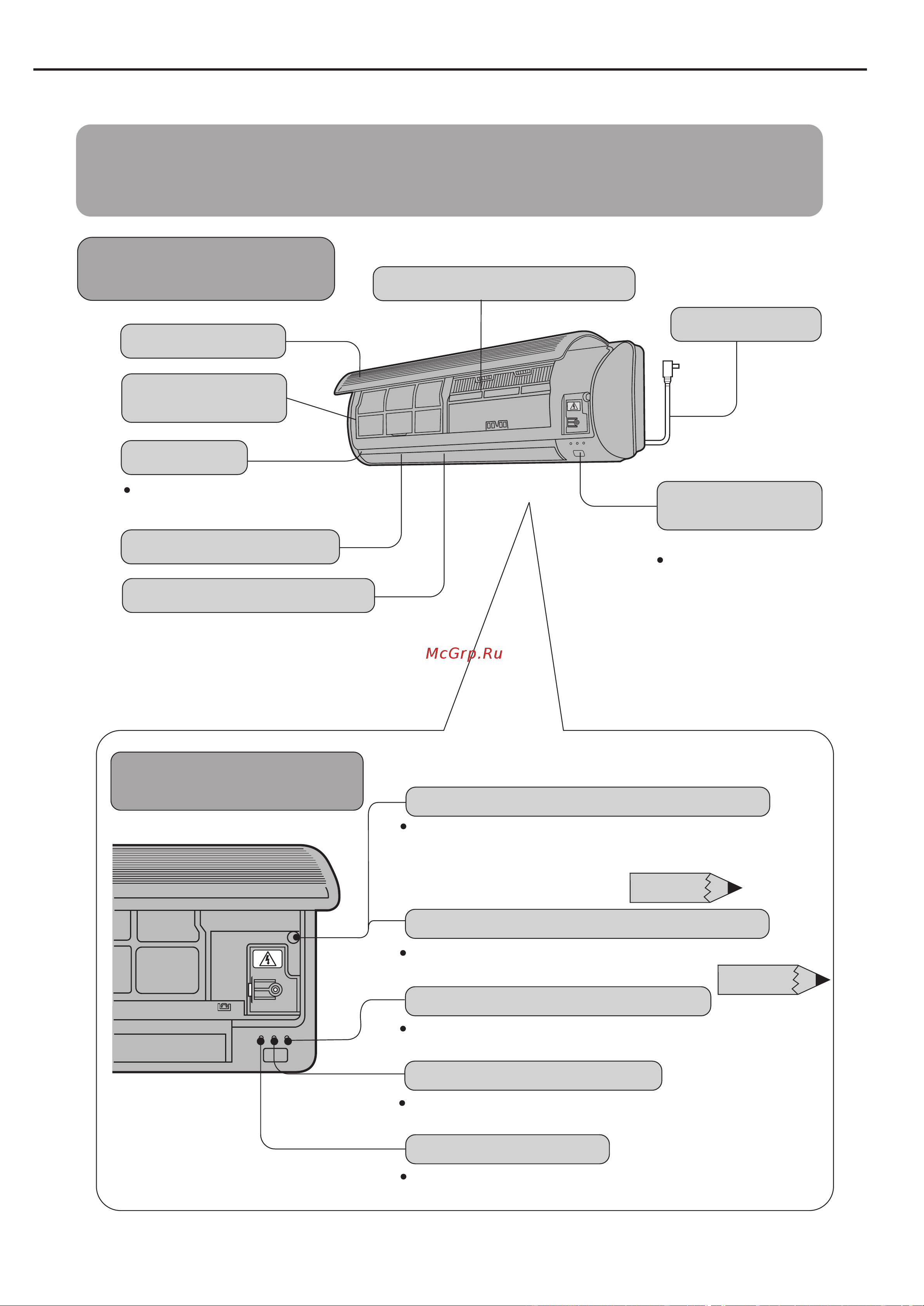

Description part and function
Parts and Functions
The air flow direction can be adjusted
with the vertical and horizontal louvers
INLET GRILLE
MOLD PROOF
AIR FILTER
LOUVER
VERTICAL LOUVER
AIR PURIFYING FILTER
Indoor Unit
POWER PLUG
Beeping sound
assures successful
signal transmission
between wireless
remote controller
and the indoor unit.
For models:
AS122AMAHA
(HSU-12HT03(B))
REMOTE SIGNAL
RECEIVER
HORIZONTAL LOUVER
Operating Panel
The test operation switch is also used as an emergency
operation switch.
If the wireless remote controlling device is not available
( when the wireless remote controller is lost or the battery
of the controller has low charge ), the air conditioning system
can be turned on temporarily.
EMERGENCY OPERATION(MANUAL)SWITCH
TEST OPERATION ( MANUAL ) SWITCH
Use the test operation switch when the room temperature is
below 16°C: do not use in normal operation.
OPERATION MODE INDICATOR
TIMER MODE INDICATOR
The timer mode indicator lights when timer switch of the
remote controller is "ON" or "OFF" position.
POWER INDICATOR
The power indicator lights when the ON/OFF switch of
remote controller is "ON".
The opearation mode indicator lights when the air conditioner
is in operation.
