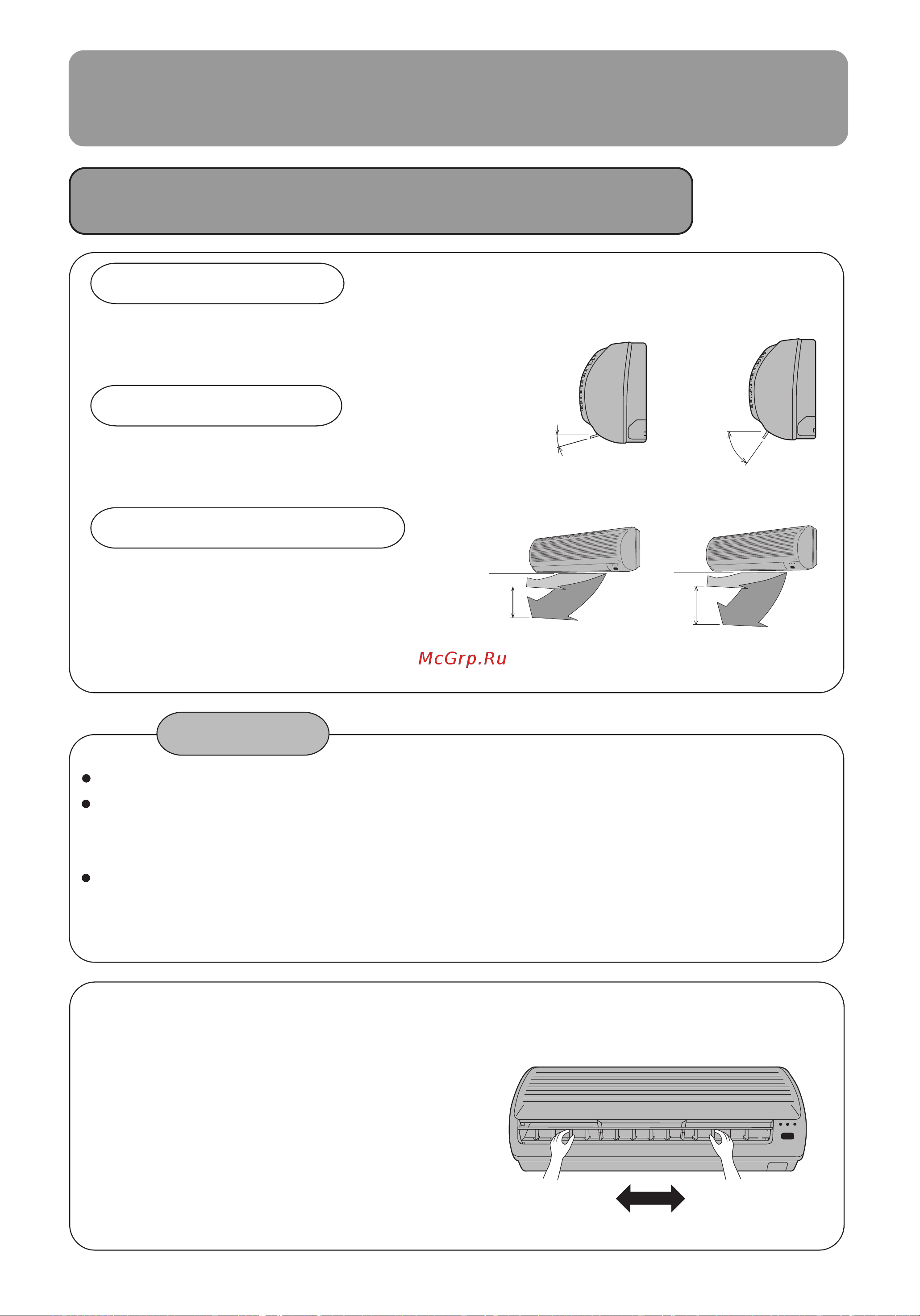

Operation
Air Flow Direction Adjustment
Approx. 60
degrees
Level
Level
Approx. 10
degrees
Approx. 60
degrees
Approx. 10
degrees
Level
Approx. 45
degrees
Approx. 10
degrees
Level
Vertical Adjustment
When ON/OFF switch is pressed, the vertical
louver will move to the adequate positions
for each operation automatically.
If air flow direction switch is pressed once,
the vertical louver will move within the range
of figures as right.
Swing of Air Flow
Fixing the Flow Direction
If air flow direction switch is pressed again,
the vertical louver will be fixed and that
position is more memorized. From the next
operation the louver will be set at previous
position automatically.
NOTICE
When the operation is off, the vertical louver closes the outlet automatically.
DO NOT MOVE THE VETICAL LOUVER BY HANDS. It may make the louver not work
properly. In order to move the vertical louver, use wireless remote controller without fail. In
case the louver does not work correctly, once stop the operation and turn on again.
During cooling or dry operation, the vertical louver should not be downward for a long time.
If this is done, dew drops may appear at the outlet. (Even the louver directions is in the
swing range, the louver will move about 10 degrees from horizontal after one hour.)
Horizontal Adjustment
Audjust the horizontal louner by moving the
adjustment tabs.
If the system is operated with the horizontal
louver faced completely to the left or right under
hign humidity (e.g. during the rainy season),
dew drops may appear at the outlet.
During Cooling, Dry Operation
During Heating Operation
