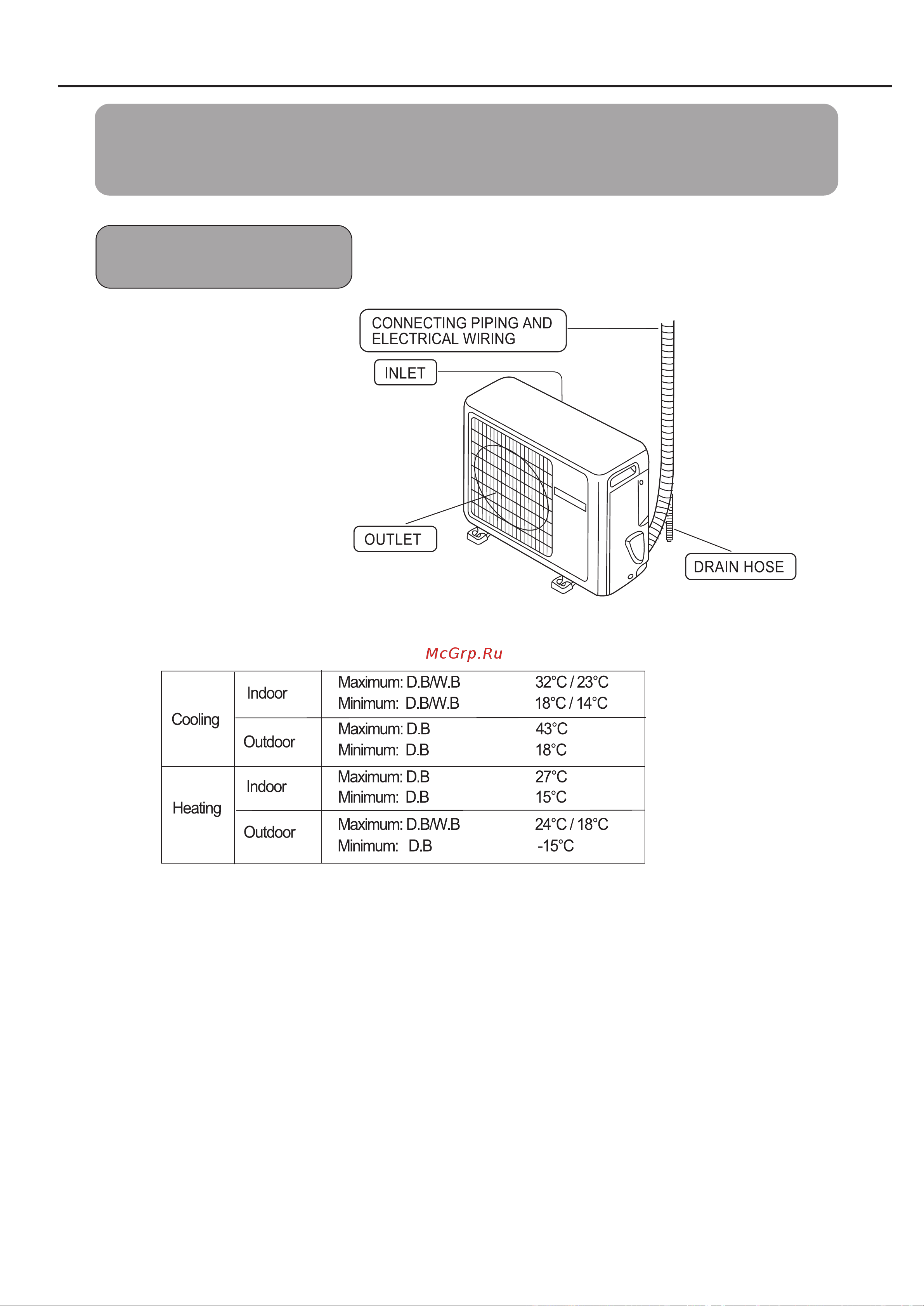

Haier HSU-12HF03(B) [19/63] Parts and functions
![Haier HSU-12HF03(B) [19/63] Parts and functions](/views2/1823893/page19/bg13.png)
Description part and function
2. If the supply cord is damaged, it must be replaced by the manufacturer or
its service agentor a similar qualified person.
4. If the fuse on PC board is broken,please change it with the type of
T.3.15A/250V.
5. The distance between the indoor unit and the floor should be more than 2m.6. The wiring method should be in line with the local wiring standard.6. After installation, the power plug should be easily reached.7. The waste battery should be disposed properly.8. The appliance is not intended for use by young children or infirm persons without
supervision.
10.Young children should be supervised to ensure that they do not play with
the appliance.
1. Applicable ambient temperature range:3. The type of connecting wire is H05RN-F or H07RN-F 3G1.5mm
2
+1X0.75mm
2
.For models:AU122ACAHA
(HSU-12HF03(B))
AU122ACAHA
(HSU-12HH03(B))
AU122ACAHA
(HSU-12HT03(B))
AU122ACAHA
(HSU-12HO03(B))
The machine is adaptive in following situation
Parts and Functions
Outdoor Unit
