Haier HSU-12HF03(B) [27/63] Operation
![Haier HSU-12HF03(B) [27/63] Operation](/views2/1823893/page27/bg1b.png)

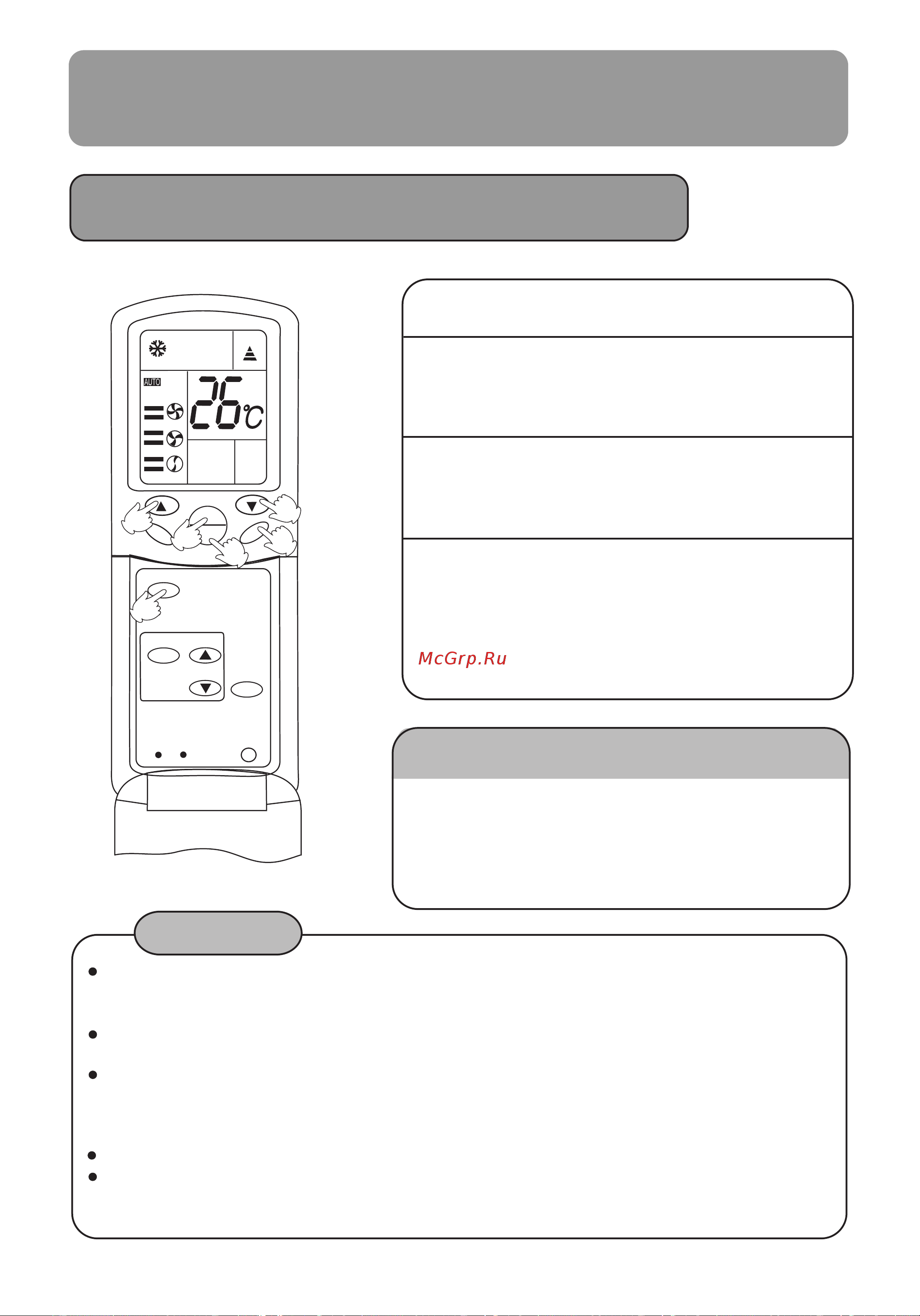

Cooling/Dry mode Operation
Operation
NOTICE
1
2
4
3
Press the ON/OFF switch.
Set the operation mode to
"COOL"or"DRY"by pressing
the operation mode switch.
Adjust the designated
temperature by pressing the
temperature switches.
Adjust the air flow speed by
pressing the air flow speed
switch.
When the switch is set at "AUTO", the
adequate air flow speed is selected by mirco-
computer automatically.
When you press the ON/OFF switch immediately after a stop, the air conditioner does not
start operation for approx.3min. in order to protect the system. Then the operation will start
automatically after 3min.
If the system continues cooling or dry operation for a long period under high humidity, the
outlet may accumulate water and cause dew drops.
During dry mode operation, the system performs the cooling operation until the room
temperature reaches(33.8/F) above the designated temperature. Then it continues dry
mode operation intermittently with air flow speed at "LO", regardless of the designated
speed.
Air flow from the system may be cold when the room temperature is low.
After replacing the dry batteries, the operating conditions returns to ex-factory pre-set as
follows: operation mode: "COOL"; temperature: "26°C (78.8/F)"; timer mode : "NONE" ;
air flow speed: "AUTO".
The system retains the previous setting
conditions until next operation.
Press the ON/OFF switch
again.
OFF
5
LOCK
RESET CODE
MODE
SWING
POWER/SOF
T
TIMER
A
FAN
TEMP
ON
OFF
2
4
1
5
3
3
