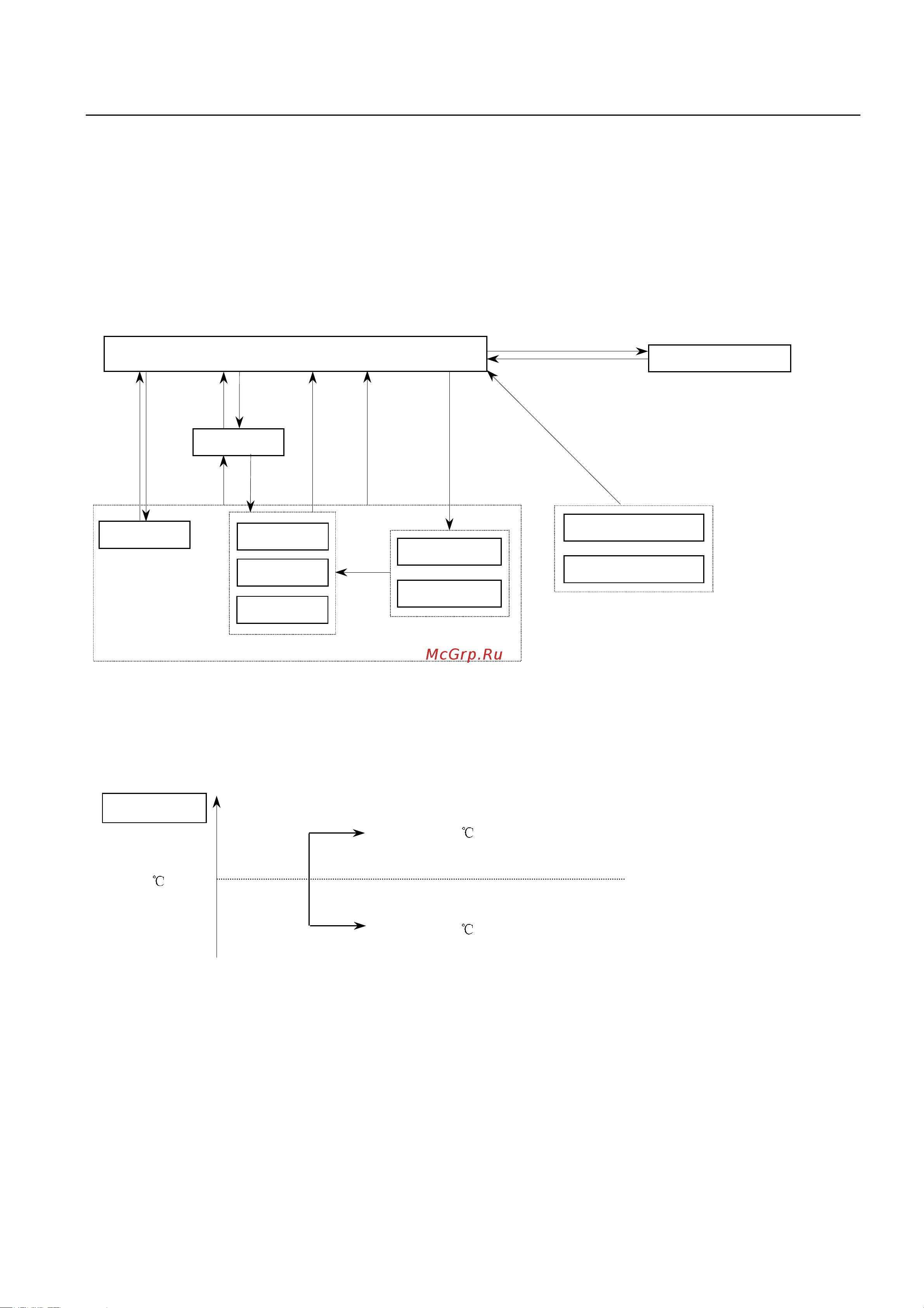

![Haier HSU-12HF03(B) [35/63] Brief introduction to electrical function](/views2/1823893/page35/bg23.png)
Brief introduction to electrical function
1.
Introduction to electrical control function
Including brief introduction to air conditioners of series models and electrical control function as well as the
technical information.
1.1 Brief introduction to electrical function
1.1.1 Status conversion
As the following figure:
Press Emergency 10-15
Press Emergency or
Remote Timer
Remote Control to stop
Control Stops
Operation
1.1.2 Automatic function (automatic running function is selected after pressing emergency button 0-5s)
1.1.2.1 Status conversion under automatic running
As the following figure:
Cool (setting temp. 26 )
23
Heat (setting temp. 23 )
When running in the automatic emergency status, indoor unit can receive the remote controller’s signal to convert
status.
1.1.2.2 Air volume control under automatic running
Wind speed of indoor fan is automatically adjusted when automatic running, refer to air volume control under
cool/heating running for details.
1.1.2.3 Frequency control for compressor under automatic running
It is the same as the frequency control for compressor under cool/heating running.
1.1.2 Cooling running
Malfunction meter
Unit stops
Timer
Cool
Dehumidify
Heat
Trial running
Emergency Cool
Emergency Heat
Abnormity Diagnose
Sensor Abnormity
Ambient Temp.
