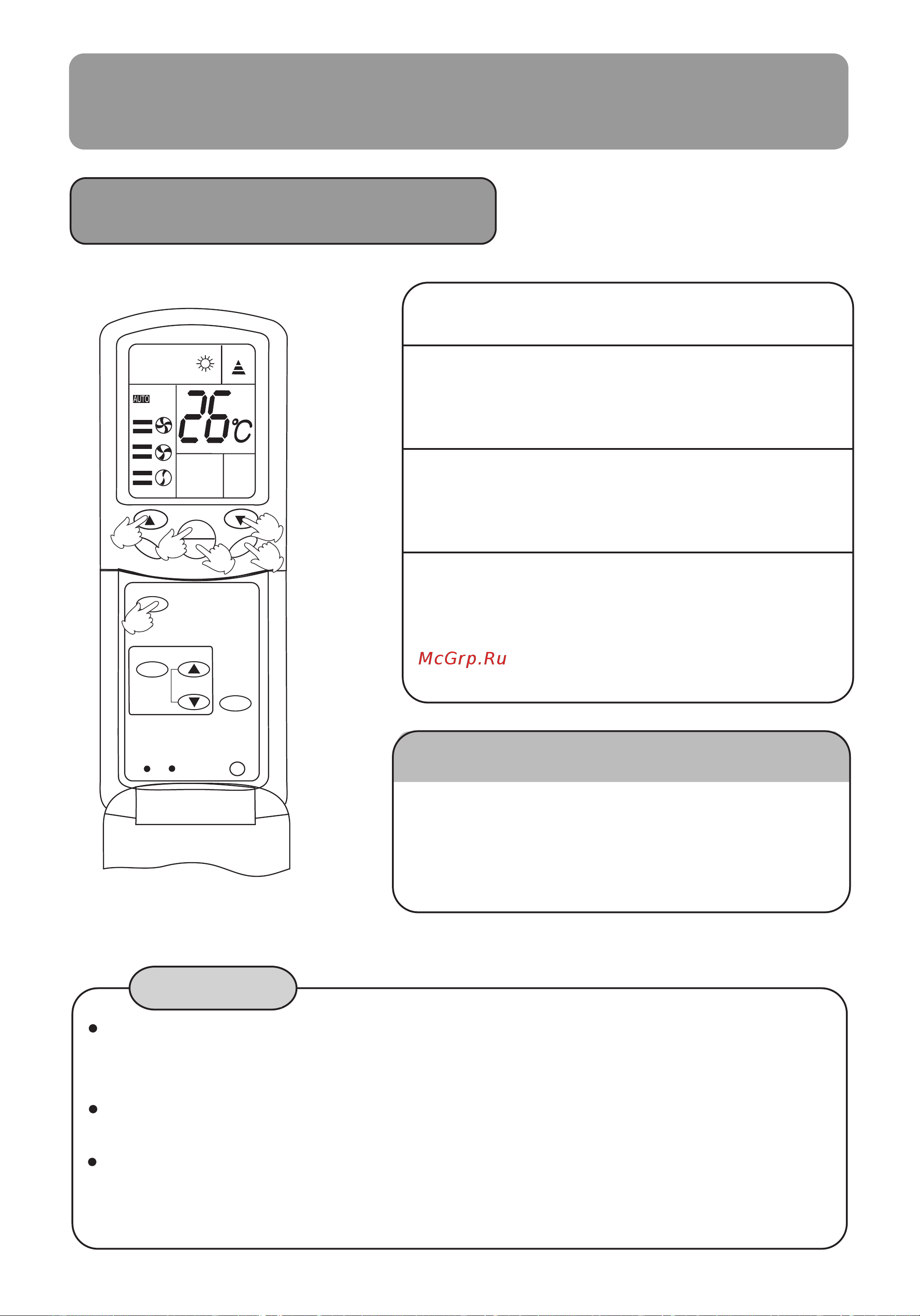

Heating Operation
Operation
NOTICE
1
2
4
3
Press the ON/OFF switch.
Set the operation mode to
"HEAT" by pressing the
operation mode switch.
Adjust the designated
temperature by pressing the
temperature switches.
Adjust the air flow speed by
pressing the air flow speed
switch.
When the switch is set at "AUTO", the micro-
computer selects air flow speed automatically.
When you press the ON/OFF switch immediately after a stop, the air conditioner does not
start operation for approx.3min. in order to protect the system. Operation will start automatically
after 3 min.
When the room temperature has not reached the required level because of a low ambient
temperature,add other heating facilities.
After replacing the dry batteries, the operating conditions become ex-factory preset as
follows: operation mode: "COOL"; temperature: "26°C (78.8/F)"; timer mode : "No" ; air
flow speed: "AUTO".
The system retains the previous settintg
conditions until next operation.
Press the ON/OFF switch
again.
OFF
5
LOCK
RESET CODE
MODE
SWING
POWER/SOF
T
TIMER
A
FAN
TEMP
ON
OFF
3
3
1
5
2
4
