Panasonic CU-HE12NKE [36/110] Vertical airflow
![Panasonic CU-HE12NKE [36/110] Vertical airflow](/views2/1834018/page36/bg24.png)
36

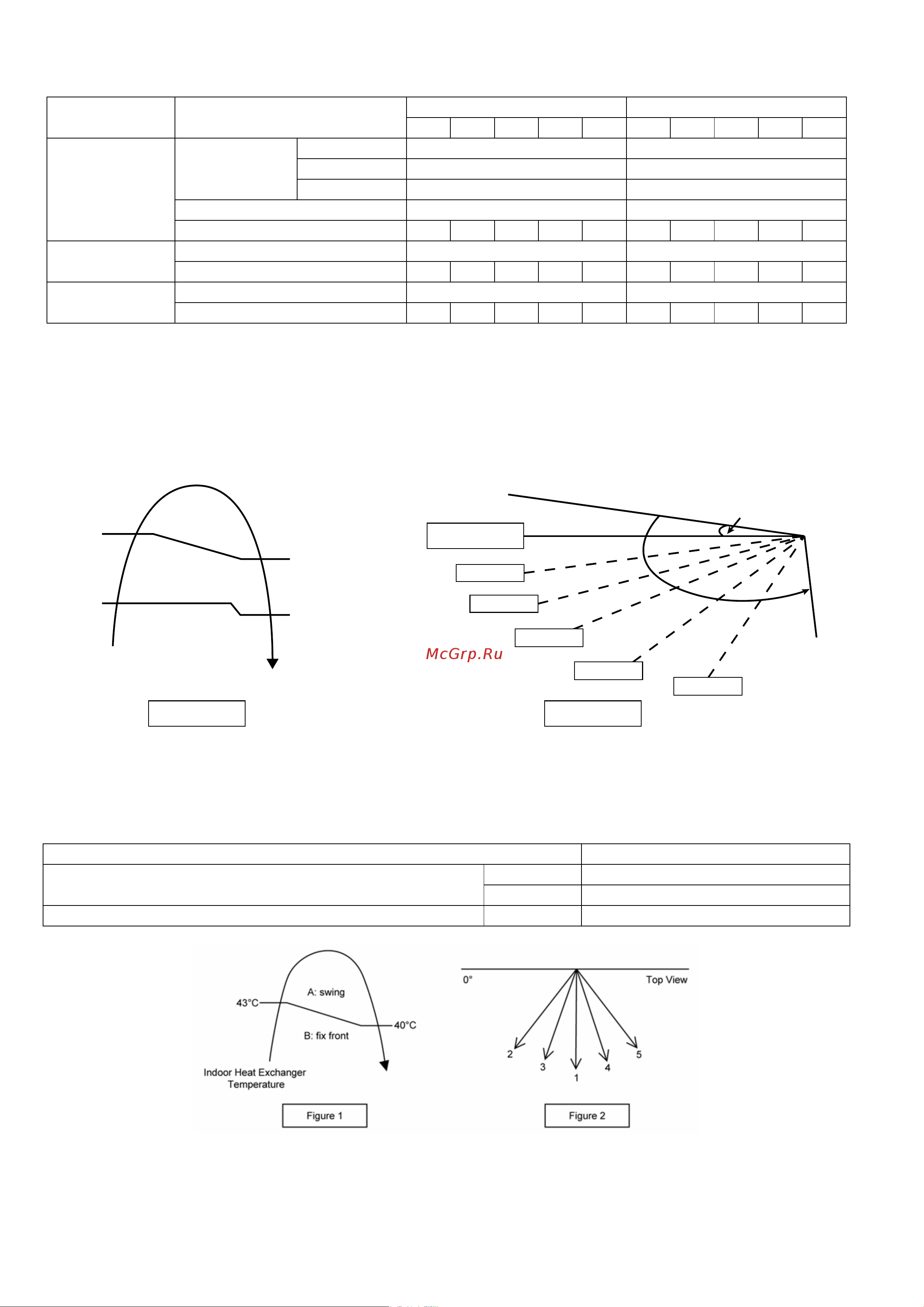

12.4.1 Vertical Airflow
Upper Vane Angle (°) Lower Vane Angle (°)
Operation Mode Airflow Direction
1 2 3 4 5 1 2 3 4 5
A 25 17
B 55 37
Auto with Heat
Exchanger
Temperature
C 25 17
Summer House 55 37
Heating
Manual 20 45 55 65 70 17 27 37 47 56
Auto 45 ~ 70 2 ~ 39
Cooling and Fan
Manual 20 25 50 55 70 2 7 17 27 39
Auto 45 ~ 70 2 ~ 39
Soft Dry
Manual 20 25 50 55 70 2 7 17 27 39
1. Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the
angles as stated above. For heating mode operation, the angle of the vane depands on the indoor heat
exchanger temperature as Figure 1 below. It does not swing during fan motor stop. When the air conditioner is
stopped using remote control, the vane will shift to close position.
2. Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above and
the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control, the
vane will shift to close position.
58°
C
50°C
Indoor Heat
Exchanger Temperature
36°
C
30°C
C
A
Figure 1
B
Figure 2
Upper vane: 60°
Lower vane: 58°
Reference point
Closed Position
Step 1
Step 2
Step 3
Step 4
Step 5
12.4.2 Horizontal Airflow
1. Automatic horizontal airflow direction can be set using remote control; the vane swings left and right within the
angles as stated below. For heating mode operation, the angle of the vane depends on the indoor heat
exchanger temperature as Figure 1 below. It does not swing during fan motor stop.
Operation Mode Vane Angle (°)
A 65 ~ 115
Heating, with heat exchanger temperature
B 90
Cooling, Fan and Soft Dry 65 ~ 115
