15.4.14 H33 (Unspecified Voltage between Indoor and Outdoor)

Malfunction Decision Conditions

• The supply power is detected for its requirement by the indoor/outdoor transmission.

Malfunction Caused

• Wrong models interconnected.

• Wrong indoor unit and outdoor unit PCBs used.

• Indoor unit or outdoor unit PCB defective.

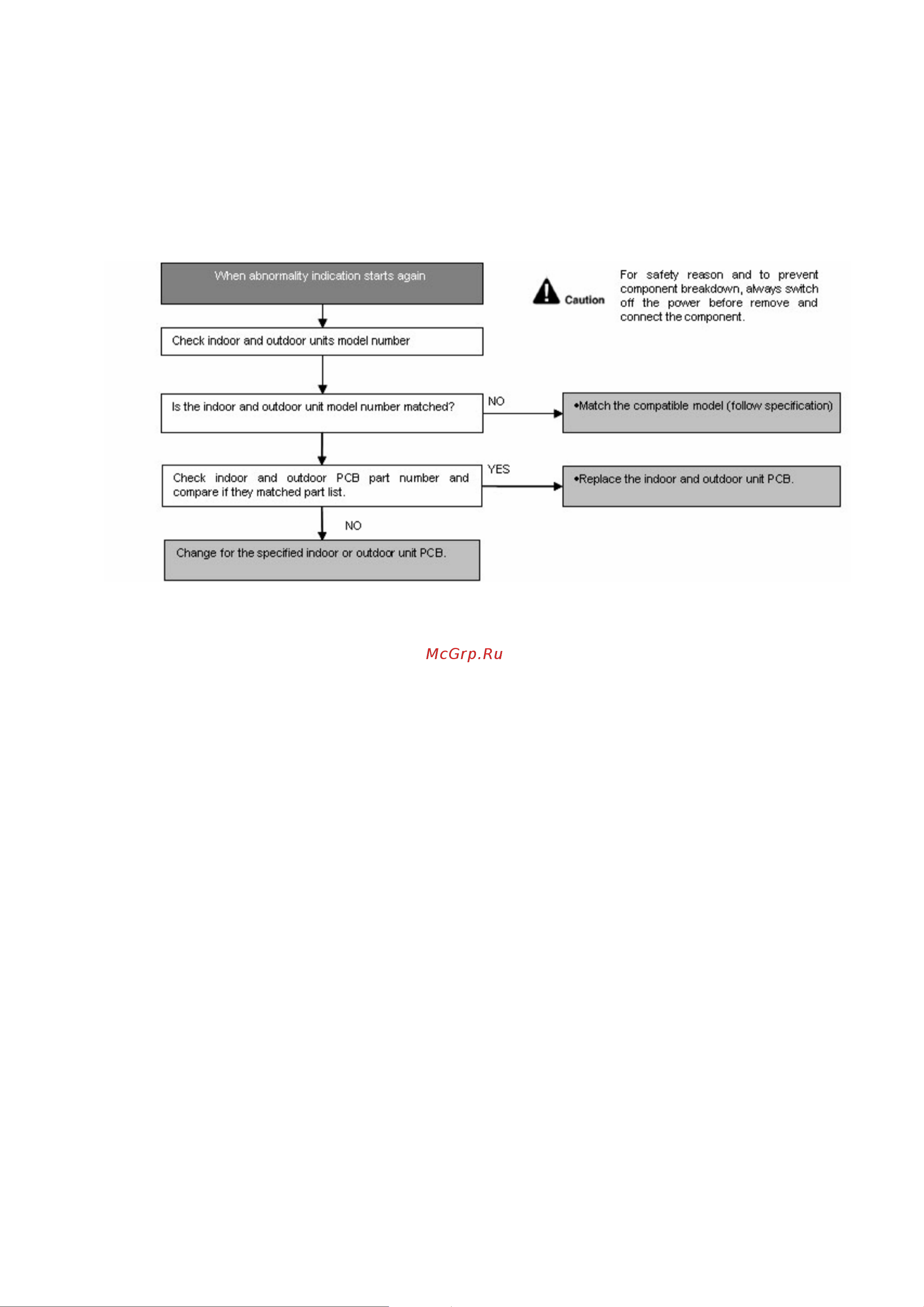

Troubleshooting
