Panasonic CU-HE12NKE [68/110] H25 e ion air purifying system abnormal

15.4.9 H25 (e-ion Air Purifying System Abnormal)

Malfunction Decision Conditions

• During standby of cooling and heating operation, e-ion breakdown occurs and air conditioner stops operation.

Malfunction Caused

• Faulty indoor main PCB.

• Faulty indoor e-ion power module.

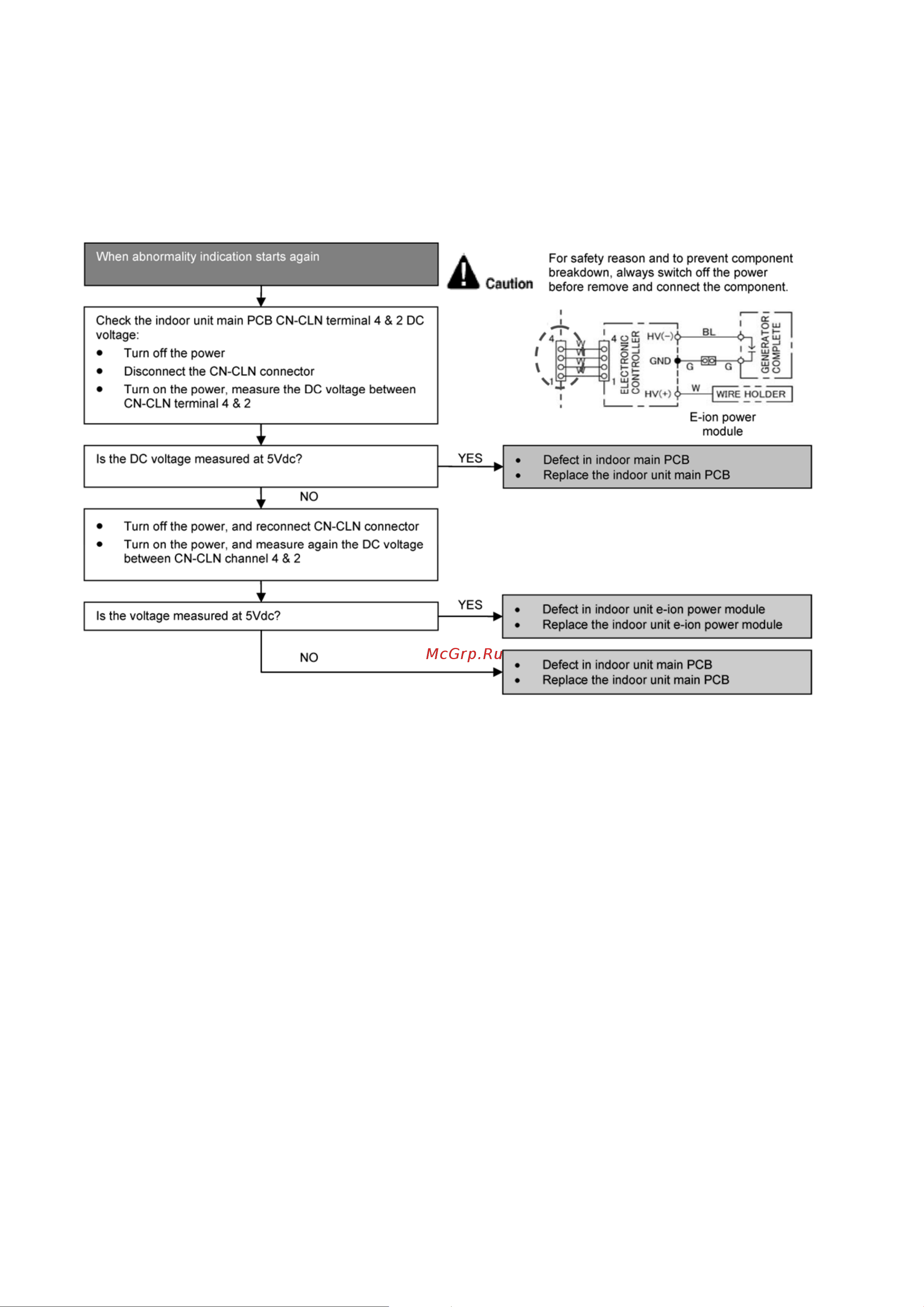

Troubleshooting
