Panasonic CU-HE12NKE [88/110] 9 f98 input over current detection

15.4.29 F98 (Input Over Current Detection)

Malfunction Decision Conditions

• During operation of cooling and heating, when an input over-current (16.8A) is detected by checking the input

current value being detected by current transformer (CT) with the compressor running.

Malfunction Caused

• Over-current due to compressor failure.

• Over-current due to defective outdoor unit PCB.

• Over-current due to defective inverter main circuit electrolytic capacitor.

• Over-current due to excessive refrigerant.

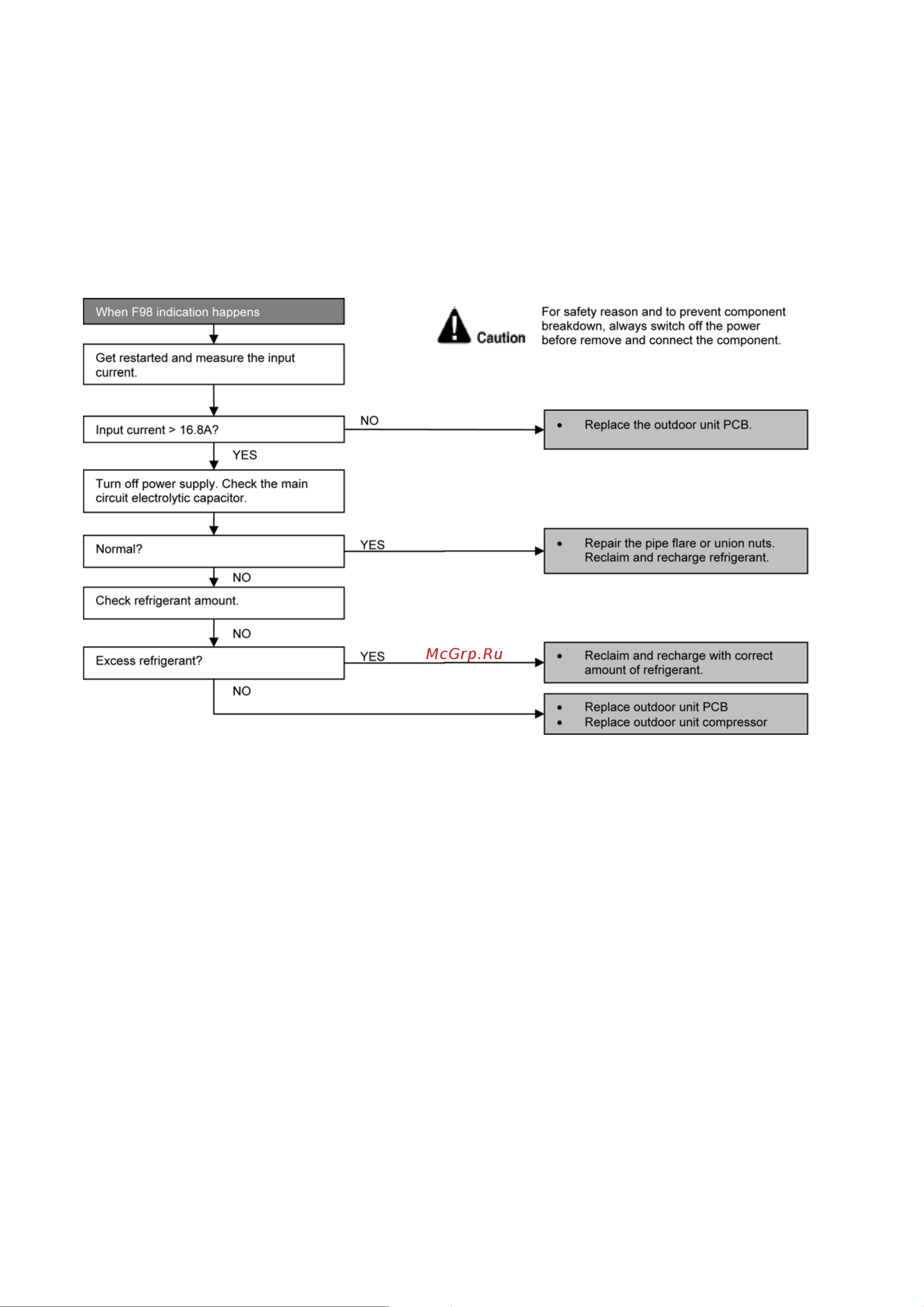

Troubleshooting
