Panasonic CU-HE12NKE [62/110] H14 indoor intake air temperature sensor abnormality

15.4.3 H14 (Indoor Intake Air Temperature Sensor Abnormality)

Malfunction Decision Conditions

• During startup and operation of cooling and heating, the temperatures detected by the indoor intake air

temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

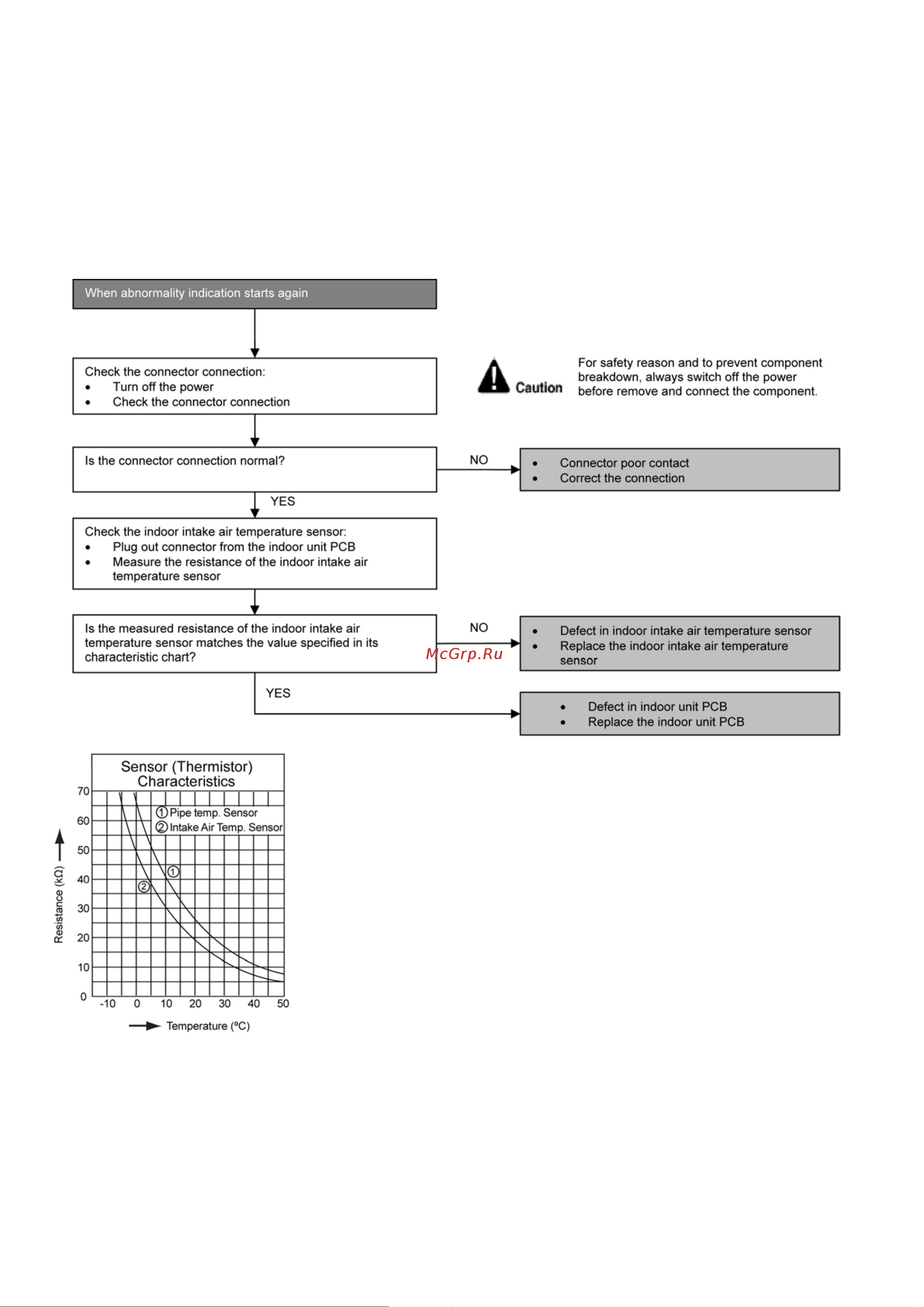

Troubleshooting
