15.4.28 F97 (Compressor Overheating)

Malfunction Decision Conditions

• During operation of cooling and heating, when compressor tank temperature data (112°C) is detected by the

compressor tank temperature sensor.

Malfunction Caused

• Refrigerant shortage (refrigerant leakage).

• 2/3 way valve closed.

• Detection error due to faulty compressor tank temperature sensor.

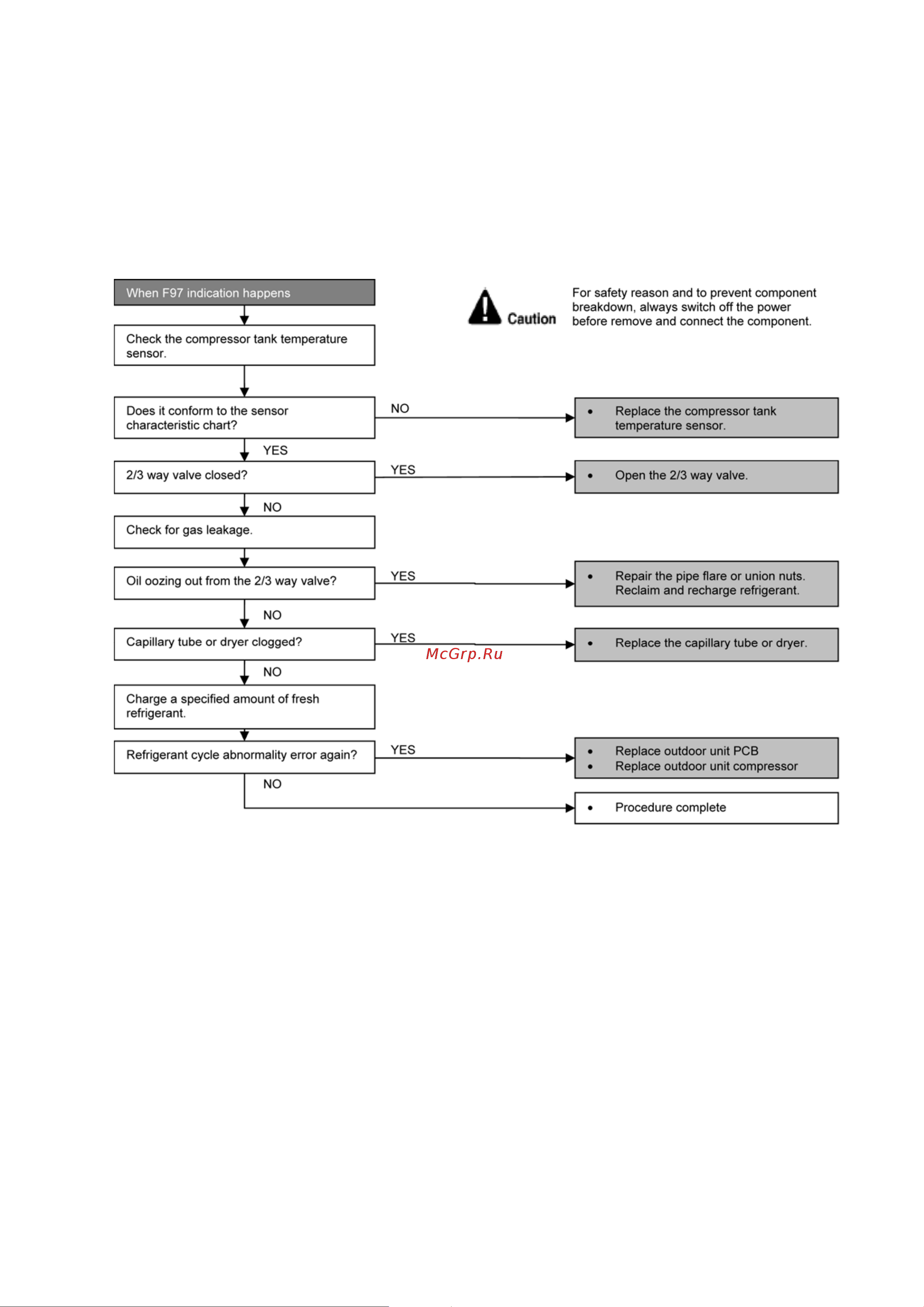

Troubleshooting
