Panasonic CU-HE12NKE [71/110] 2 h30 compressor discharge temperature sensor abnormality

15.4.12 H30 (Compressor Discharge Temperature Sensor Abnormality)

Malfunction Decision Conditions

• During startup and operation of cooling and heating, the temperatures detected by the outdoor discharge pipe

temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

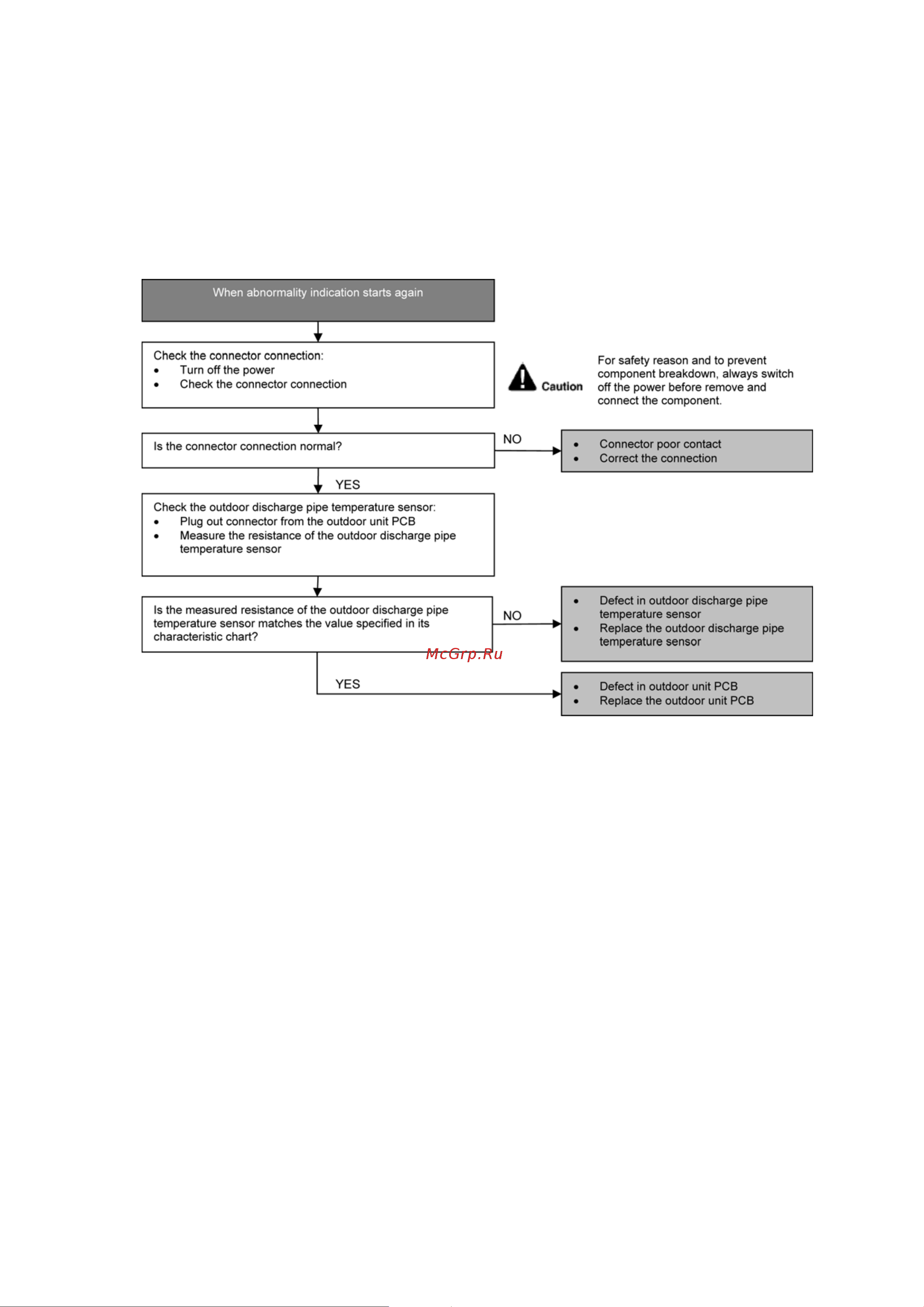

Troubleshooting
