Panasonic CU-HE12NKE Сервис мануал онлайн [97/110] 626712

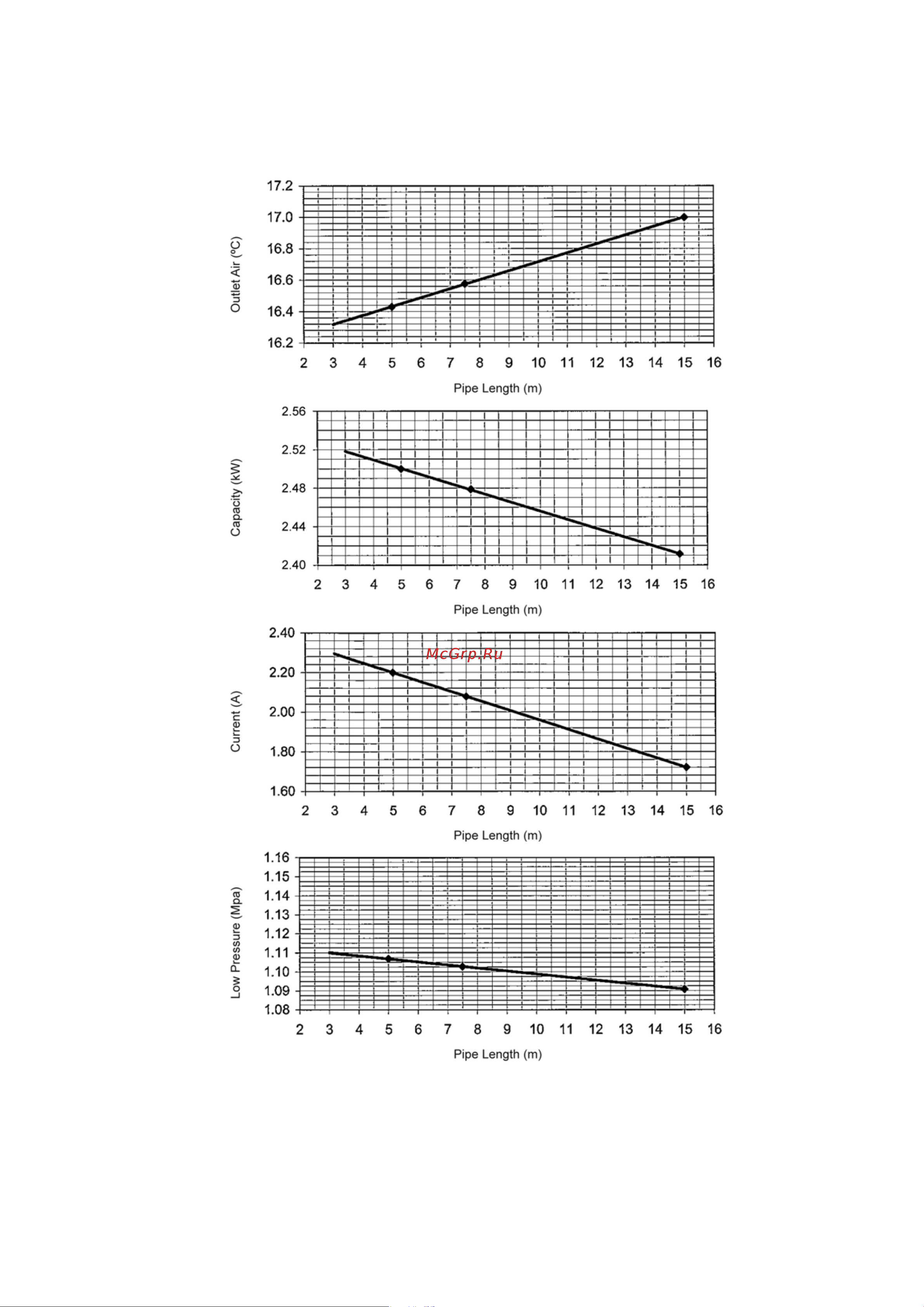

• Piping Length Characteristic

[Condition] Indoor temperature: 27/19°C, 35/-°C

Remote condition: High fan speed, Cool 16°C

Comp. Hz: Rated Fc

Voltage: 230V
