29
AMD X670/B650 Series

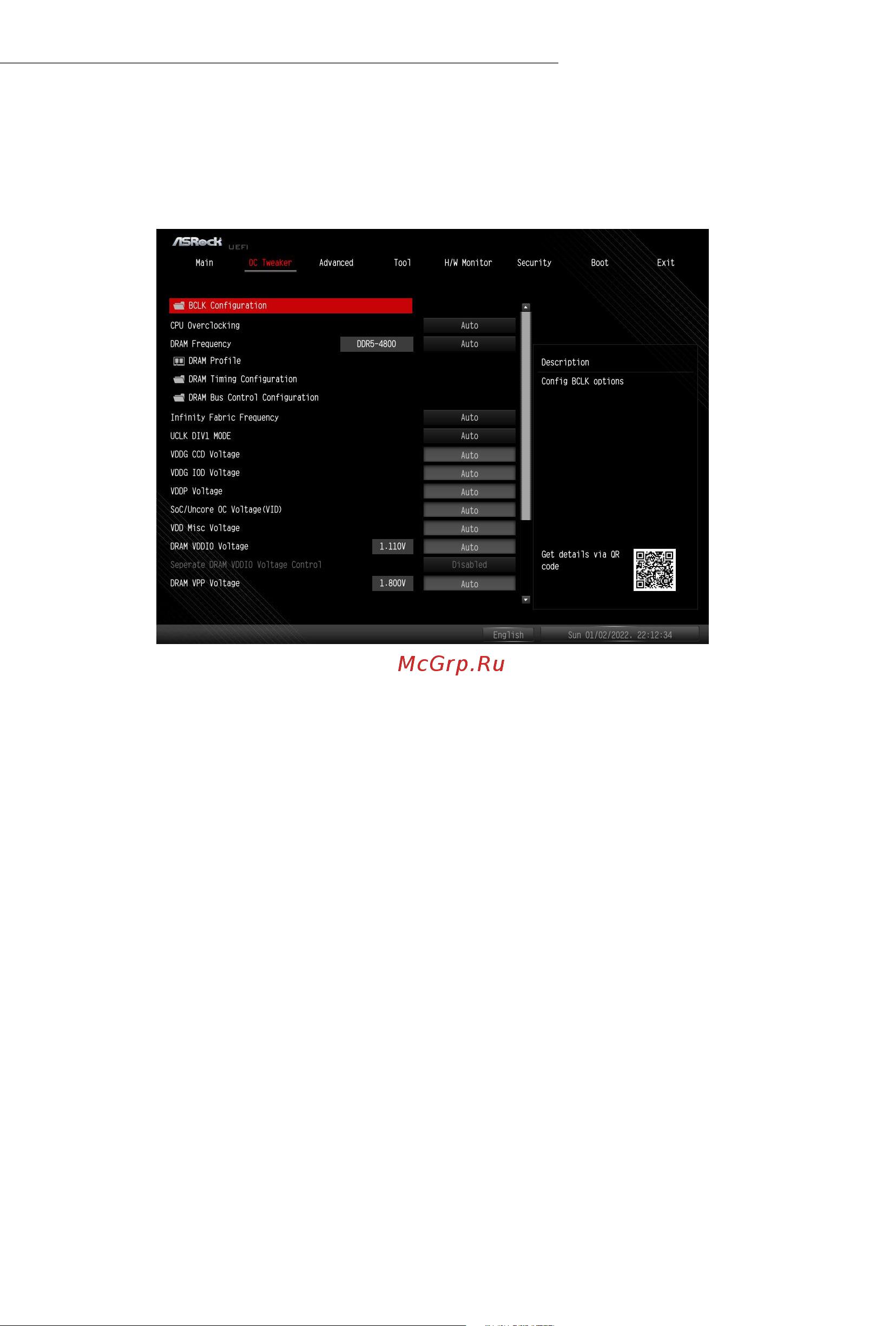

3.3 OC Tweaker Screen
In the OC Tweaker screen, you can set up overclocking features.
BCLK Conguration
Press [Enter] to congure BCLK options.
BCLK Frequency
e CPU speed is determined by the CPU Ratio multiplied with the BCLK. Increasing the
BCLK will increase the internal CPU clock speed but also aect the clock speed of other
components.
BCLK SSC Mode
Allows you to select the BCLK Spread Spectrum Mode.
Conguration options: [Auto] [Disabled] [Down Spreading 0.10%] [Down Spreading
0.25%] [Down Spreading 0.50%] [Center Spreading 0.10%] [Center Spreading 0.25%]
[Center Spreading 0.50%]
BCLK Frequency F0D1
e CPU speed is determined by the CPU Ratio multiplied with the BCLK. Increasing the
BCLK will increase the internal CPU clock speed but also aect the clock speed of other
components.
