47
AMD X670/B650 Series

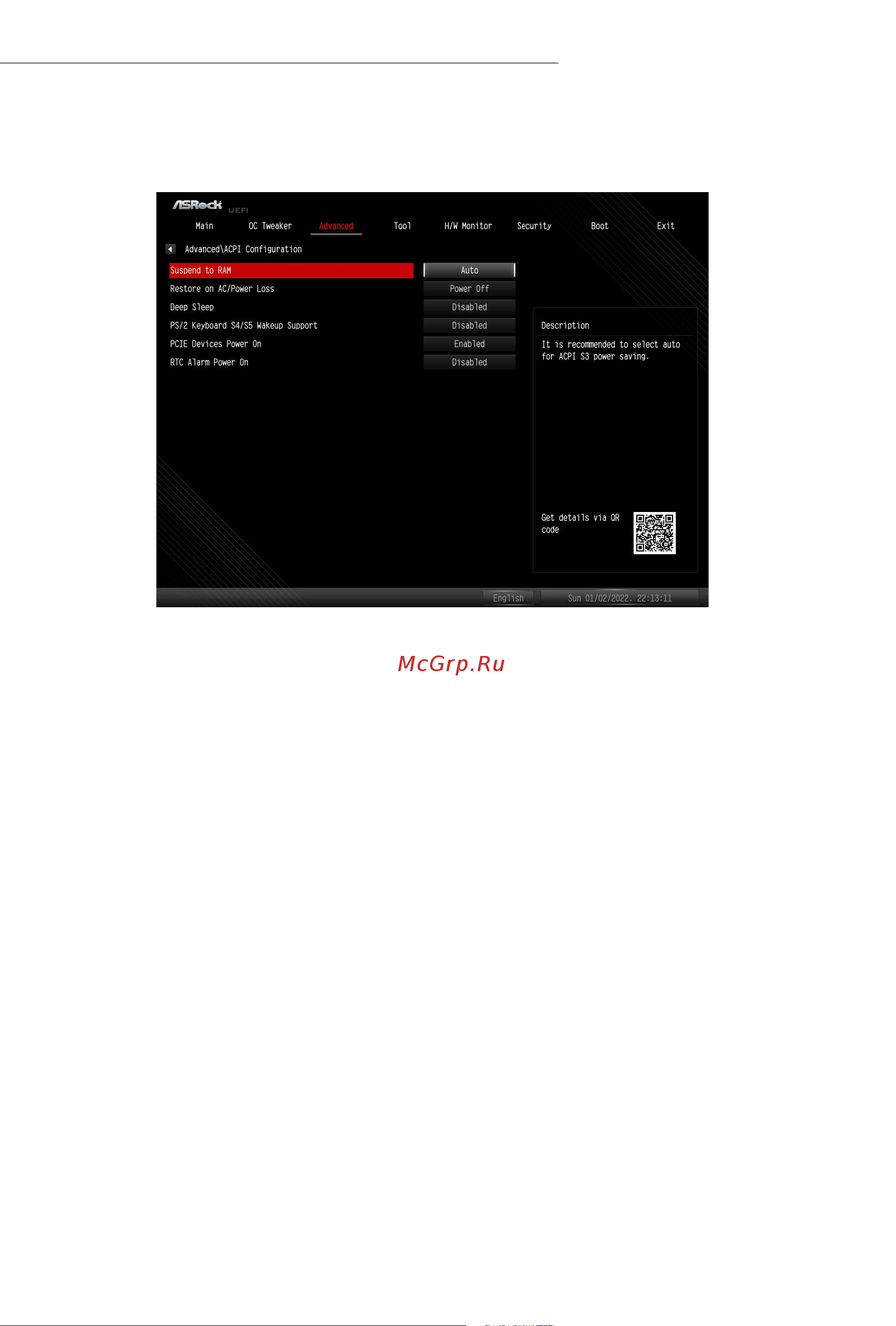

3.4.5 ACPI Conguration
Suspend to RAM
It is recommended to select auto for ACPI S3 power saving.
Conguration options: [Disabled] [Auto]
Restore on AC/Power Loss
Allows you to select the power state aer a power failure.
[Power O] Select this item and the power will remain o when the power recovers.
[Power On] Select this item and the system will start to boot up when the power
recovers.
Conguration options: [Power On] [Power O]
Deep Sleep
Allows you to congure deep sleep mode for power saving when the computer is
shut down. We recommend disabling Deep Sleep for better system compatibility
and stability.
Conguration options: [Disabled] [Enabled in S5] [Enabled in S4 & S5]
PS/2 Keyboard S4/S5 Wakeup Support
e item allows the system to be waked up by a PS/2 Keyboard in S4/S5.
