68

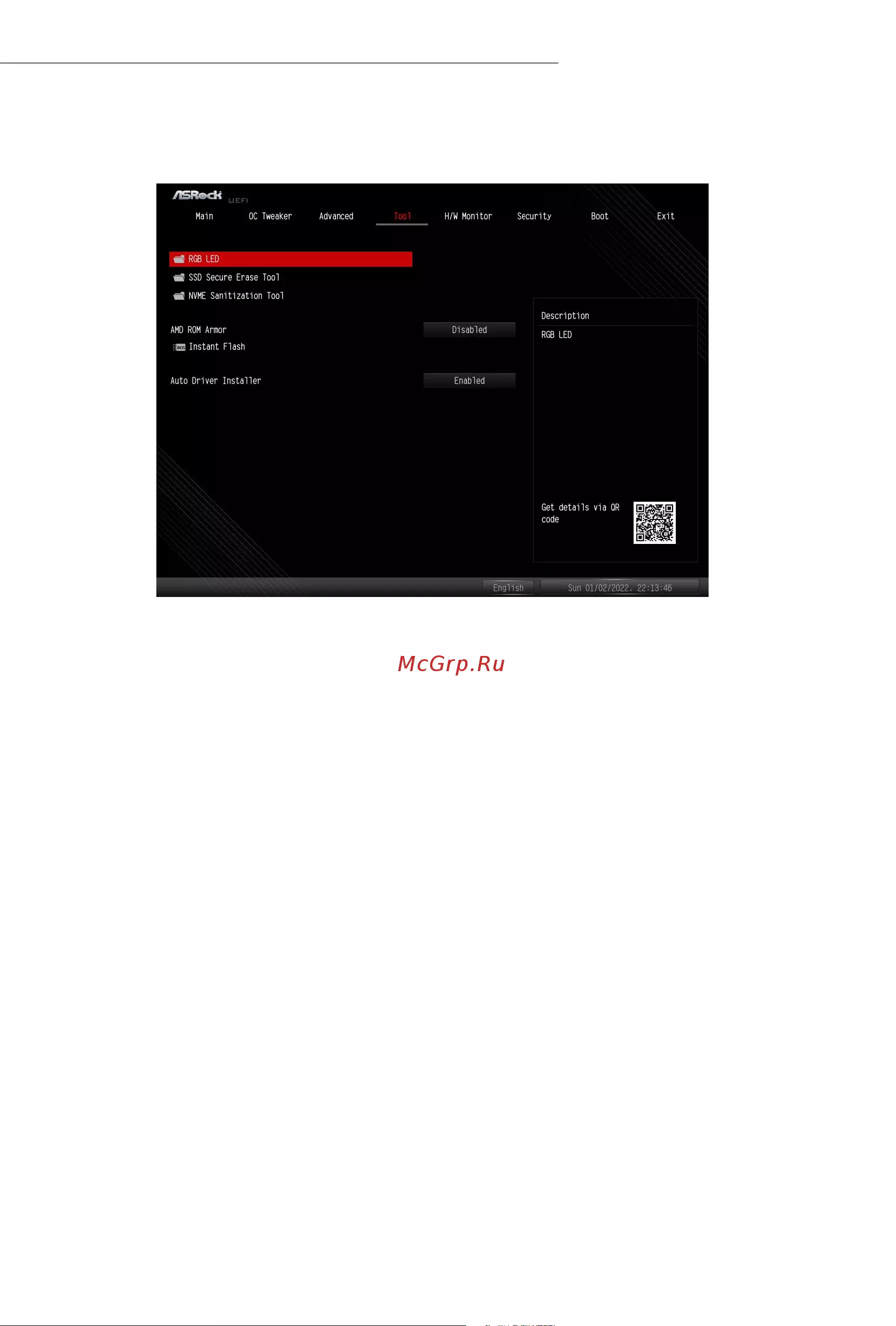

AMD ROM Armor
Allows you to enable or diable AMD ROM Armor support.
Instant Flash
Allows you to save UEFI les in your USB storage device and run Instant Flash to
update your UEFI.
Auto Driver Installer
Allows you to download and install all necessary drivers automatically.
[Enabled] Select this item to enable the Auto Driver Installer tool. When it is
enabled, aer entering to Windows with available Internet access, the Auto Driver
Installer tool will appear automatically.
[Disabled] Select this item to disable the Auto Driver Installer tool.
