Chapter 2. Hardware Setup
13
7. (Optional) If you wish to record your live stream, connect a USB storage
device and refer to Recording Live-stream Video (External Storage) on
page 58 for more information. Or, you can connect a UAC audio interface
(e.g. USB mic).
8. Connect an earphone to listen to and monitor sound outputs.
9. Connect your iPad or Chromebook to the iPad link port for control
purpose and power supply. Refer to Connecting iPad on page 14 and
Connecting Chromebook, page 17 for more information.

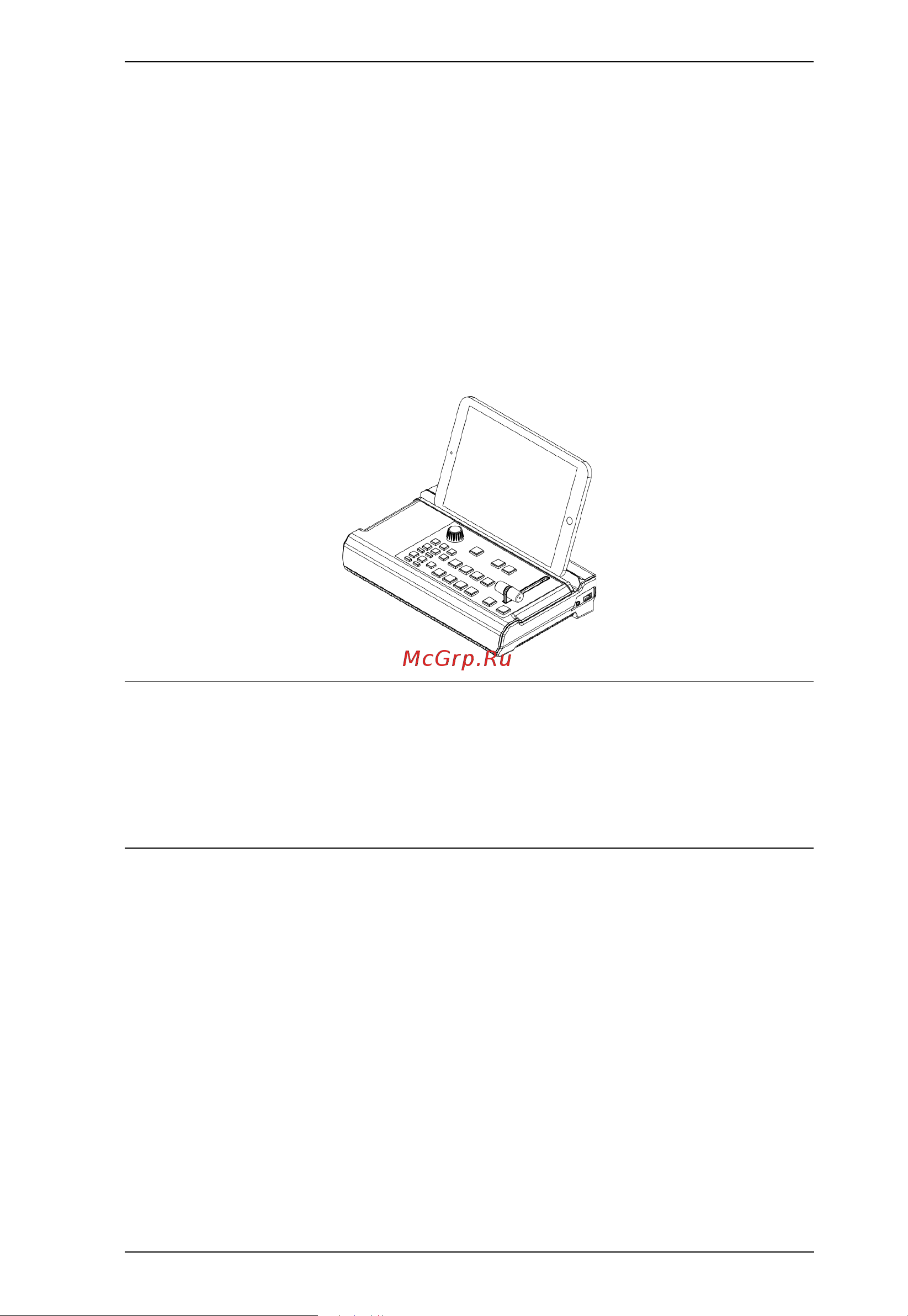

10. (Optional) Place your iPad onto the iPad stand as shown in the diagram
below
3
.
Note: 1. The HDMI sources must be unencrypted.
2. Use the connected iPad or Android tablet to configure further network
settings for livestreaming.
3. iPad placed on the unit is recommended for viewing only. Hand
holding your iPad is still recommended for control.
