StreamLIVE™ PRO User Manual
24
Side Menu

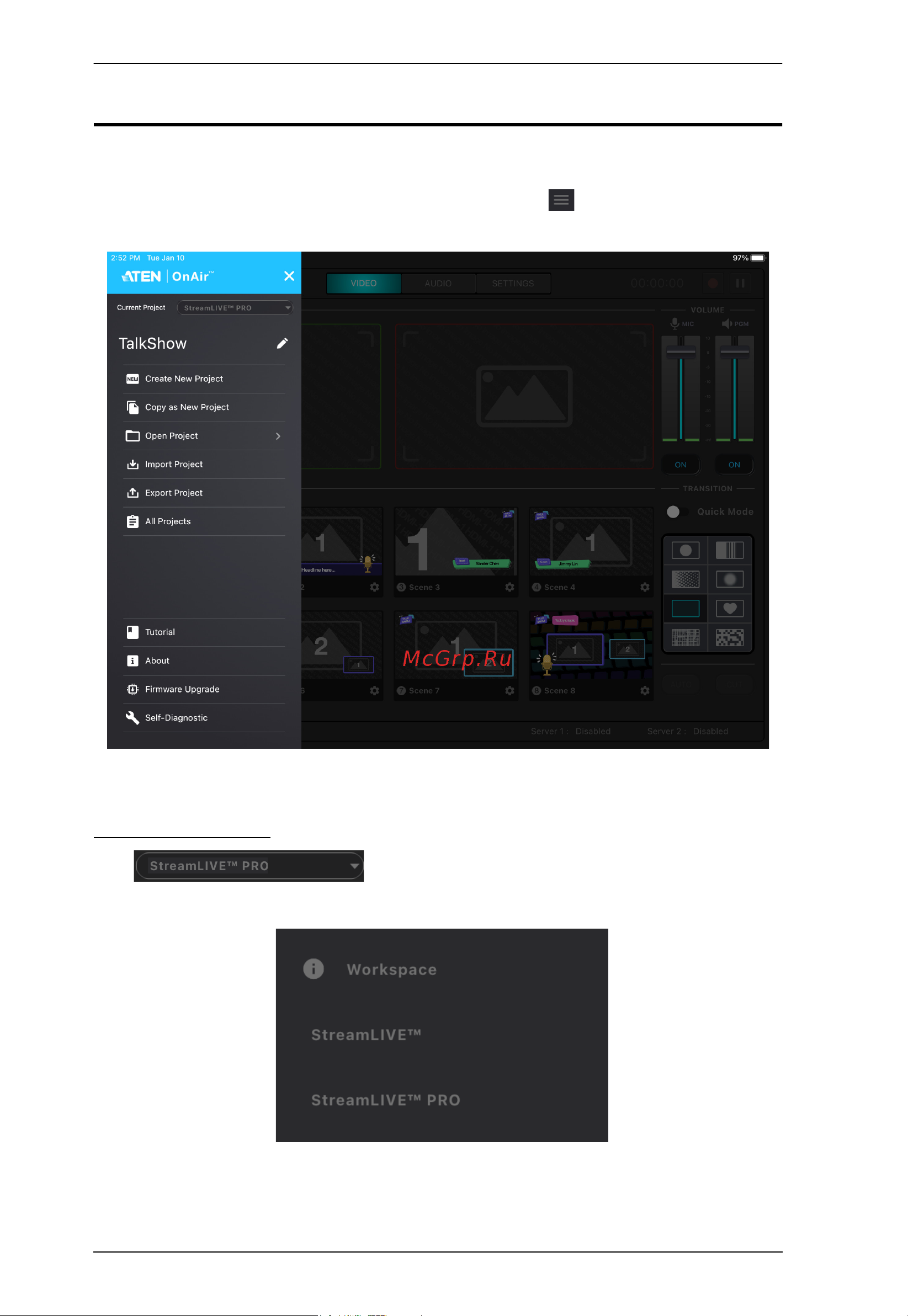

A side menu is available for project management, tutorial, app information and
self-diagnostic function. For the side menu, tap the icon on the top left
corner.
Current Project
Tap to select your model between StreamLIVE™
or StreamLIVE™ PRO:
