StreamLIVE™ PRO User Manual
8

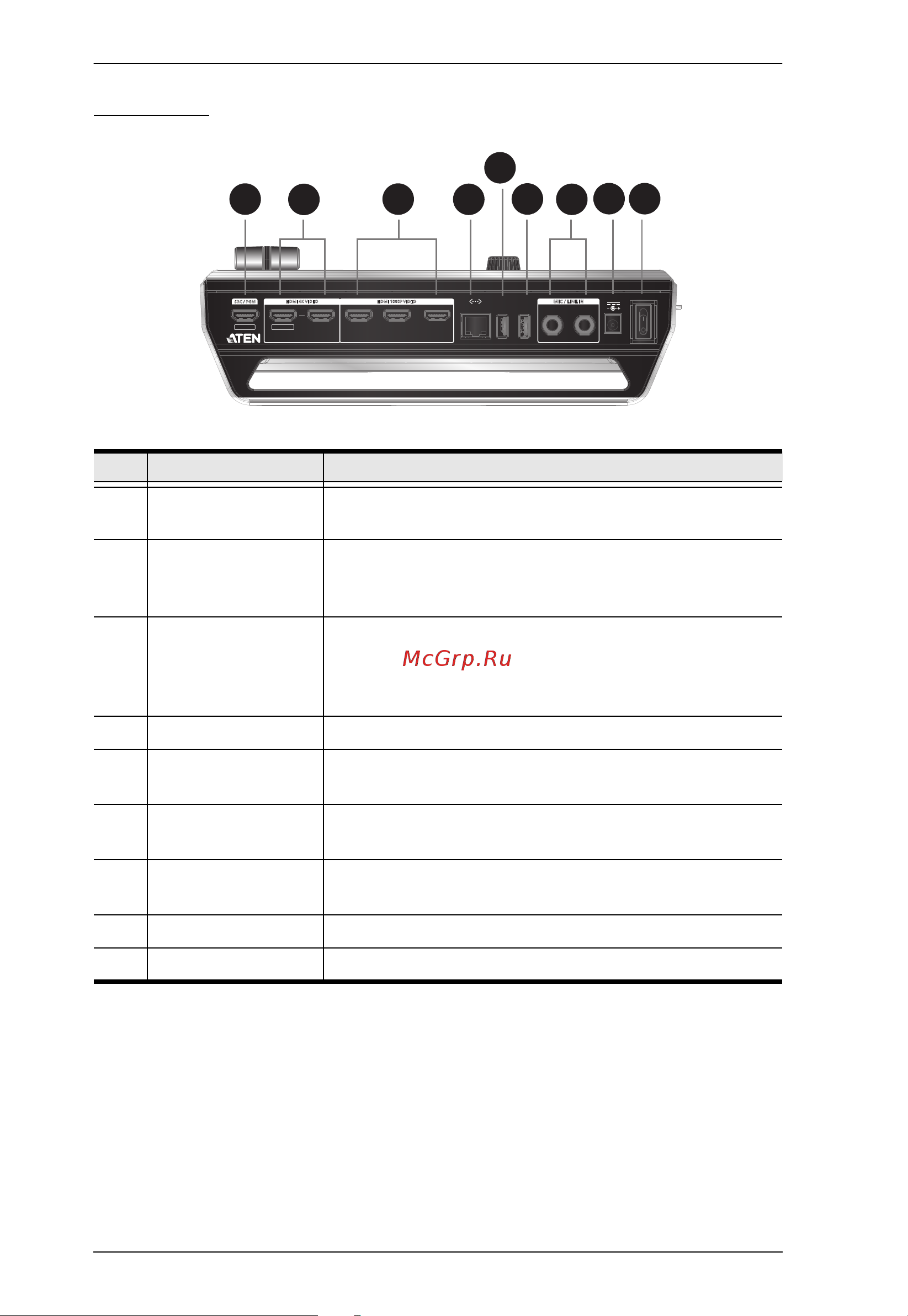

Rear View
No. Component Description
1 SRC / PGM output
port
Programmed (PGM) video output.
2 4K HDMI loop out
port/4K HDMI 1
input port
An 4K HDMI 1 input source and a 4K HDMI loop out.
3 FHD HDMI 2 input
port/HDMI 3 input
port/HDMI 4 input
port
HDMI 1080P video input that can take HDMI 1080P
video input 2, 3, or 4. To select input 2, 3, or 4, go to
Media on page 40.
4 Ethernet port For Internet connection.
5 USB 3.1 Gen1 Type-
A port (storage only)
For livestream recording.
6 USB 3.1 Gen1 Type-
A port
For firmware upgrade.
7 MIC in/Line in audio
ports
Connect MIC or audio sources for additional audio
effects.
8 power jack Powers the unit.
9 power switch Switch the power on the unit.
JOQVU!2JOQVU!3
PV UQV UMP PQ!PVU
IE N J2191Q WJEFPIE N J5L WJEFP
TSD 0QH N
BV EJP!2
BV EJP!3
JOQVU!4JOQVU!5
QP X FS
ED23W
VTC
TUP SBHF
N JD0MJOFJO
1
2
4
3
9
6
7
8
5
