StreamLIVE™ PRO User Manual
16

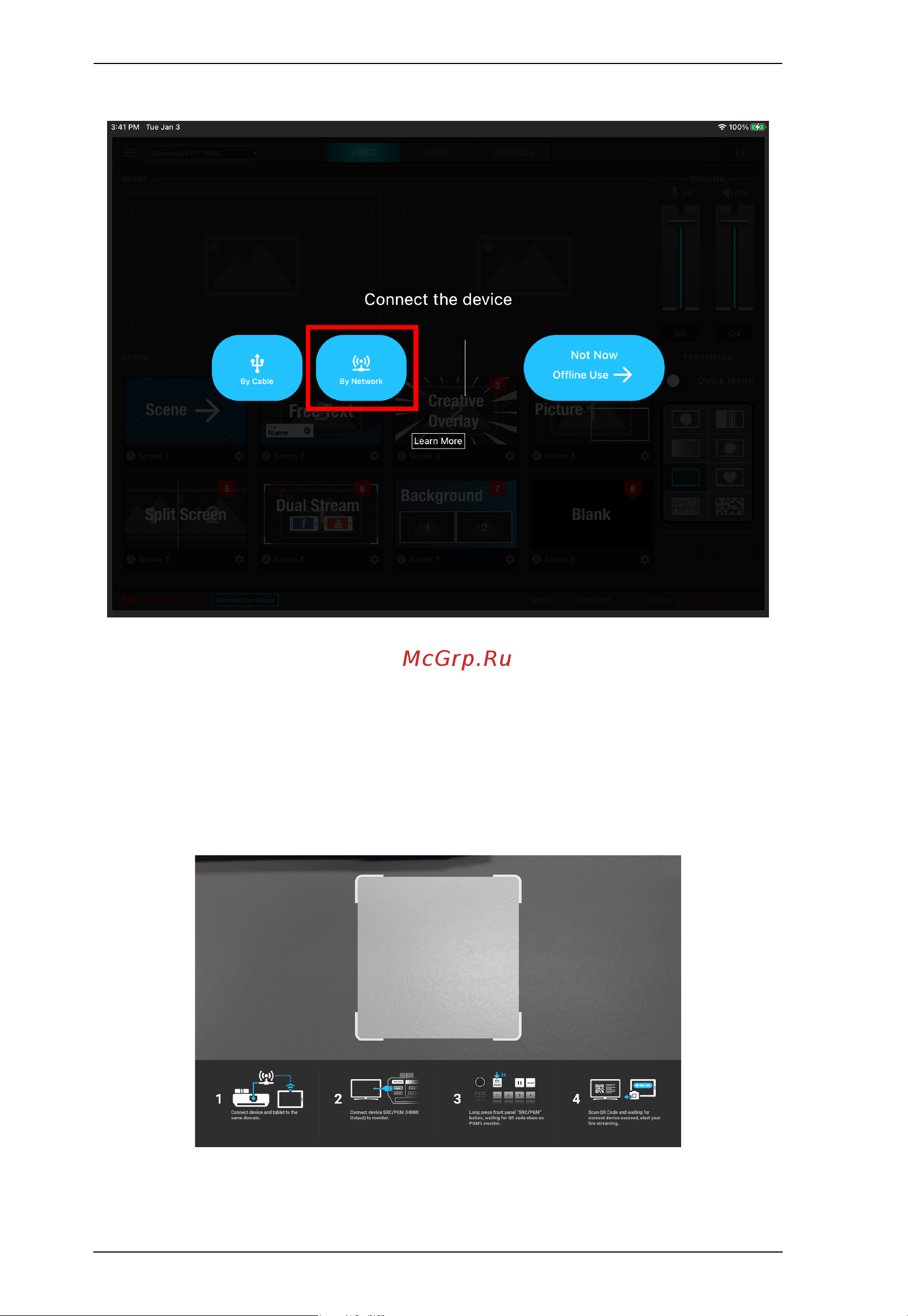

3. Select an option to connect the device to your ATEN OnAir™ Pro app.
a) Tap the device you wish to connect from the available list and then tap
Connect. If no device is found, tap Rescan Device to rescan.
b) Tap Scan QR code to connect the device via QR code. Make sure to
connect a monitor to the SRC / PGM output port and press and hold the
PGM pushbutton for 3 seconds to display a QR code on the monitor.
c) Tap Input Device IP to connect the device via its IP address.
