StreamLIVE™ PRO User Manual
22
Follow the on-screen instruction as it guides you through the basics of using
the ATEN OnAir PRO app with UC9040.

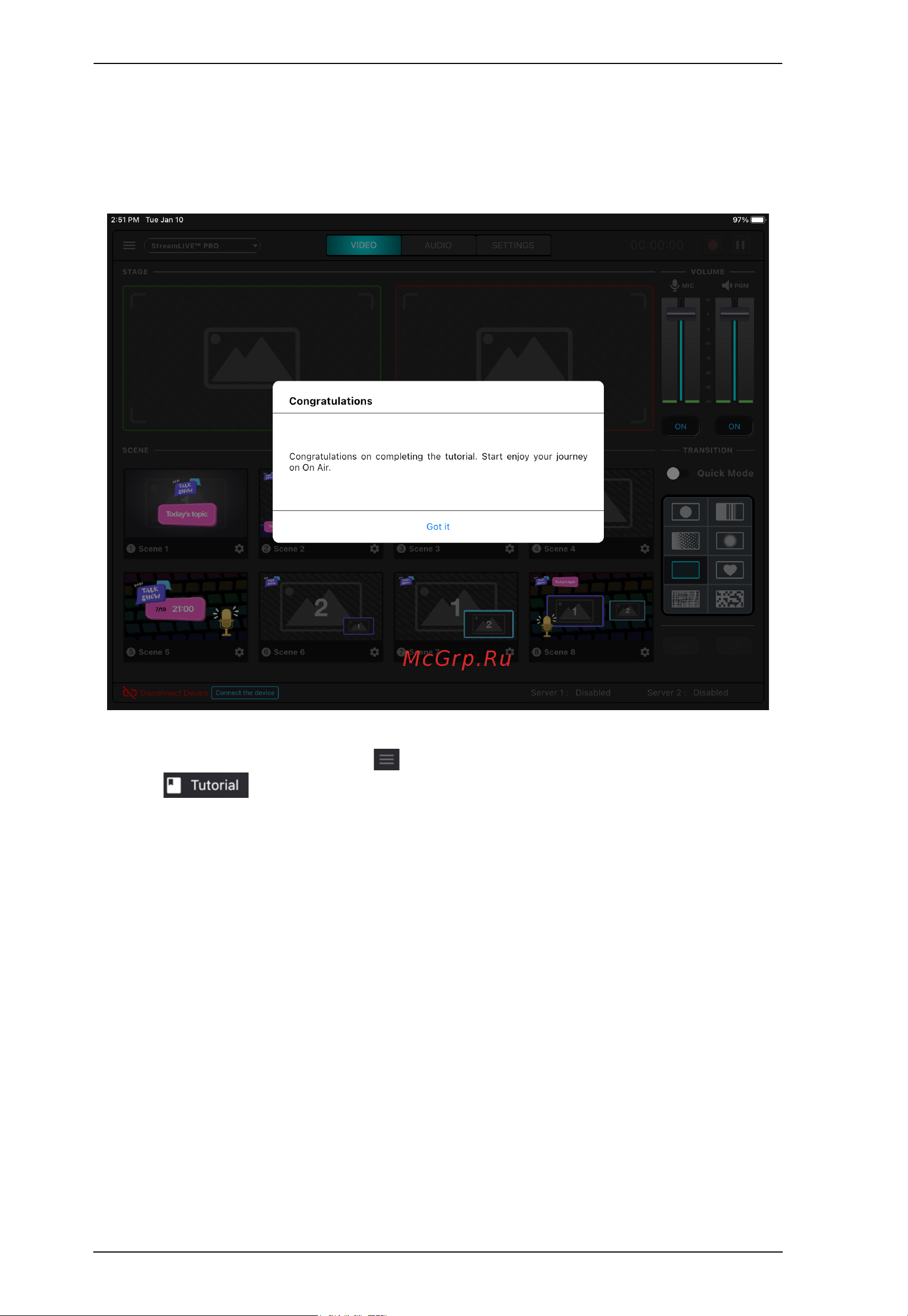

When finished, a message will be shown:
To run the tutorial again, tap the icon on the top left corner for the side menu
and tap .
