PRESONUS S1 Artist 3.0 [270/307] Envelope graphical display

Release (R) This control lets you set the time required to fall back to silence after the key is released, in a range

from 0 ms to 30 seconds.

Delay (△ - Env 2 only) This control lets you specify a length of time (in ms) for the Env to pause before starting

its attack phase after a note is played. This can assist in creating evolving sounds, where cycles of modulation

occur at differing times over the length of a note.

Envelope Graphical Display

Each envelope has a corresponding graphical display that represents the shape created by the settings of its parameters.

There are handles on the corners and slopes of each envelope that you can click and drag, letting you shape the ADSR

envelope and the curve between its points visually. If you wish to lengthen any phase of the envelope beyond the time limits

of the current display, simply drag the point toward the right of the graph, and the time scale adjusts to properly display the

new setting.

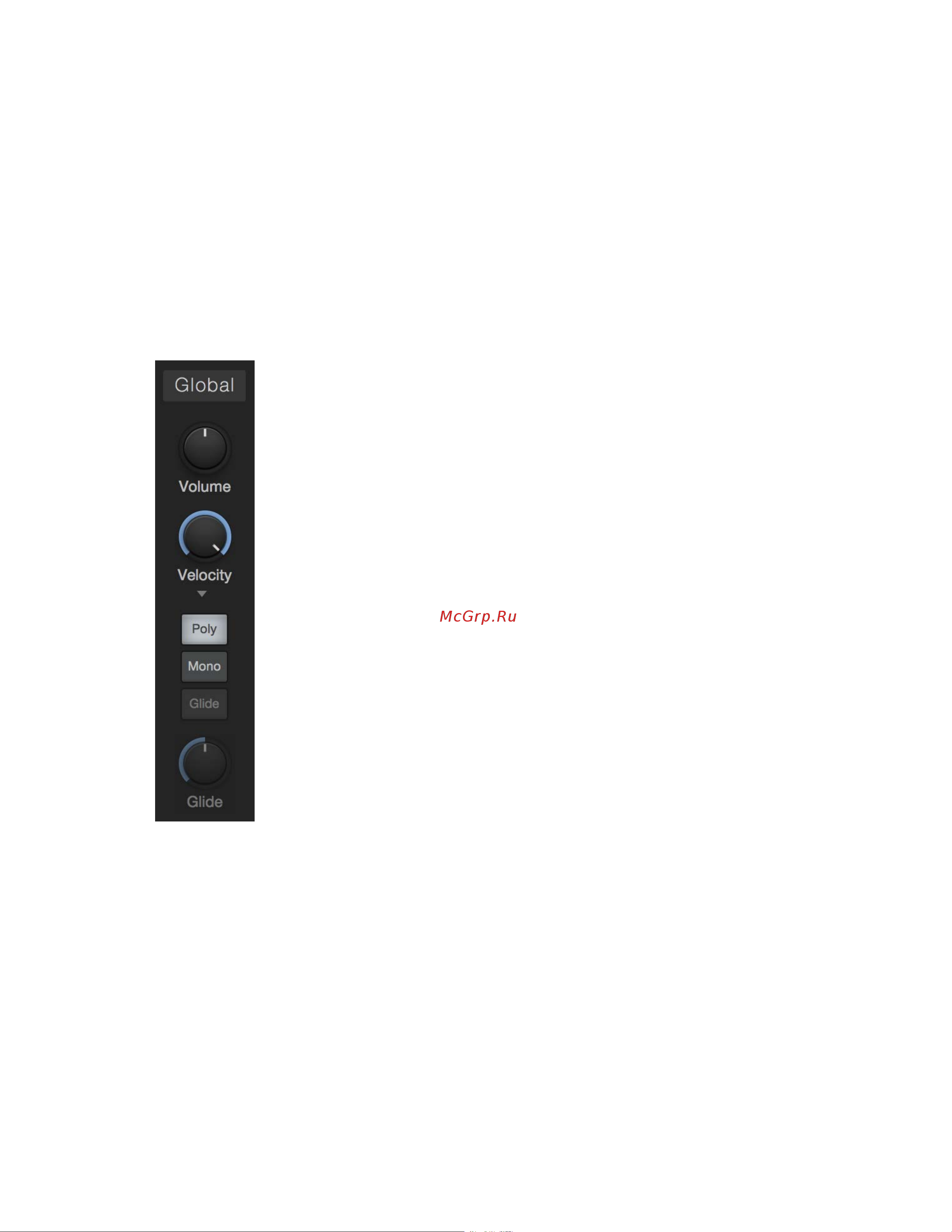

Global Settings

The following Global parameters let you configure Presence XT's overall behavior and capabilities, to meet your needs.

Volume This control lets you set the total output volume, in a range from -∞ dB (silence) to +10.0 dB (ten decibels

above unity gain).

Velocity This control lets you set the degree to which Presence XT's volume is affected by note velocity, from

zero (no velocity sensitivity) to 1.0 (full velocity sensitivity).

Poly, Mono, and Glide Enable Poly mode to allow polyphonic playing (more than one note at a time). Enable

Mono mode to play just one note at a time. When in Mono mode, you can enable Glide to cause the pitch to sweep

smoothly from that of the currently held note to that of the next note, when played legato (one note played while

the previous note is held). The Glide knob lets you set the rate of pitch change over time, from 1 ms to 1 second.

CHAPTER 14│Studio One Reference Manual
