Sony SLV-760HF [10/68] Antenna hookup
![Sony SLV-761HF [10/68] Antenna hookup](/views2/1029785/page10/bga.png)
Getting Started10
IN
OUT
VHF/UHF
IN
OUT
VHF/UHF
Step 3: Hookups (continued)

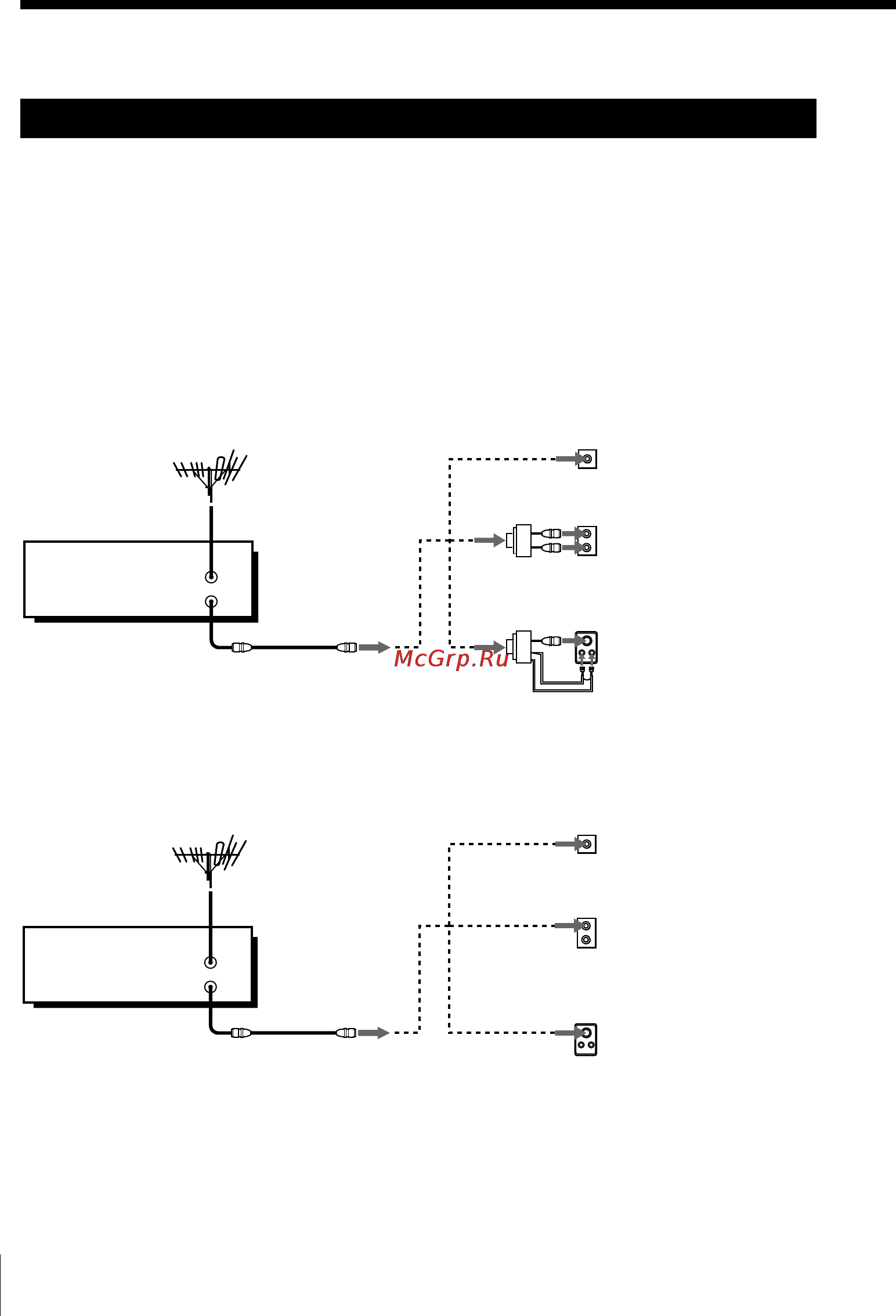

Antenna hookup
Make the following connections if you’re using an antenna (if you don’t
have cable TV).
A Use this hookup if you’re using:
• VHF/UHF antenna (you get channels 2–13 and channels 14 and higher)
• UHF-only antenna (you get channels 14 and higher)
• Separate VHF and UHF antennas
Pages 10 to 12
B Use this hookup if you’re using a VHF-only antenna (you get
channels 2–13 only)
Hookup 1
or
or
VHF/UHF
Match the type of
connector on your
TV: A, B, or C.
A
Rear of TV
B
VHF
C
UHF
VHF
A
Rear of TV
VHF/UHF
or
or
Match the type of
connector on your
TV: A, B, or C.
B
For connector types
B and C, no UHF
connection is
required.
C
UHF
VHF
If you cannot connect your antenna cable to the VCR directly
If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external
antenna connector (not supplied) so that you can connect the cable to the VHF/UHF
IN connector. If you have separate cables for VHF and UHF antennas, you should use
a U/V band mixer (not supplied). For details, see page 57.
VCR
VCR
UHF
VHF
UHF
