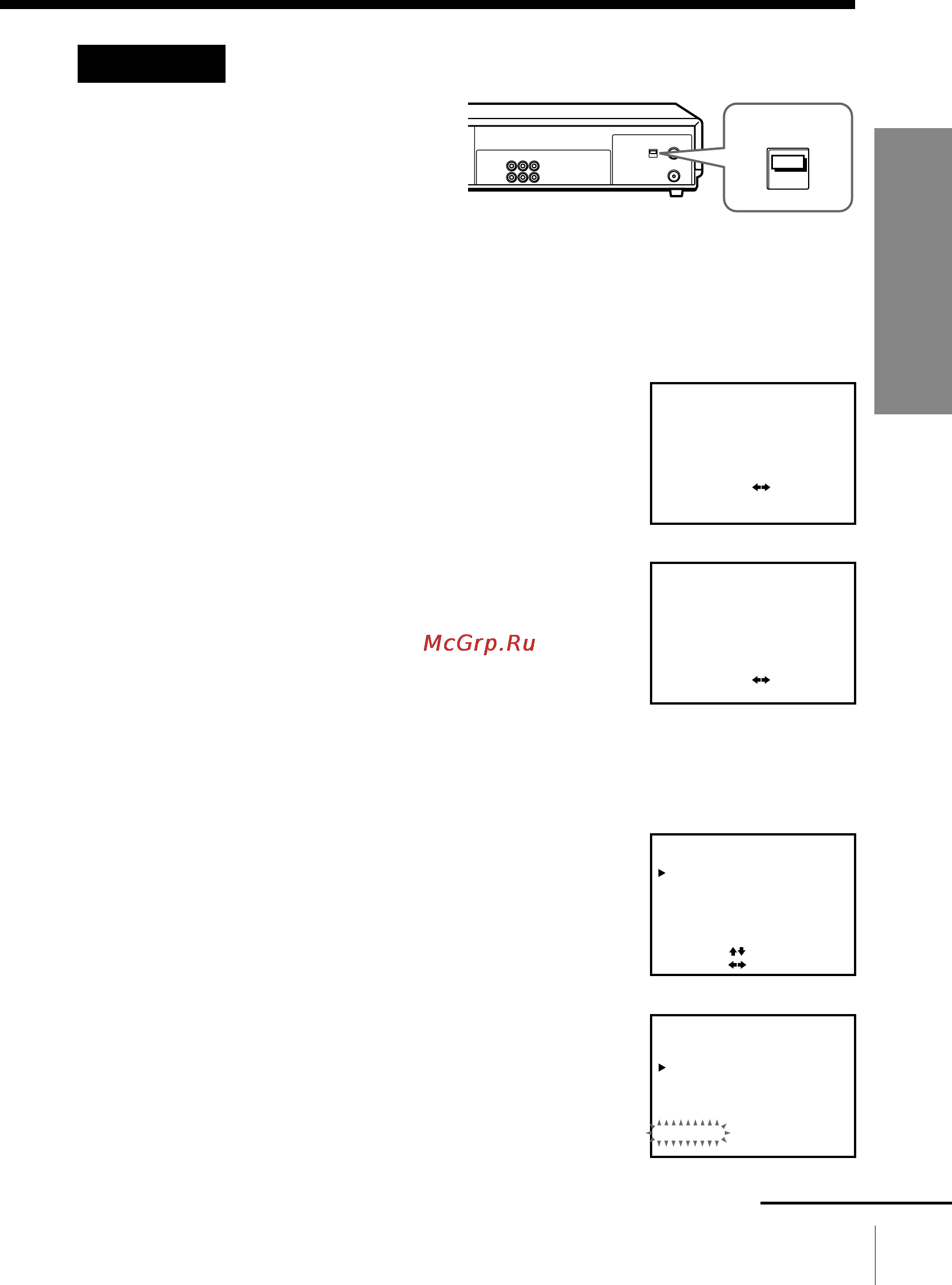

Hookup 3: VCR setup
1 Set the RF UNIT switch
to CH 3 or CH 4,
whichever channel is not
used in your area. If both
are used, set the switch to
either channel.
For details, see page 56. If you made A/V connections (pages 8 and 9),
you can skip this step.
2 Turn on your cable box.
3 Set the clock. For details, see page 23.
1 Press MENU and select CLOCK SET.
2 Select AUTO, then press EXECUTE.
3 Set FULL AUTO to YES, then press EXECUTE.
4 Preset the channels into the VCR. For details, see page 29.
1 Press MENU and select TUNER PRESET.
2 Set ANTENNA/CABLE to CABLE.
3 Select AUTO PRESET and press EXECUTE.
RF UNIT
CH3
CH4
CLOCK SET
SELECT
SET
QUIT
AUTO
•
MANUAL
:[ ]
:[ ]
:[ ]
EXECUTE
MENU
AUTO CLOCK SET
FULL
•
AUTO YES
SET
END
[]:
[]: EXECUTE
NO
TUNER PRESET
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
CABLE
ON
•
•
ADD
SELECT
SET
:
:
AFT
FINE TUNING
•
OFF
ERASE
[]
[]
ANT
CH1
TUNER PRESET
ANTENNA / CABLE
AUTO PRESET
MANUAL SET
CABLE
ON
•
•
ADD
Please wait
AFT
FINE TUNING
•
OFF
ERASE
ANT
CH1
continued
