Sony SLV-760HF [4/68] Unpacking

Getting Started4

• Remote commander

• Size AA (R6) batteries

• Audio/video cable (3-phono to

3-phono)

• 75-ohm coaxial cable with F-type

connectors

Getting Started

Step 1

Unpacking

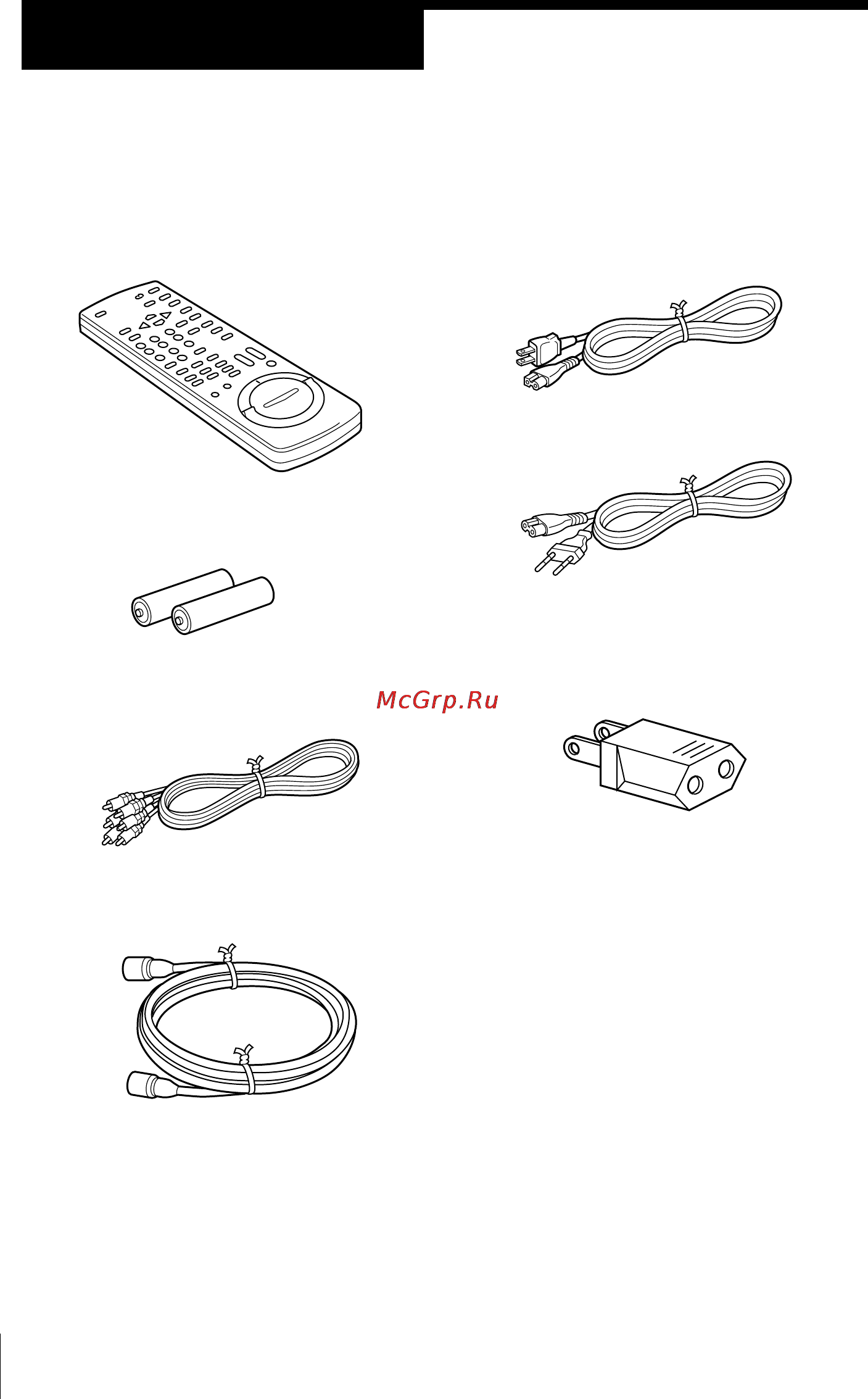

Check that you have received the following items with the VCR:

• AC power cord

• Plug adaptor (SLV-760HF MJ/

760HF PX)

If the plug supplied with your VCR does not

fit your power outlet, attach the supplied

adaptor to the plug.

(SLV-760HF/761HF)

(SLV-760HF MJ/760HF PX)

Содержание

Operating instructions 1
Owner s record 1
Slv 760hf slv 760hf mj slv 760hf px slv 761hf 1
Video cassette recorder 1
Caution 2
Caution slv 760hf 761hf 2
For customers in the usa slv 760hf 760hf mj 760hf px 761hf 2
Information 2
Installing 2
Introduction 2
Precautions 2
Safety 2
To prevent fire or shock hazard do not expose the unit to rain or moisture 2
Warning 2
Additional information 3
Additional operations 3
Basic operations 3
Getting started 3
Table of contents 3
Step 1 4
Unpacking 4
Inserting the batteries 5
Setting up the remote commander 5
Step 2 5
Using the remote commander 5
Code numbers of controllable tvs if more than one code number is listed try entering them one at a time until you find the one that works with your tv 6
Controlling other tvs with the remote commander 6
Hold down power and enter your tv s code number s using the number buttons then release power 6
Now you can use the power vol ch and tv vtr buttons to control your tv you can also use the buttons marked with a dot to control a sony tv to control the vcr reset tv vtr to vtr 6
Set tv vtr at the top of the remote commander to tv 6
Step 2 setting up the remote commander continued 6
The remote commander is preprogrammed to control non sony tvs if your tv is listed in the table below set the appropriate manufacturer s code number 6
Hookups 7
Selecting the best hookup option 7
Step 3 7
Audio video a v hookup 8
Step 3 hookups continued 8
A v hookup vcr setup 9
After you ve connected your tv and completed antenna or cable hookup use the following procedure to set up the vcr 9
Caution connections between the vcr s vhf uhf connector and the antenna terminals of the tv receiver should be made only as shown in the following instructions failure to do so may result in operation that violates the regulations of the federal communications commission regarding the use and operation of rf devices never connect the output of the vcr to an antenna or make simultaneous parallel antenna and vcr connections at the antenna terminals of your receiver 9
For details see page 53 9
Getting started 9
Note to catv system installer this reminder is provided to call the catv system installer s attention to article 820 40 of the nec that provides guidelines for proper grounding and in particular specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical 9
Press menu and select advanced options set auto ant sel to off and press execute 9
A use this hookup if you re using vhf uhf antenna you get channels 2 13 and channels 14 and higher uhf only antenna you get channels 14 and higher separate vhf and uhf antennas 10
Antenna hookup 10
B use this hookup if you re using a vhf only antenna you get channels 2 13 only 10
Hookup 1 10
Make the following connections if you re using an antenna if you don t have cable tv 10
Pages 10 to 12 10
Step 3 hookups continued 10
Auto manual 11
Clock set 11
Execute menu 11
For details see page 56 if you made a v connections pages 8 and 9 you can skip this step 11
Getting started 11
Hookup 1 vcr setup 11
Preset the channels into the vcr for details see page 29 11
Select set quit 11
Set the clock for details see page 23 11
Set the rf unit switch to ch 3 or ch 4 whichever channel is not used in your area if both are used set the switch to either channel 11
Hookup 1 vcr plus channel setup 12
Step 3 hookups continued 12
Cable box with many scrambled channels 13
Getting started 13
Hookup 2 13
Hookup 4 13
Pages 13 to 15 13
Pages 19 to 21 13
Recommended use use this hookup if your cable system scrambles all or most channels 13
What you can do with this hookup record any channel by selecting the channel on the cable box 13
What you can t do record with the cable box off record one channel while watching another channel 13
For details see page 56 if you made a v connections pages 8 and 9 you can skip this step 14
Hookup 2 vcr setup 14
Preset the channels into the vcr for details see page 29 14
Set the clock for details see page 23 14
Set the rf unit switch to ch 3 or ch 4 whichever channel is not used in your area if both are used set the switch to either channel 14
Step 3 hookups continued 14
Turn on your cable box 14
Hookup 2 15
Vcr plus channel setup 15
Hookup 3 16
No cable box or cable box with only a few scrambled channels 16
Pages 16 to 18 16
Recommended use use this hookup if you do not have a cable box also use this hookup if your cable system scrambles only a few channels 16
Step 3 hookups continued 16
What you can do with this hookup record any unscrambled channel by selecting the channel on the vcr 16
What you can t do record scrambled channels that require a cable box 16
For details see page 56 if you made a v connections pages 8 and 9 you can skip this step 17
Getting started 17
Hookup 3 vcr setup 17
Preset the channels into the vcr for details see page 29 17
Set the clock for details see page 23 17
Set the rf unit switch to ch 3 or ch 4 whichever channel is not used in your area if both are used set the switch to either channel 17
Turn on your cable box 17
Hookup 3 vcr plus channel setup 18
Step 3 hookups continued 18
Cable box with only a few scrambled channels using an a b switch 19
Getting started 19
Hookup 4 19
Pages 19 to 22 19
Recommended use by using an a b switch not supplied this hookup allows you to record both scrambled and unscrambled channels conveniently 19
What you can do with this hookup record any unscrambled channel by selecting the channel directly on the vcr the a b switch is set to a record any scrambled channel by selecting the channel on the cable box the a b switch is set to b 19
What you can t do record one scrambled channel while watching another channel the a b switch is set to b 19
For details see page 56 if you made a v connections pages 8 and 9 you can skip this step 20
Hookup 4 vcr setup 20
Preset the channels into the vcr for details see page 29 20
Set the a b switch to a 20
Set the clock for details see page 23 20
Set the rf unit switch to ch 3 or ch 4 whichever channel is not used in your area if both are used set the switch to either channel 20
Step 3 hookups continued 20
Getting started 21
Preset the cable box output channel usually 2 3 or 4 for details see page 31 21
Find the vcr plus channel listing in your program guide for details see page 33 22
For scrambled channels enter all the scambled channels you want to record and the cable box output channel usually 2 3 or 4 for details see page 34 22
For unscrambled channels if the channels in the program guide are different from the channels that you actually use on your tv set the channels that are different as follows for details see page 34 22
Hookup 4 vcr plus channel setup 22
Step 3 hookups continued 22
Setting the clock 23
Step 4 23
Using the auto clock set feature 23
Setting the clock continued 24
If the clock is not activated 25
Setting the clock continued 26
Using manual clock set 27
Presetting all receivable channels automatically 29
Presetting channels 29
Presetting channels continued 30
Presetting disabling channels manually 31
If the picture is not clear 32
Presetting channels continued 32
For each channel your vcr receives use the channel line up chart to check that the channel numbers match for example if hbo is listed in the channel line up chart on channel 33 and your vcr receives hbo on channel 5 you need to coordinate these numbers using the following procedure for channels in which the numbers are the same you can skip this procedure 33
Getting started 33
How to set up your vcr setting up your vcr involves coordinating the tv channel number the number you turn to on your tv or vcr to watch a program with the guide channel the number that s assigned to that channel in your program guide to get the guide channel numbers find the channel line up chart in the program guide for your area that features vcr pluscodes it usually looks like the example to the right 33
How vcr plus works whenever you want to record a tv program all you need to do is look up the program s pluscode a number assigned to each program that s published in the tv section of most newspapers cable tv listings and even tv guide magazine then just enter the pluscode of the program you want and the vcr is automatically programmed to record that show it s that simple 33
Sample 33
Setting up vcr plus 33
Setting up vcr plus continued 34
Getting started 35
Repeat steps 2 and 3 for each channel whose numbers don t match 35
When you have set all channels press execute to confirm your channel settings 35
When you ve finished press menu to exit 35
Insert a tape 36
Playing a tape 36
Press play 36
The vcr turns on and starts playing automatically if you insert a tape with its safety tab removed 36
Turn on your tv and set it to the video channel 36
When the tape reaches the end it will rewind automatically 36
Additional tasks 37
Basic operations 37
To display the counter on the tv screen press display 37
To use the time counter at the point on the tape that you want to find later press counter reset the counter in the display window resets to 0h00m00s search for the point afterwards by referring to the counter 37
Insert a tape with its safety tab in place 38
Press input select until a channel number appears in the display window 38
Recording tv programs 38
To record from a cable box turn it on 38
Turn on your tv and set it to the video channel 38
Recording tv programs continued 40
To save a recording to prevent accidental erasure break off the safety tab as illustrated to record on a tape again cover the tab hole with adhesive tape 40
Recording tv programs using vcr plus 41
Basic operations 42
Everyday monday to friday 42
Once a week 42
Only once 42
Press once daily or weekly 42
Press power to turn off the vcr 42
Press tape speed to select sp or ep 42
Recording programs using vcr plus continued 42
The date start and stop times channel number and tape speed appear on the tv screen if the information is not correct press timer clear to cancel the setting 42
The timer indicator on the vcr lights up and the vcr stands by for recording when using a cable box leave it on 42
To enter another setting repeat steps 1 to 4 42
To record 42
To stop recording to stop the vcr while recording press p stop 42
Weekly 42
Before you start check that the vcr clock is set to the correct time turn on your tv and set it to the video channel when using a cable box turn it on insert a tape with its safety tab in place make sure the tape is longer than the total recording time 44
If vcr plus is not available in your area follow the instructions below to set the timer to record programs 44
Press menu and select timer set check 44
Setting the timer manually 44
Basic operations 45
Press cursor to confirm the setting 45
Press execute 45
Press power to turn off the vcr 45
Set the date start and stop times channel number and tape speed 45
The current date n sun sat n mon sat n mon fri n every sat n n every mon n every sun n 1 month later n cycles backward n the current date 45
The cursor z appears at the top of the line to enter another setting move the cursor to the next line and repeat step 2 45
The timer indicator on the vcr lights up and the vcr stands by for recording 45
Tips to set the channel you can also use the ch or number buttons to set the tape speed you can also use the tape speed button 45
To change the indication in reverse order 45
To record from a source connected to the line 1 in or line 2 in jacks press input select to display l1 or l2 in the ch position 45
To record the same program every day or the same day every week press cursor while the date is flashing for details see daily weekly recording below 45
To set each item to correct a setting press cursor to return to that setting and reset 45
When using a cable box leave it on 45
Playing searching at various speeds 46
To resume normal playback press play 47
Recording tv programs using the quick timer 48
Before you start turn on your tv and set it to the video channel 49
Checking changing cancelling timer settings 49
If any timer settings remain turn off the vcr to return to recording standby 49
If you do not need to change the settings press execute then turn off the vcr to return to recording standby 49
If you want to change a setting go on to the next step 49
Press execute 49
Press menu and select timer set check 49
Press power to turn on the vcr 49
To cancel the setting press timer clear 49
To reset it then press cursor repeatedly until the cursor z appears at the top of the line 49
To select the setting you want to change or cancel 49
When the timer settings overlap the program that starts first has priority and the second program starts recording only after the first program has finished if the programs start at the same time the program listed first in the menu has priority 49
Normally this vcr records only the main sound on both hi fi and normal audio tracks to record sap second audio program sound on the normal audio track set normal audio in the advanced options menu to sap the sap indicator lights up for details see page 53 50
Press audio monitor to select the sound you want 50
Recording bilingual programs 50
Recording stereo and bilingual programs 50
Recording stereo programs 50
Selecting the sound during playback 50
This vcr automatically receives and records stereo programs when a stereo program is received the stereo indicator lights up if there is noise in the stereo program set auto stereo in the advanced options menu to off the sound will be recorded in monaural on both hi fi and normal audio tracks but with less noise for details see page 53 50
To select the bilingual sound while recording press audio monitor to select the sound you want 50
How sound is recorded on a video tape 51
The vcr records sound onto two separate tracks hi fi audio is recorded onto the main track along with the picture monaural sound is recorded onto the normal audio track along the edge of the tape 51
About adaptive picture control apc 52
Adjusting the picture 52
Adjusting the tracking 52
Changing menu options 53
Menu choices initial settings are indicated in bold print 53
Press execute to return to the original screen 53
Press menu and select advanced options 53
To select the option to change then press cursor to change the setting 53
Connect line 2 in audio on this vcr to the audio output jacks on the stereo system using the rk c510ks audio cable not supplied 54
Hooking up to a vcr or stereo system 54
How to hook up to a stereo system 54
How to hook up to record on this vcr 54
Before you start editing turn on your tv and set it to the video channel press input select to display l2 in the display window press tape speed on the remote commander to select the tape speed sp or ep 55
Insert a source tape with its safety tab removed into the other playback vcr search for the point to start playback and set it to playback pause 55
Insert a tape with its safety tab in place into this recording vcr search for the point to start recording and press p pause 55
Operation when recording on this vcr 55
Press r rec on this vcr and set it to recording pause 55
To start editing press the p pause buttons on both vcrs at the same time 55
To stop editing press the p stop buttons on both vcrs 55
General setup information 56
Setting the rf unit 56
Attaching a uhf vhf band mixer 57
Attaching the external antenna connector 57
Symptoms caused by contaminated video heads 58
Troubleshooting 58
Additional information 60
General 60
Inputs and outputs 60
Specifications 60
Supplied accessories 60
System 60
Timer section 60
Tuner section 60
Front panel 61
Index to parts and controls 61
Display window 62
Index to parts and controls continued 62
Rear panel 62
Remote commander 63
Index to parts and controls continued 64
Remote commander continued 64
H i j k 65
V w x y z 65
Hookup 1 68
Hookup 2 68
Hookup 3 68
To play a tape 68
To record a program 68
To watch tv 68
Uick reference to using the vcr 68
