Sony SLV-760HF [13/68] Cable box with many scrambled channels

Sony SLV-760HFMJ [13/68] Cable box with many scrambled channels

Getting Started

Pages 13 to 15

Hookup 4

Pages 19 to 21

Hookup 4

Pages 19 to 21

Cable box with many scrambled channels

Recommended use

Use this hookup if your cable system scrambles all or most channels.

What you can do with this hookup

• Record any channel by selecting the channel on the cable box

What you can’t do

• Record with the cable box off

• Record one channel while watching another channel

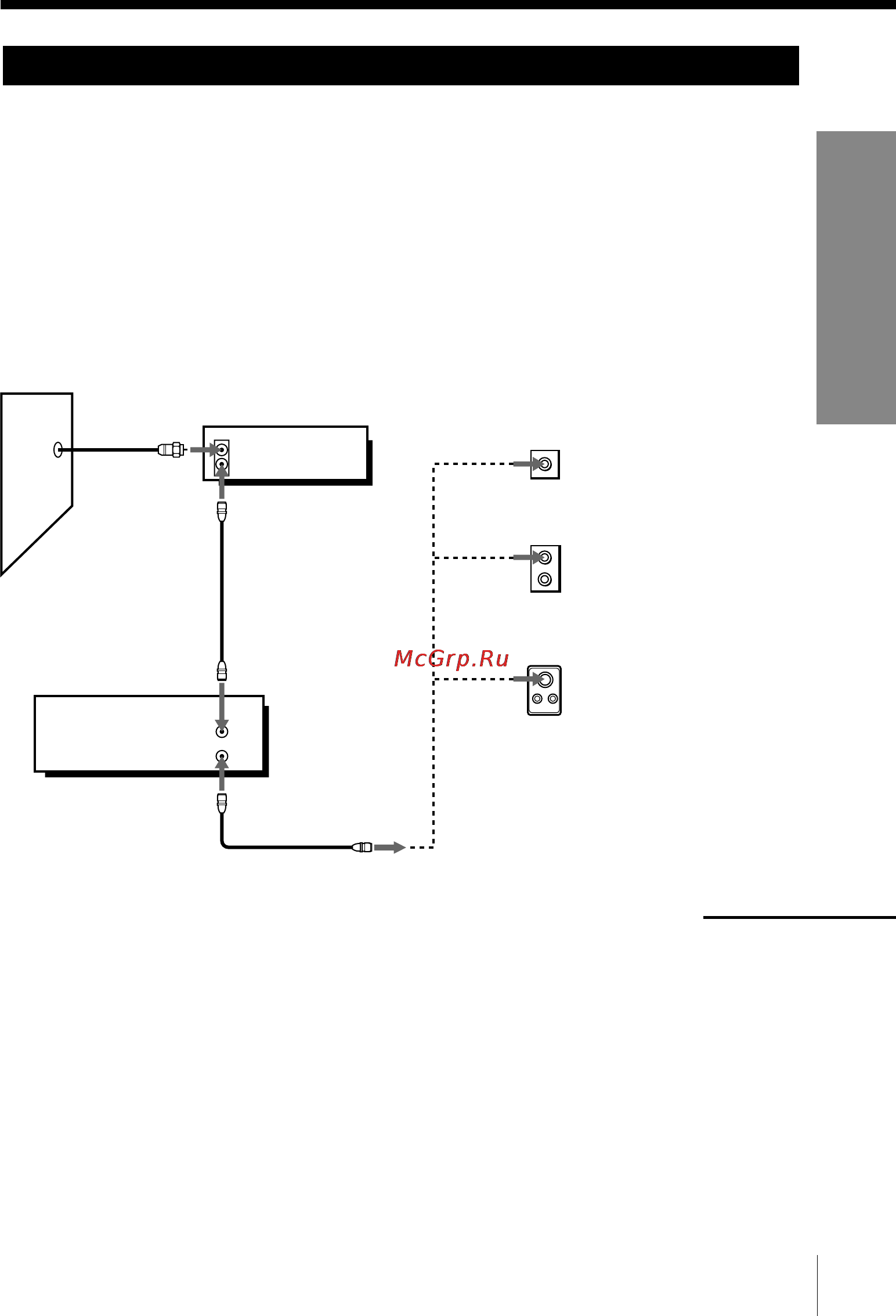

Hookup 2

OUT

VHF/UHF

OUT

Cable box

VCR

Wall

VHF/UHF

Rear of TV

VHF

UHF

VHF

UHF

Match the type of

connector on your TV:

A, B, or C.

For connector types B

and C, no UHF

connection is required.

continued
