Additional Information64

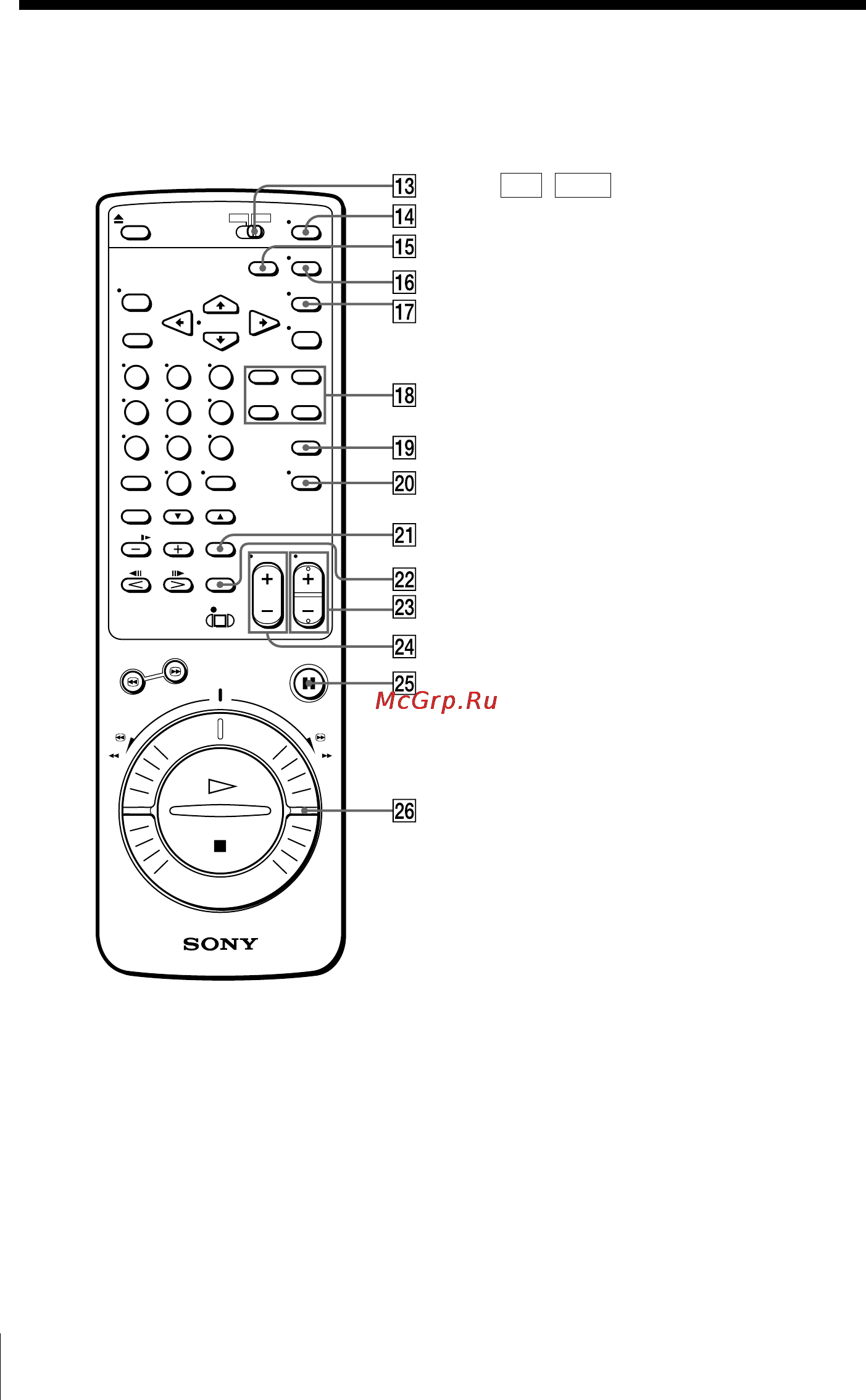

Index to parts and controls (continued)

!£ TV / VTR remote control switch (5,

!¢ POWER switch

!∞ TIMER CLEAR button (41, 49)

!§ TV/VTR button (39)

!¶ AUDIO MONITOR button (50)

!• VCR Plus+ buttons (41)

VCR Plus+ button

ONCE button

DAILY button

WEEKLY button

!ª QUICK TIMER button (48)

@º DISPLAY button (37, 39)

@¡ TAPE SPEED button (39)

@™ INPUT SELECT button (38)

@£ CH +/– buttons (31, 39)

@¢ VOL +/– buttons

@∞ P PAUSE button (37)

@§ DUAL MODE SHUTTLE ring (37,

46)

Remote commander (continued)
