screws (4).
•
Open the vapour scheme and remove the grease filters
(see relevant paragraph).
•
Hang the hood (5), regulate the position (6-7) and fasten
it securely with one screw and washer(8).
•
Carry out electrical connections (9), but leave the hood
disconnected from the general electrical main panel.
•
Install the flange supplied on the exit hole of the hood
(10).
•
Carry out the connection of one tube (11 – tube and ties
for fastening not included, they need to be bought) for the
fume discharge to the connection ring placed on top of
the extractor motor unit.
The other end of the tube should be connected to a fume
expulsion device towards the outside, in case the hood is
used in extractor version.
In case you want to use the hood in filtering version,
fasten the deflector F to the support bracket, and connect
the other side of the tube to the connection ring placed
on the deflector (12).
Apply the chimneys and fasten them on with two screws
(13a) to the chimney support bracket „G“ (13b). and
make the lower part of the chimney slide into the suited
part on top of the chimney.
•
Mount the grease filters and close the vapour scheme.
Warning! If the hood has to be used in extractor version,
remove, if supplied, the carbon filter and the fastening
wand (placed on the back of the grease filters – see
relative paragraph).
If the hood has to be used in filtering version, make sure
that the carbon filter is already mounted on the back of
the grease filter, or in case it’s missing, buy it and install
it.
Description of the hood
Fig. 1
1. Control panel
2. Grease filter
3. Grease filter release handle
4. Halogen lamp
5. Vapour screen
6. Telescopic chimney
7. Air outlet (used for filter version only)
Operation
Use the high suction speed in cases of concentrated kitchen
vapours. It is recommended that the cooker hood suction is
switched on for 5 minutes prior to cooking and to leave in
operation during cooking and for
another 15 minutes
approximately after terminating cooking.

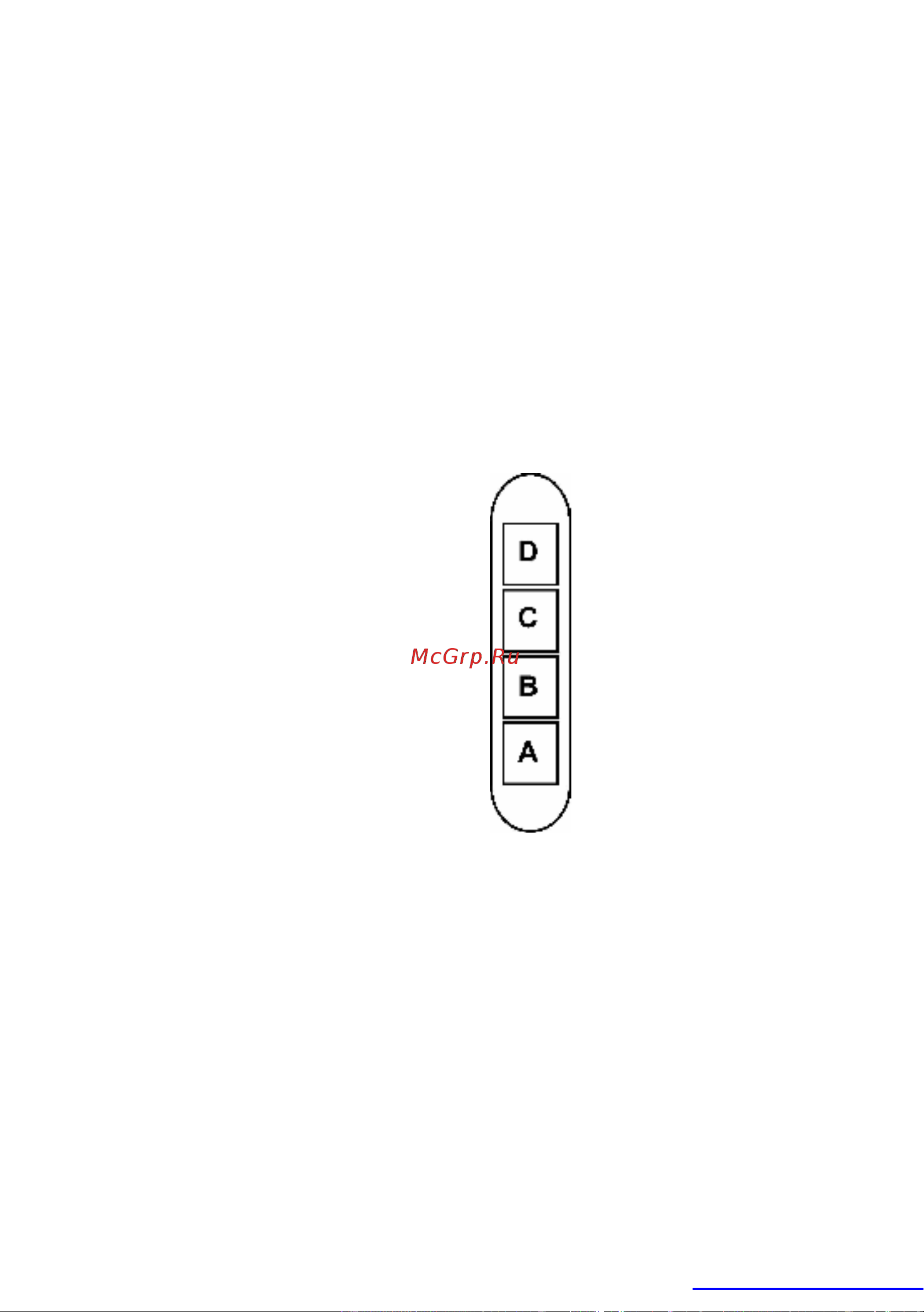

Model with switch-board having 4 push-buttons
A. on/off light switch.
B.
power selection
B+C.
switch
B+D. maximum power selection aspiration
switch
Maintenance
Before performing any maintenance operation, isolate the
hood from the electrical supply by switching off at the
connector and removing the connector fuse.
Or if the appliance has
been connected through a plug and
socket, then the plug must be removed from the socket.
Cleaning
The cooker hood should be cleaned regularly (at least with the
same frequency with which you carry out maintenance of the
fat f
ilters) internally and externally. Clean using the cloth
dampened with neutral liquid detergent. Do not use abrasive
products.
DO NOT USE ALCOHOL!
Steam screen
The steam screen must always be left closed and
opened only for maintenance (e.g. cleaning o
r changing
filters).
