Zoom H1n Limited Edition [12/71] Using an ac adapter

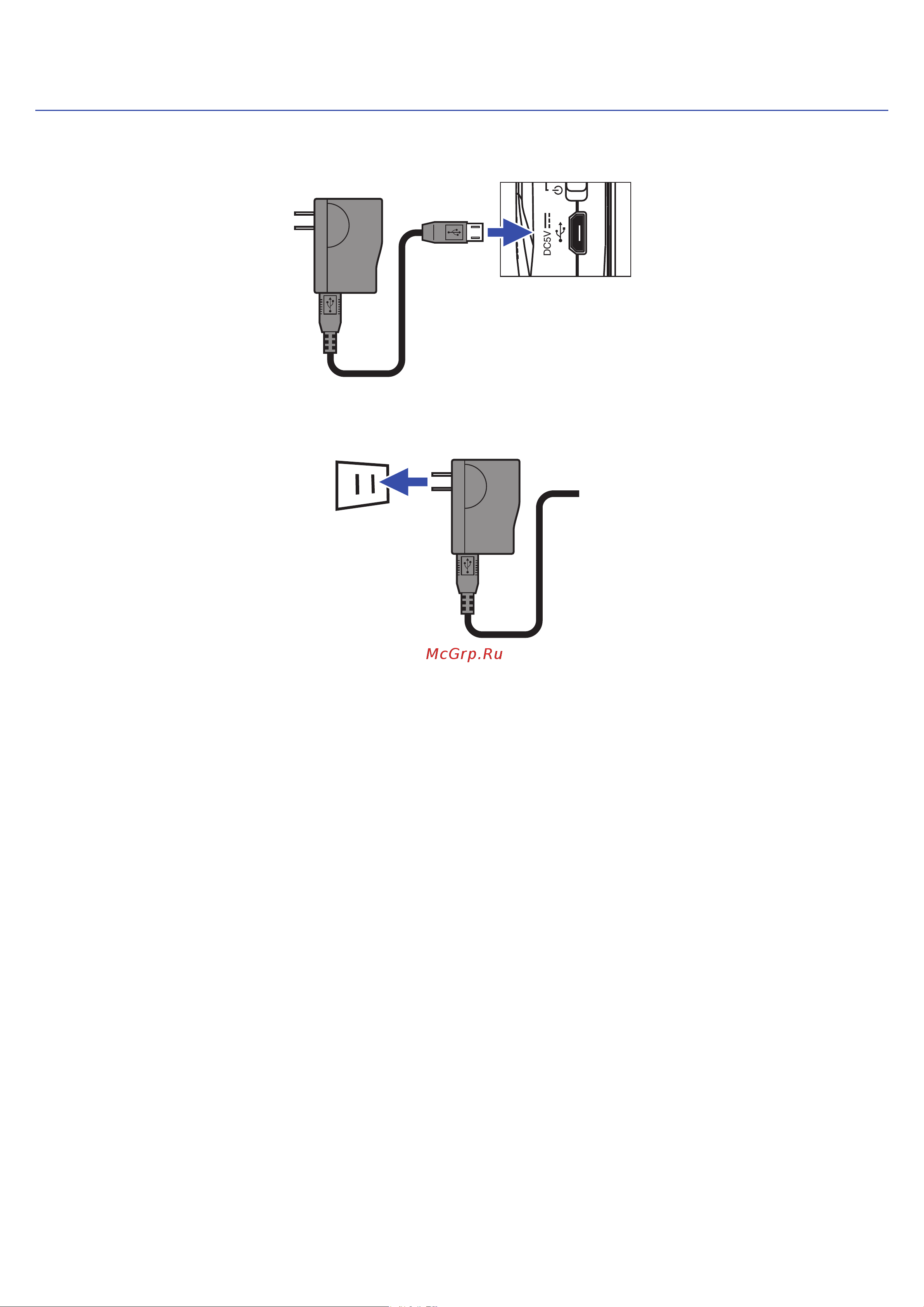

Using an AC adapter

1. Connect the cable of an AD-17 AC adapter to the USB port.

2. Plug the AC adapter into an outlet.
