Zoom H1n Limited Edition [49/71] Making various settings

Making various settings

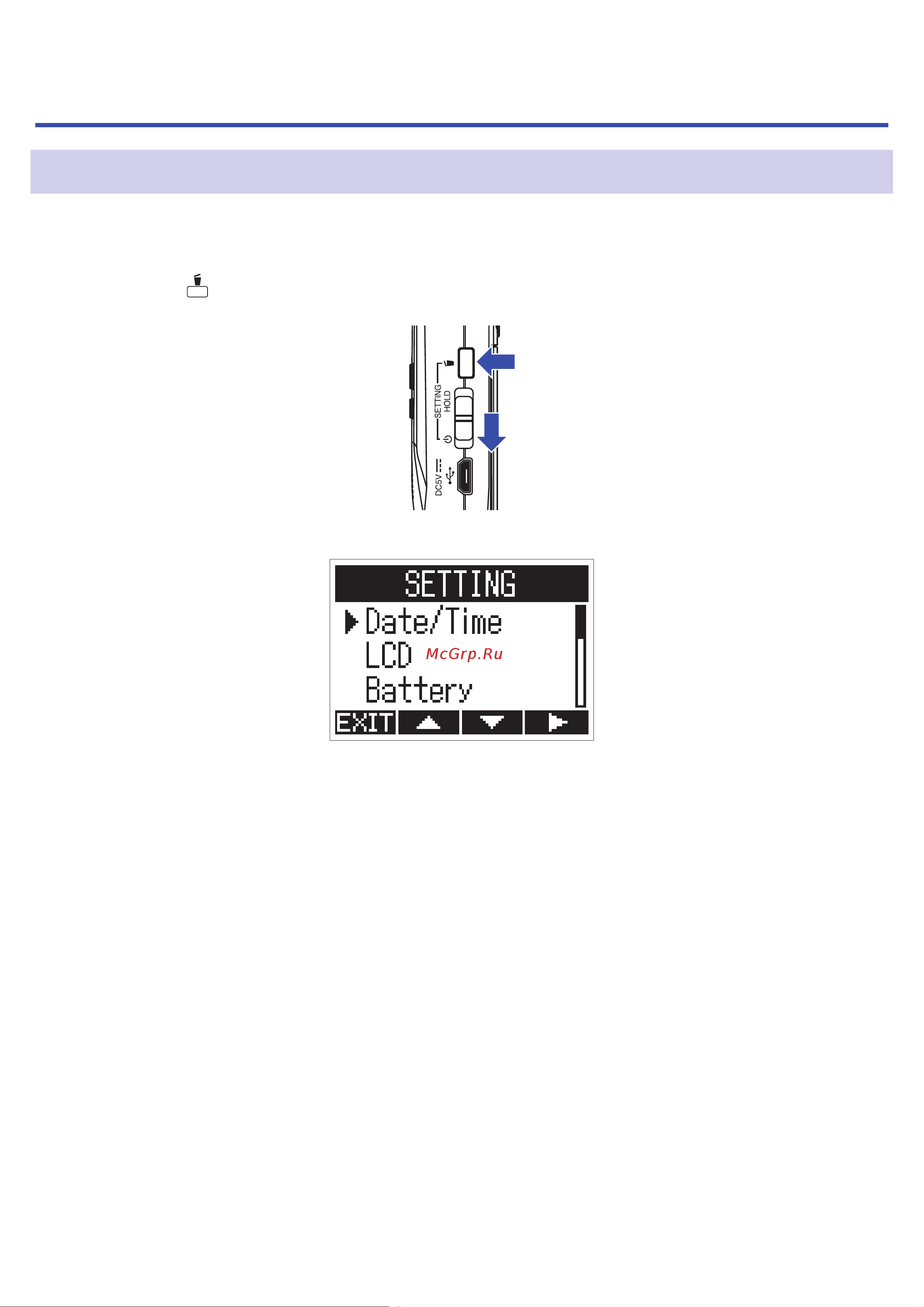

Opening the SETTING screen

Various settings can be made on the SETTING screen.

1. While pressing , turn the power on.

This opens the SETTING screen.
