Zoom H1n Limited Edition [63/71] Checking the versions

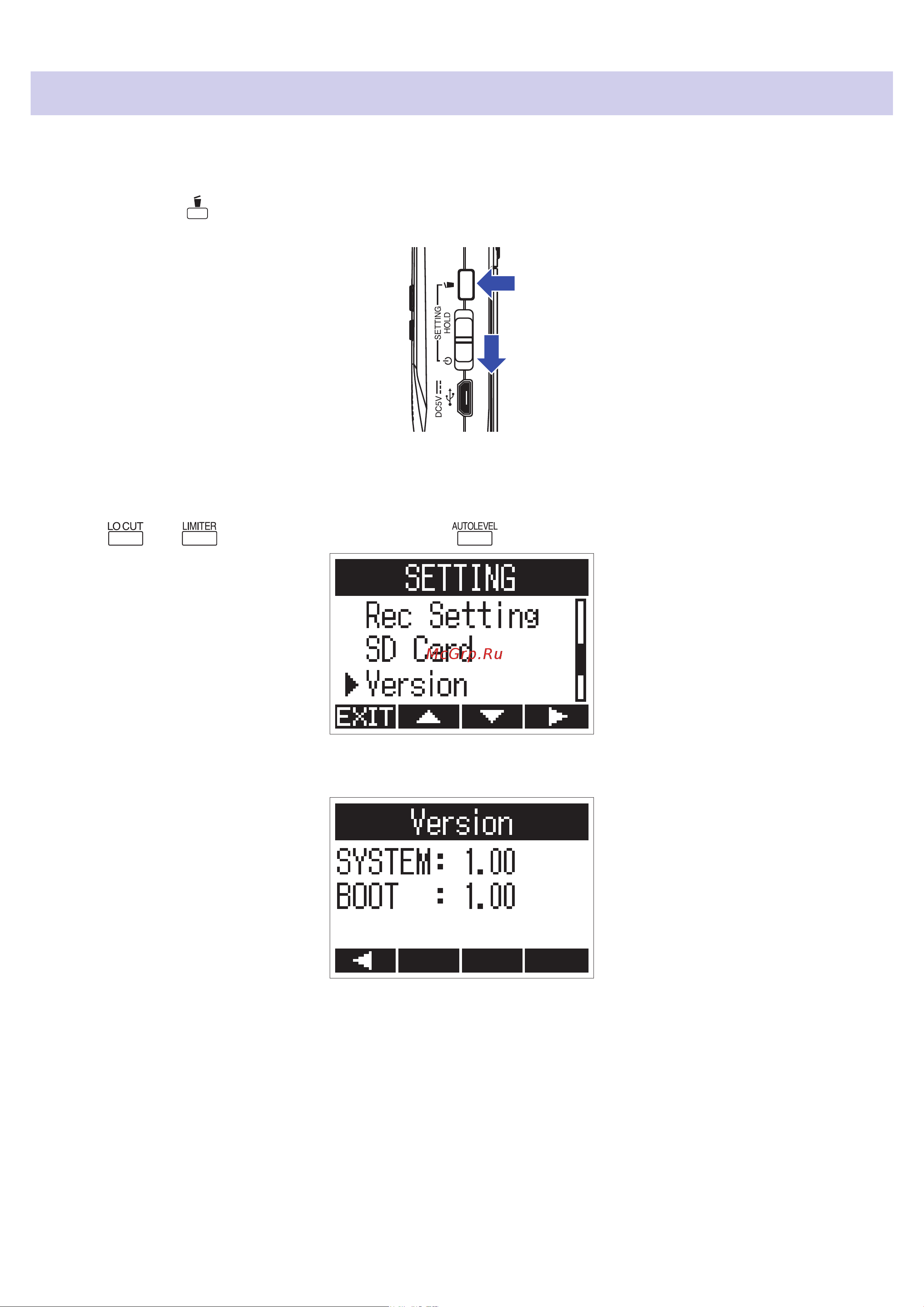

Checking the versions

You can check the rmware versions.

1. While pressing , turn the power on.

This opens the SETTING screen.

2. Use and to select "Version", and press .

3. Check the rmware versions.
