Zoom H1n Limited Edition [61/71] Conducting a full test

Conducting a Full Test

NOTE

Use the AC adapter to supply power when conducting a full test (→ "Using an AC adapter").

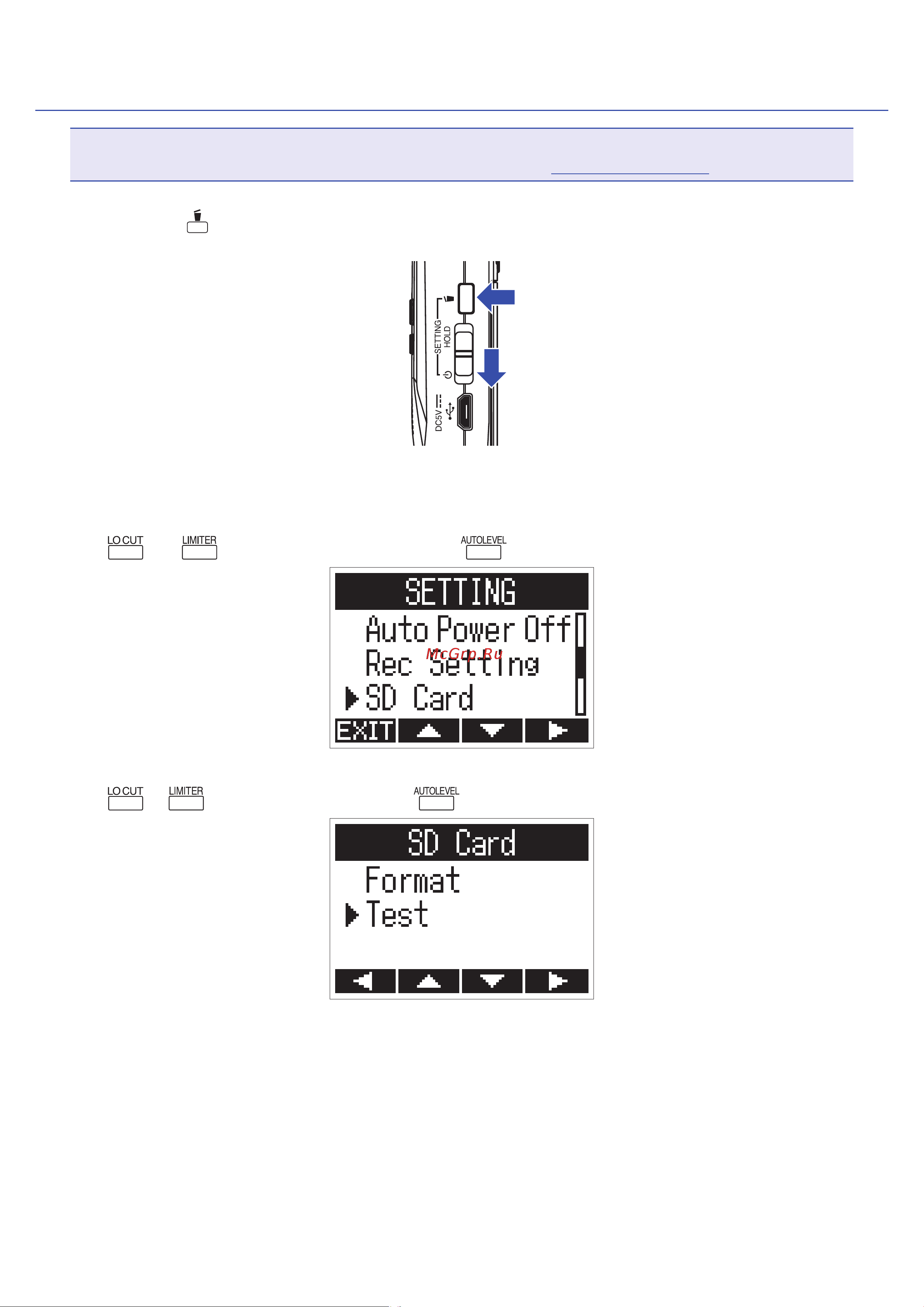

1. While pressing , turn the power on.

This opens the SETTING screen.

2. Use and to select "SD Card", and press .

3. Use or to select "Test", and press .
