Zoom H1n Limited Edition [66/71] After the firmware update completes turn the power off

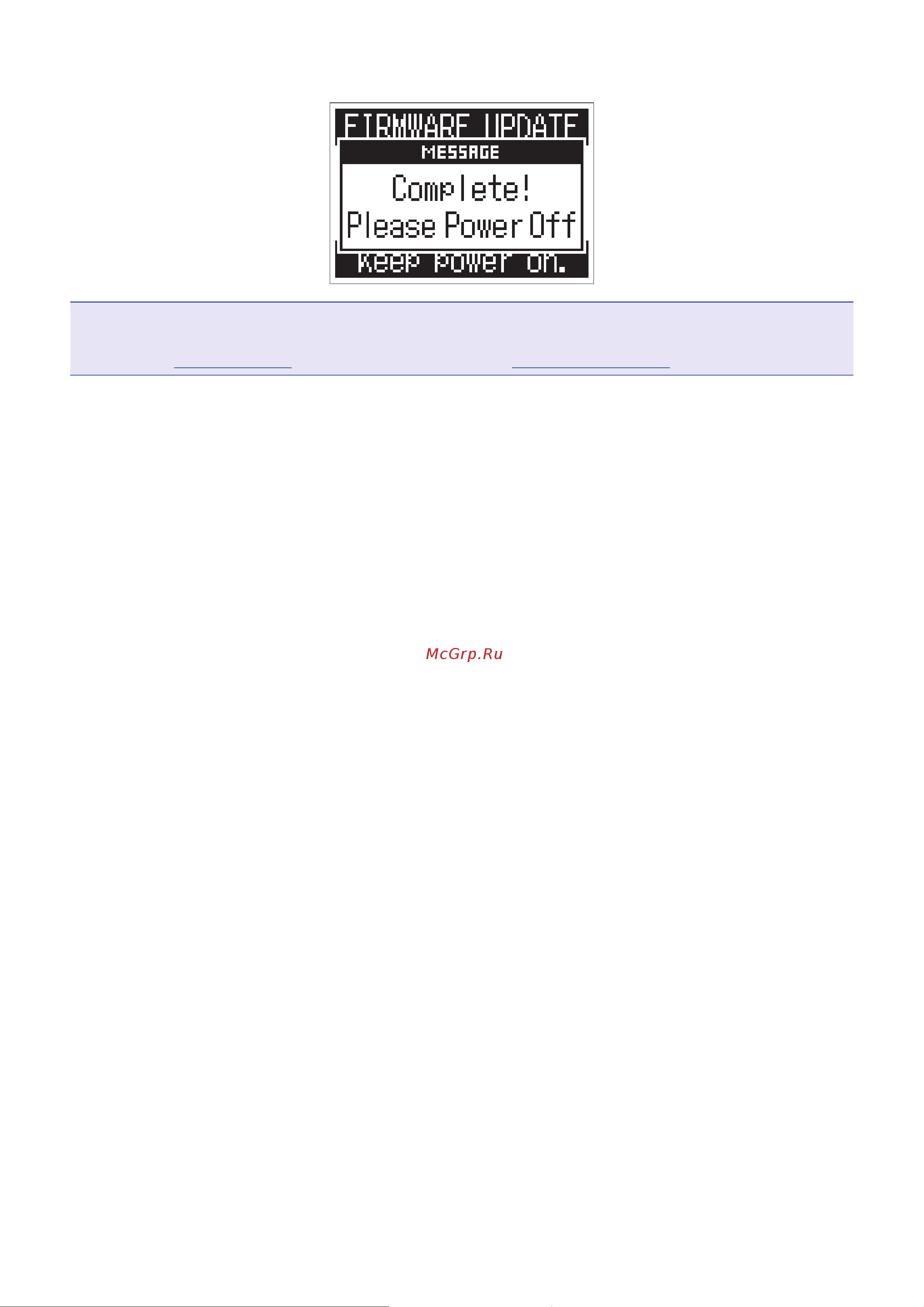

6. After the rmware update completes, turn the power o.

NOTE

Executing a rmware update is not possible if the remaining battery power is low. Replace the batteries with

new ones (→ "Using batteries") or connect the AC adapter (→ "Using an AC adapter").
