Zoom H1n Limited Edition [20/71] Using automatic level adjustment

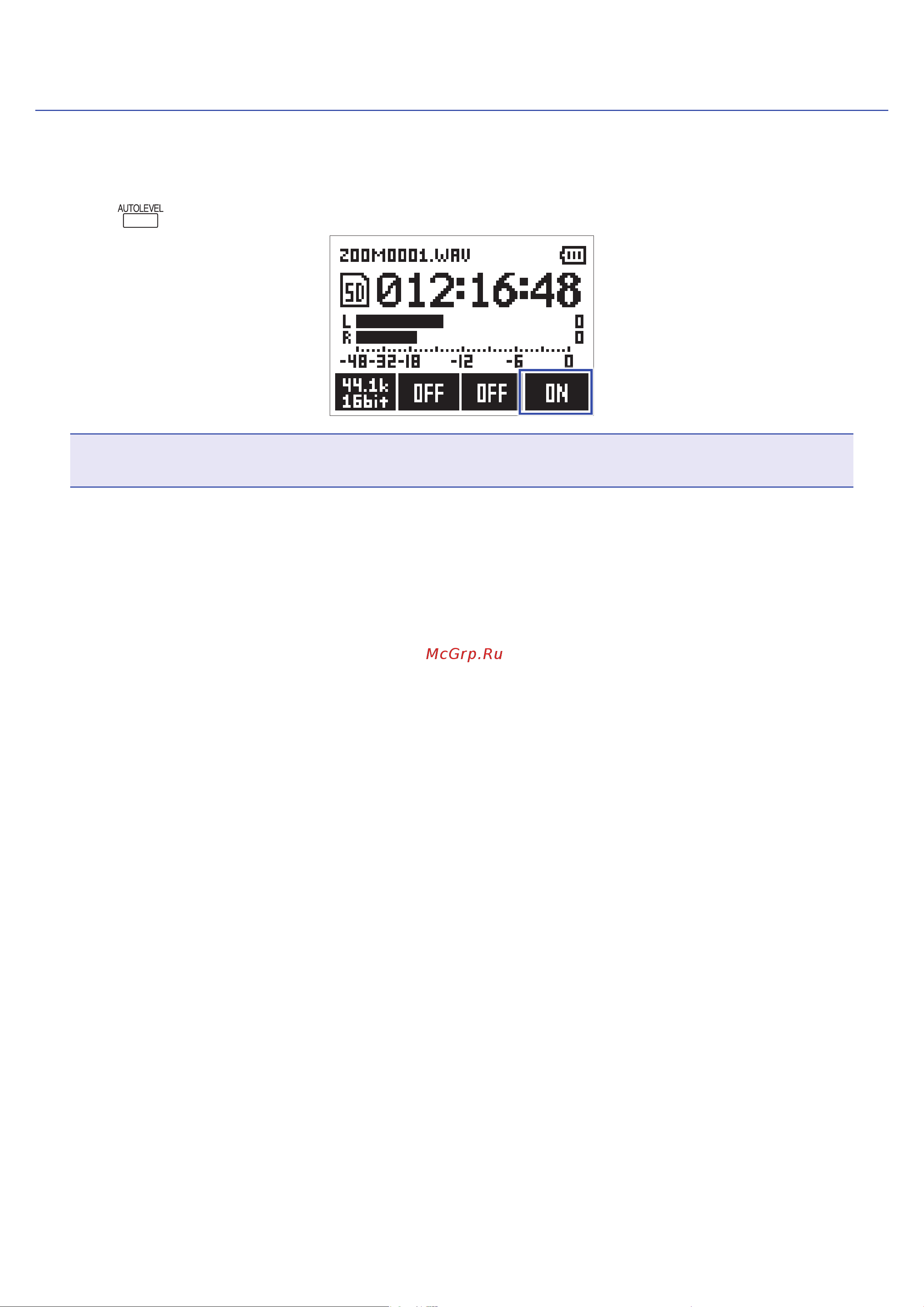

Using automatic level adjustment

This function automatically adjusts the input level according to the input signal.

1. Press to select ON.

NOTE

When automatic level adjustment is ON, turning the input volume dial has no eect.
