ELEKTRON Digitakt [10/70] Panel layout and connectors
![ELEKTRON Digitakt [10/70] Panel layout and connectors](/views2/2007940/page10/bga.png)

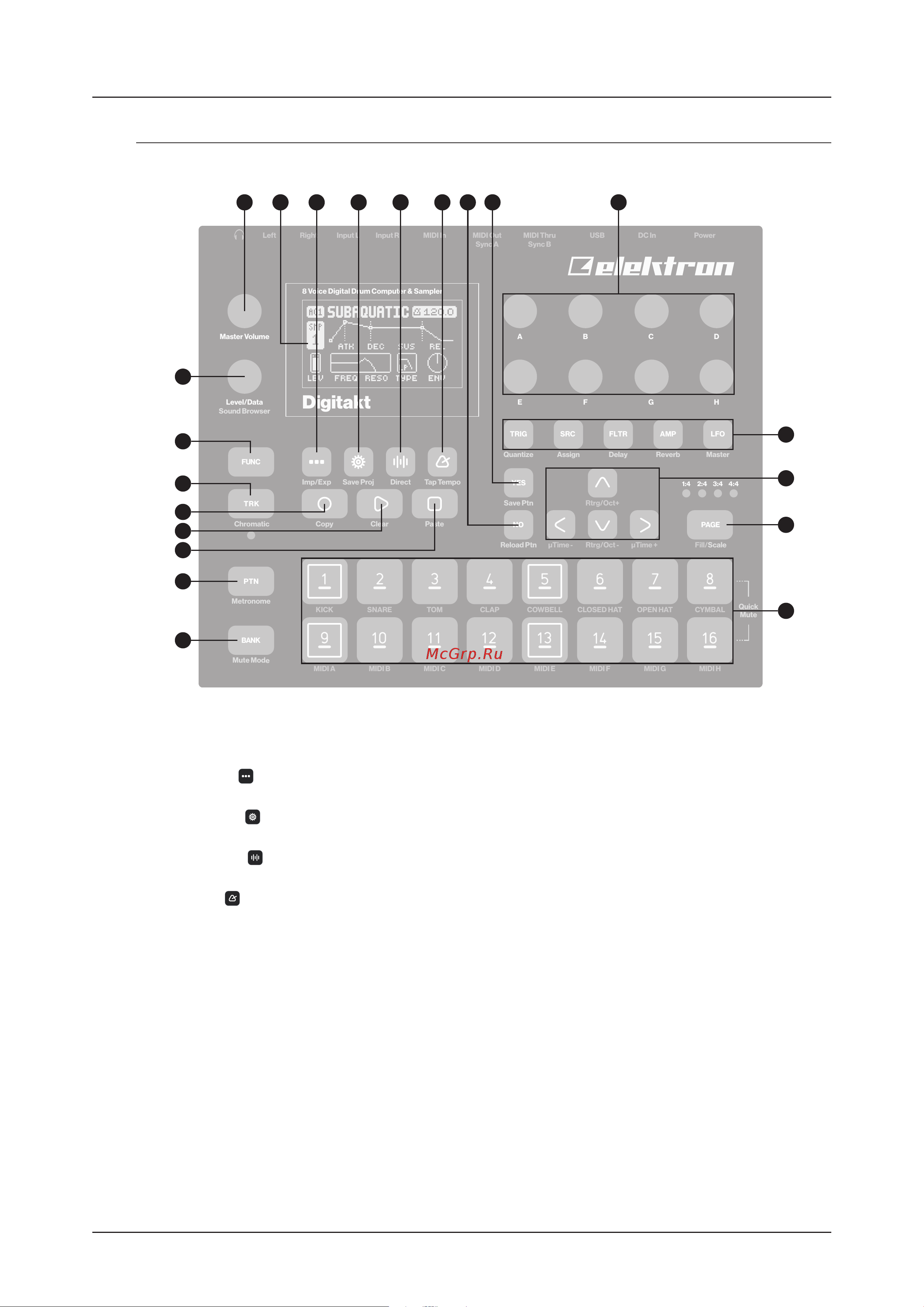

3. PANEL LAYOUT AND CONNECTORS
10
3. PANEL LAYOUT AND CONNECTORS
3.1 FRONT PANEL
KICK
SNARE
TOM
CLAP
COWBELL
CLOSED HAT
OPEN HAT
CYMBAL
MIDI A
MIDI B
MIDI C
MIDI D
MIDI E
MIDI F
MIDI G
μTime - μTime +Rtrg/Oct -
Rtrg/Oct+
MIDI H
PowerDC InUSBMIDI Thru
Sync B
MIDI Out
Sync A
MIDI InInput RInput LRightLeft
Copy
Imp/Exp Save Proj Direct
Chromatic
Mute Mode
Metronome
Tap Tempo
Clear Paste
Reload Ptn
Save Ptn
Fill/Scale
AssignQuantize Delay Reverb Master
Sound Browser
Quick
Mute
1:4
2:4 3:4 4:4
Master Volume
Level/Data
A
B
C
D
E
F
G
H
PTN
BANK
8 Voice Digital Drum Computer & Sampler
Digitakt
PA
GE
YES
TRK
F
UN
C
NO
TRIG SRC FLTR AMP LFO
19
14
15
16
10
93 4 5 621
21
11
12
13
17
18
7 8
20
1. MASTER VOLUME sets the volume for the main outputs and the headphones output.
2. Screen.
3. [PATTERN] opens the PATTERN menu, where pattern management is located.
The secondary function accesses the Import/Export menu.
4. [SETTINGS] contains the management of projects, MIDI configuration, and the System settings.
The secondary function saves the current project.
5. [SAMPLING] opens the SAMPLING menu, where you perform the sampling.
The secondary function starts Direct Sampling.
6. [TEMPO] opens the TEMPO menu, where you can adjust the global/pattern tempo and also adjust
the swing. The secondary function makes it possible to tap the tempo.
7. [NO] key. Used for exiting an active menu, backing one step and negating. The secondary function is to
temporary reload the active pattern.
8. [YES] key. Used for entering sub-menus, selecting and confirming. The secondary function is to tempo-
rary save the active pattern.
9. DATA ENTRY knobs A-H. Used for setting parameter values. Press and turn the knobs to change values
in larger increments.
10. [PARAMETER] keys access the PARAMETER pages of the active track. The color of the keys indicates
if the page is active (red/orange) or inactive (o).
• [TRIG PARAMETERS] accesses parameters such as NOTE, VELOCITY, and other trig related param-
eters. The secondary function accesses the QUANTIZE menu.
• [SRC] takes you to the SOURCE page that deals with sample playback on audio tracks. For MIDI
tracks this page has parameters such as CHANNEL, PROGRAM, and AFTERTOUCH. The secondary
function accesses SAMPLE SELECT.
• [FLTR] accesses the FILTER page. Here are the parameters for the multimode filter for the audio tracks.
On MIDI tracks you find the CC value settings here. The secondary function accesses the DELAY page.
