11. AUDIO TRACK PARAMETERS
40
11.6.4 OVER
Overdrive sets the amount of overdrive and clipping distortion of the signal entering the filter.
(0.00–127.00)
11.6.5 DEL
Delay Send sets the amount of the sound that is sent through to the Delay eect. For more information,
please see “13. FX PARAMETERS” on page 47. (OFF, 0.01–127.00)
11.6.6 REV
Reverb Send sets the amount of the sound that is sent through to the Reverb eect. For more informa-
tion, please see “13. FX PARAMETERS” on page 47). (OFF, 0.01–127.00)
11.6.7 PAN
Pan positions the sound in the stereo field. The knob function is bipolar with 0 being the balanced mid-
point, L64 sends all sound to the left channel and R63 sends all sound to the right.
(L64–R63)
11.6.8 VOL
Volume sets the amount volume of the sound. This parameter is independent of the overall track level.
(0.00–127.00)

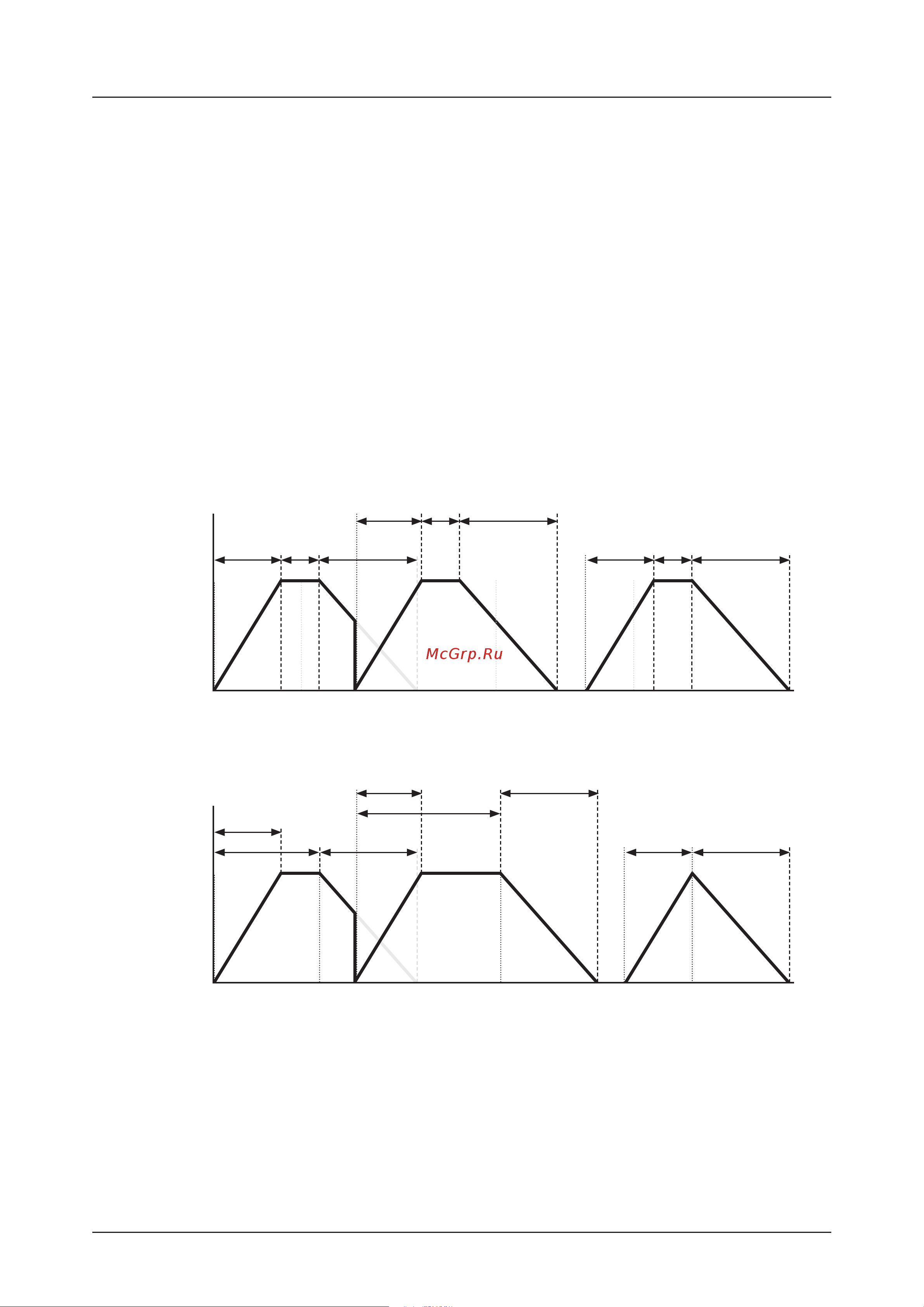

Amplitude envelope with a fixed HOLD time.
TIME
AMPLITUDE
Note On
Attack
Decay
Hold
Note O
Attack
Decay
Hold
Note On Note O
Attack
Decay
Hold
Note On
Note O
Amplitude envelope with HOLD set to NOTE.
TIME
AMPLITUDE
Note On
Attack
Decay
Hold
Note O
Attack Decay
Hold
Note
On
Note O
Attack/
Hold
Decay
Note On
Note O
11.7 LFO PAGE
The Low-Frequency Oscillator can be used to modulate the parameters found on the audio tracks SRC,
FILTER and AMP pages. Customize the low-frequency oscillator behavior, orientation, and depth on this
page.
Press [LFO] to access this parameter page.
