12. MIDI TRACK PARAMETERS
45

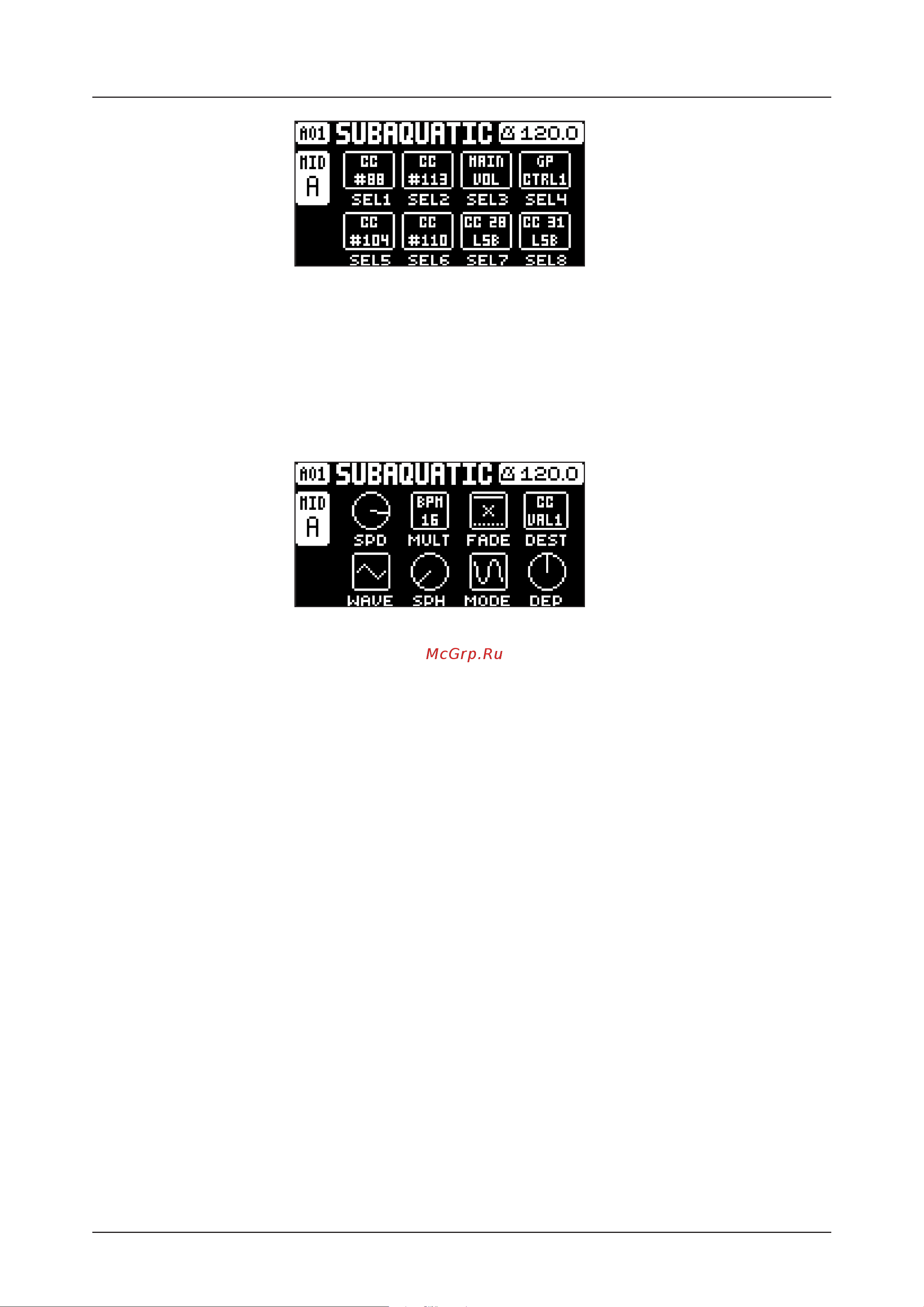

12.5.1 SEL1-SEL8
CC 1–8 Select specifies the CC commands that are controlled by the parameters on the AMP PAGE 1
(CC VALUE) page. The selectable values are the standard MIDI Control Change Messages. (0–119)
12.6 LFO PAGE
The Low-Frequency Oscillator can be used to interact with the parameters found on the MIDI tracks’ SRC,
and FLTR pages. Customize the low-frequency oscillator behavior, orientation, and depth on this page.
Press [LFO] to access this parameter page.
12.6.1 SPD
Speed sets the speed of the LFO. Try settings of 8, 16 or 32 to sync the LFO to straight beats. The knob
is bi-polar. The LFO cycle can be played backward by using negative values. (64.00–63.00)
12.6.2 MULT
Multiplier multiplies the SPD parameter by the set factor either by multiplying the current tempo (BPM
settings), or by multiplying a fixed tempo of 120 BPM.
12.6.3 FADE
Fade In/Out makes it possible to fade in/fade out the LFO modulation. The knob is bipolar. Positive
values give a fade out, negative values give a fade in. 0 gives no fade in/fade out. (-64–63)
12.6.4 DEST
Destination selects the modulation destination for the LFO. Preview how the LFO modulation will aect
the sound by highlighting a destination. Press [YES] to confirm the selection.
12.6.5 WAVE
Waveform sets the LFO waveform. There are seven waveforms: Triangle, Sine, Square, Sawtooth, Expo-
nential, Ramp and Random.
12.6.6 SPH
Start Phase sets the point within the wave cycle where the LFO will start when it is trigged. 0 makes the
LFO start at the beginning of a complete wave cycle, 64 makes it start at the center. (0–127)
12.6.7 MODE
Trig Mode sets how the LFO will act when a note is trigged.
• FRE is the default free-running mode. It makes the LFO run continuously, never restarting or
stopping even if notes are trigged.
• TRG makes the LFO restart when a note is trigged.
• HLD makes the LFO run free in the background, but when a note is trigged the LFO output level is
latched and held still until the next note is trigged.
