15. SETTINGS MENU
56
CLOCK RECEIVE will, when active, make Digitakt respond to MIDI clock sent from external devices.
CLOCK SEND will, when active, make Digitakt transmit MIDI clock.
PRG CH RECEIVE will, when active, make Digitakt respond to incoming program change messages,
which is useful when wanting to select patterns externally. The MIDI channel that will listen to incom-
ing program change messages is set in the MIDI CHANNELS menu. For more information, please see
“15.3.3 CHANNELS” on page 57.
PRG CH SEND will, when active, send program change messages when patterns are changed. The
MIDI channel that will send program change messages is set in the MIDI CHANNELS menu. For more
information, please see “15.3.3 CHANNELS” on page 57.

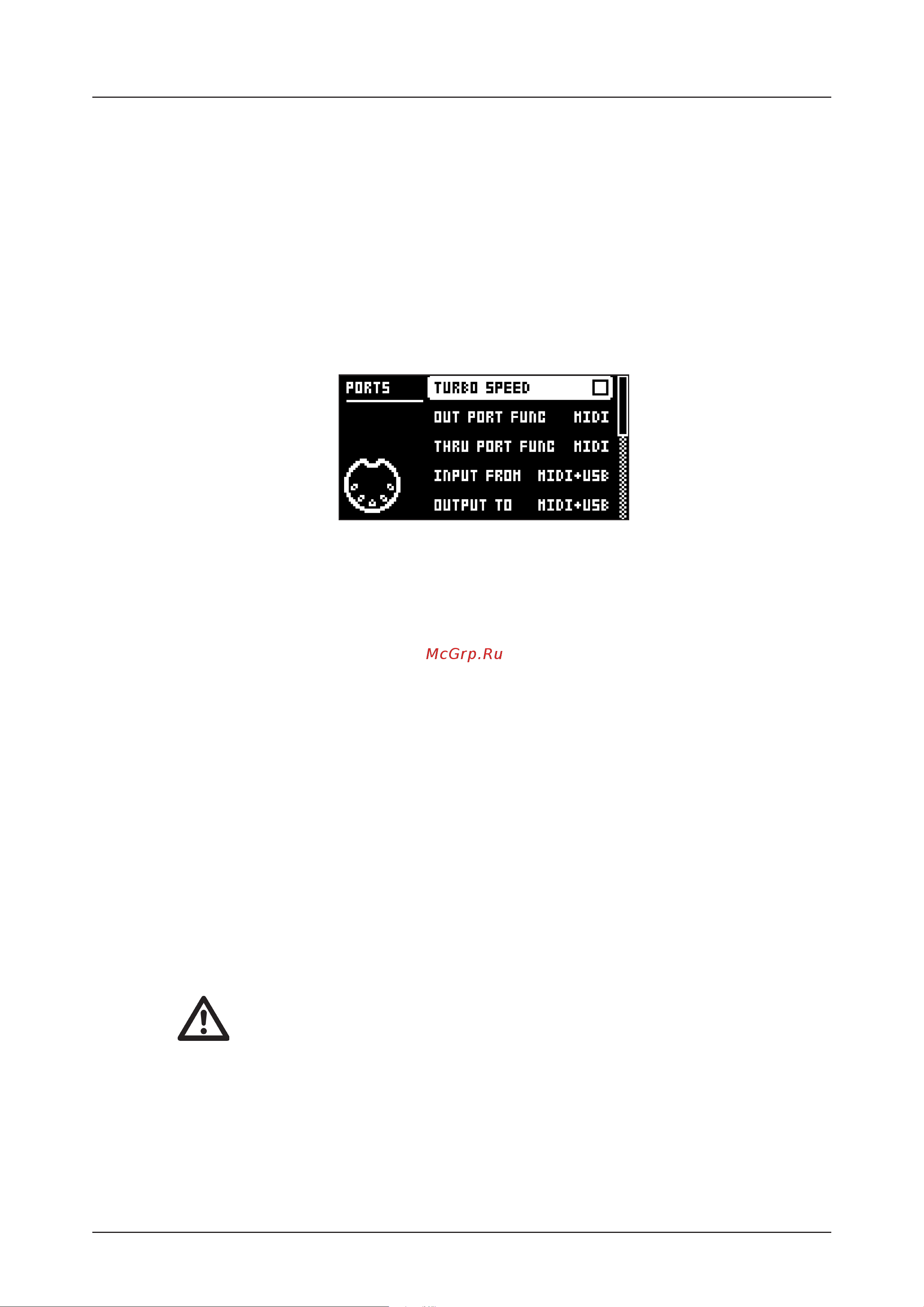

15.3.2 PORT CONFIG
MIDI port related settings are found in this menu. Change settings by using the [LEFT]/[RIGHT] arrow
keys.
TURBO SPEED press [YES] to start the turbo speed negotiation. Speed is chosen automatically. Please
note that you must use a MIDI interface that supports the Turbo-MIDI protocol.
OUT PORT FUNCTIONALITY selects what type of signal the MIDI OUT port will send.
• MIDI makes it possible for the port to send out MIDI data.
• DIN 24 will make the port send DIN 24 sync pulses. No MIDI data is sent on the port when this option
is selected.
• DIN 48 will make the port send DIN 48 sync pulses. No MIDI data is sent on the port when this option
is selected.
THRU PORT FUNCTIONALITY selects what type of signal the MIDI THRU port will send. The settings
are the same as for OUT PORT FUNCTIONALITY.
INPUT FROM selects the source Digitakt will receive MIDI data from.
• DISABLED will make Digitakt disregard any incoming MIDI data.
• MIDI will make Digitakt listen only to MIDI data sent to the MIDI IN port.
• USB will make Digitakt listen only to MIDI data sent to the USB port.
• MIDI+USB will make Digitakt listen to MIDI data sent to both the MIDI IN and USB ports.
OUTPUT TO selects the destination to which Digitakt will send MIDI data.
• DISABLED will stop Digitakt from sending out any MIDI data.
• MIDI will make Digitakt send MIDI data to the MIDI OUT port only.
• USB will make Digitakt send MIDI data to the USB port only.
• MIDI+USB will make Digitakt send MIDI data to both the MIDI OUT and USB ports.
If MIDI+USB is selected in the INPUT FROM and/or OUTPUT TO settings, MIDI data will
limit the USB speed. When sending or receiving large chunks of data, make sure you
only use the USB setting.
OUTPUT CH selects whether the knobs will send data on the auto channel or the track channel.
PARAM OUTPUT selects what type of MIDI messages the DATA ENTRY knobs will send. For information
about which CC/NRPN parameters that will be sent, please see “APPENDIX A: MIDI” on page 66.
• NRPN will make the knobs send out NRPN MIDI messages.
• CC will make the knobs send out CC MIDI messages.
ENCODER DEST controls whether the DATA ENTRY and LEVEL knobs sends MIDI data or not. When
set to INT, the knobs only aects the Digitakt and no MIDI data is sent. When set to INT + EXT, the
