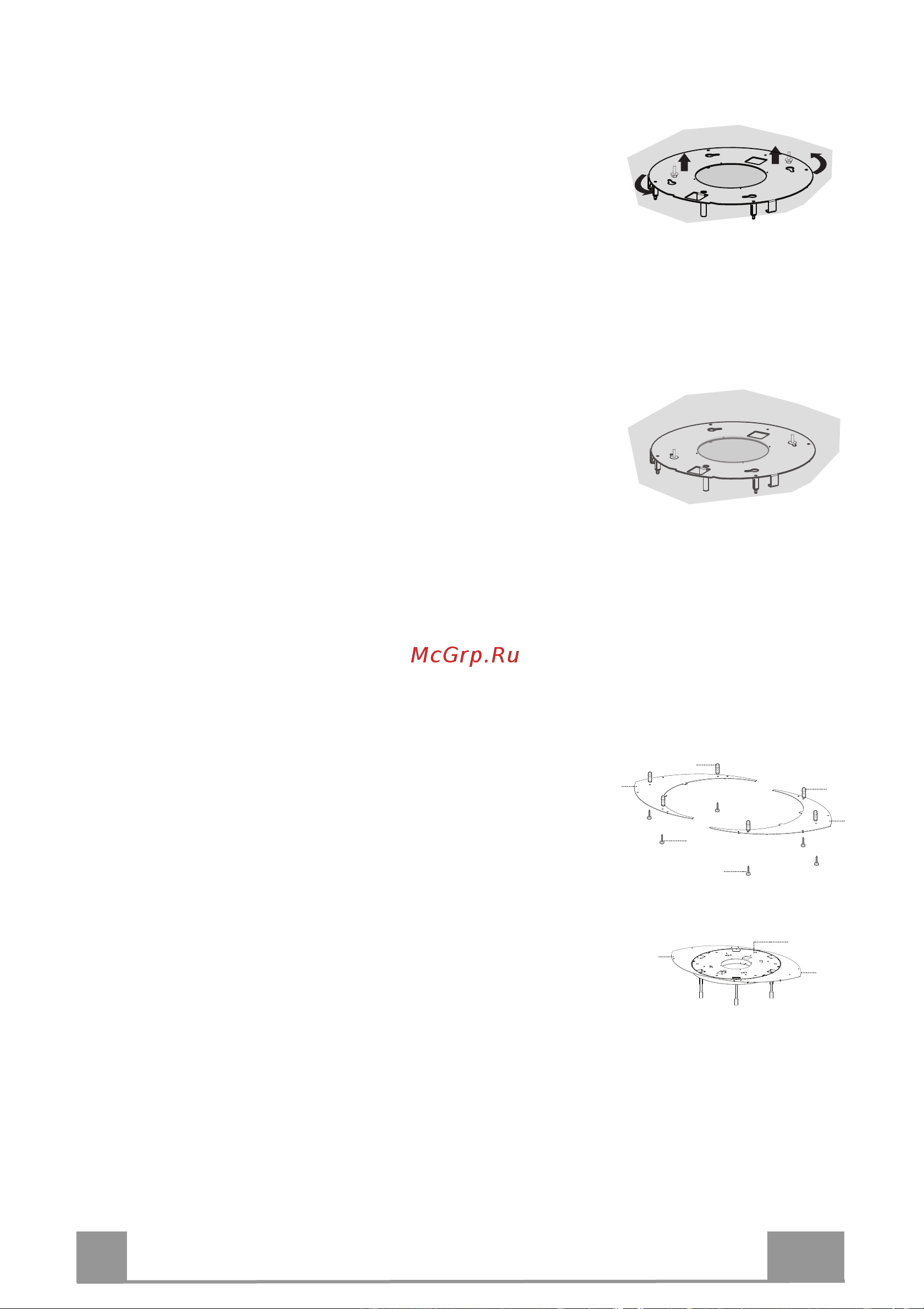

FIXING THE PLATE

• Lift up the fixing plate, taking care to ensure that the limit pawl

is positioned frontally.

• Fit the slots onto the two screws previously inserted in the

ceiling, and turn until they are at the centre of the adjustment

slot.

• Tighten the two screws completely and screw in the other two

provided; before locking the screws completely it is possible to

make adjustments by turning the piece, making sure that the

screws do not come out of the adjustment slot.

• The unit must be securely fastened both due to the weight of

the Hood and the stress caused by occasional sideways

pressure on the Appliance when in position. Once the unit has

been fixed, make sure that the plate is stable.

• In all cases where the Ceiling is not sufficiently strong at the

point of suspension, the Installation technician must strengthen

it with suitable plates and counterplates, anchored to

structurally sound elements.

FIXING THE PLATE EXTENSION (NEST MODEL)

• Take the 2 Extensions 2.1 and hook them in the slots provided

in Plate 2 which has already been fitted.

• Mark on the ceiling the centres of the holes in the plates.

• Remove the extensions.

• Drill a hole ø 10 mm (insert Plugs 11 supplied immediately).

• Hook up the extensions again and fix them using the screws

12h provided.

2.1

12h

2.1
