LEVELLING THE HOOD

• The hood mobile unit must be levelled to allow

the movement to operate properly.

• The hood is levelled by adjusting the safety pawls.

• Rest a spirit level on the hood.

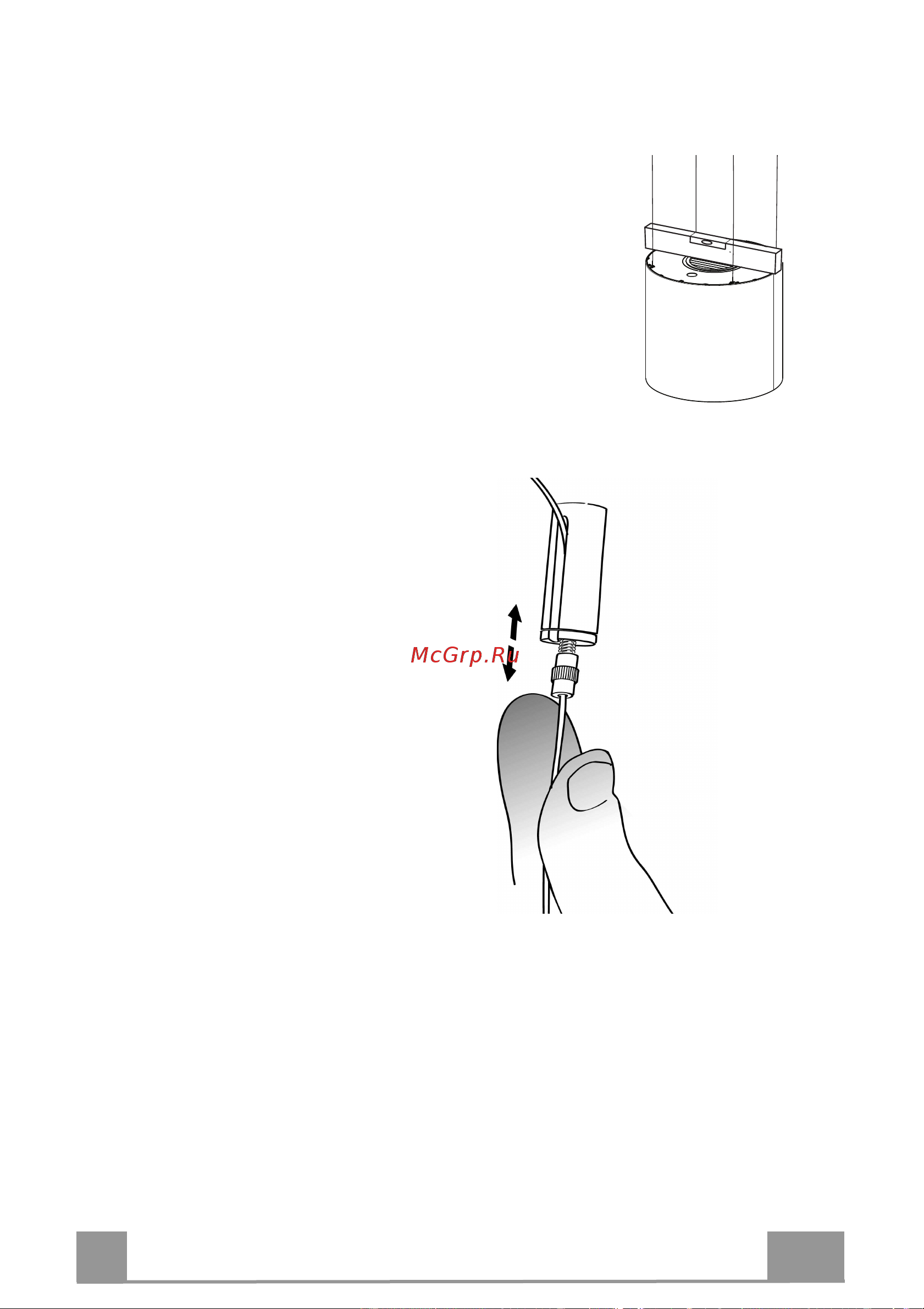

• When the safety knobs are pressed upwards,

ovement of the hood is “unlocked”. By

inserting or extracting the cable from the

cable clamp screw it is possible to make

adjustments that allow the mobile hood body

to be levelled.

• Once the hood has been set level, the safety

knobs must be tightened again.

Warning:

• Please check that all 4 cables are stretched.

• Please check that all 4 cables were not damaged during installation.

• It must be remembered that the minimum distance between the hood and the cooking

hob must be 650mm.

• The mobile unit (hood canopy) must have a maximum stroke of 900 mm in case of

recirculation version and in the case of the ducting kit of 750mm.
