USE

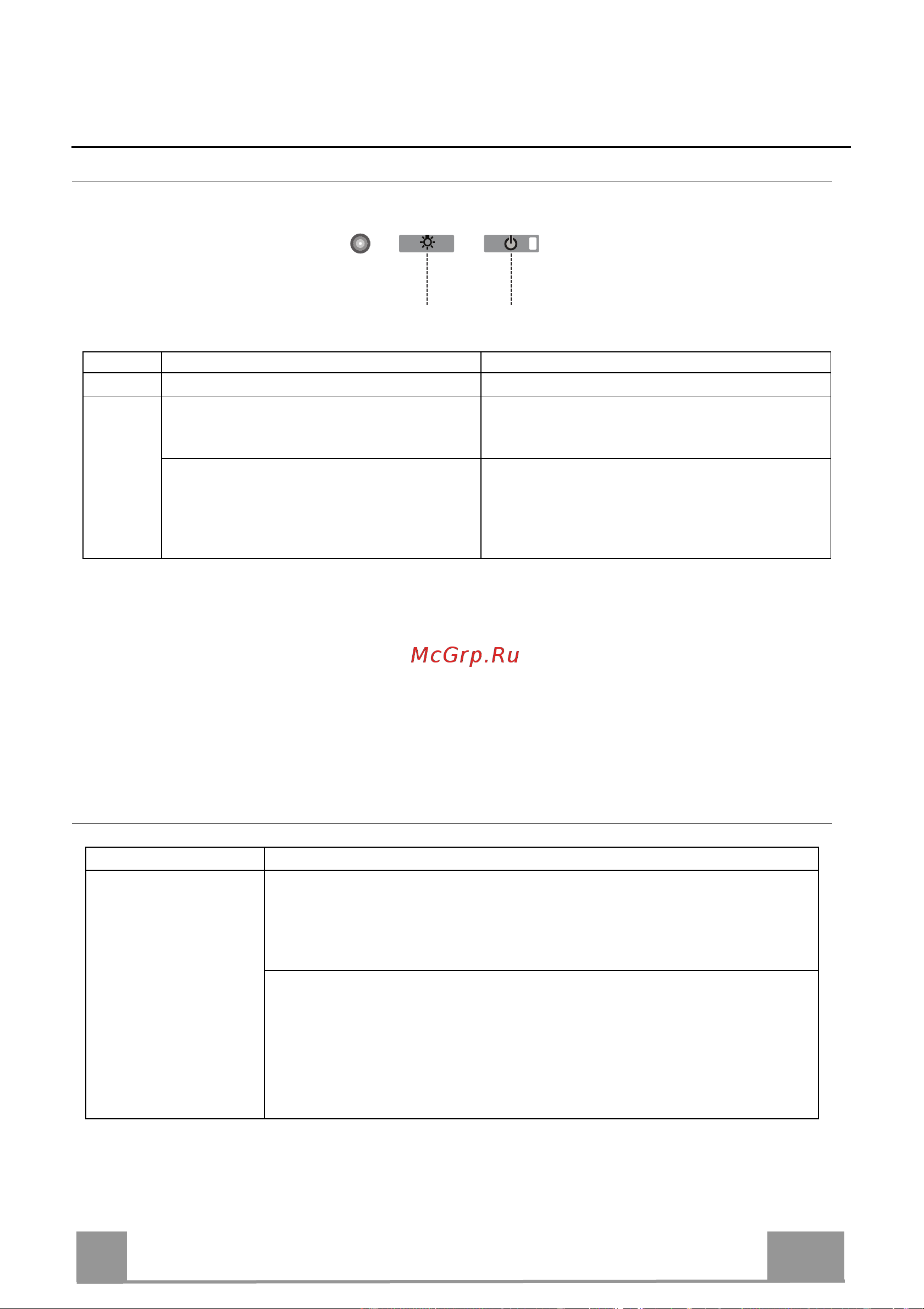

Control panel

L T1

Button

Function

Display

Turns the lights On/Off.

Hood Down

Press for 2 seconds to raise the Hood.

Press briefly to turn the Motor On/Off.

On/Off

Hood Up

Press once: The Hood lowers.

Press a second time: The Hood Stops.

When the movement has been completed

the motor turns on at Speed two.

Off/Off

Warning: The Hood controls only control the Hood functions. The Lighting unit has a

completely separate power supply and a separate switch.

The electronic control system recognises and signals two types of fault.

Led T1

Slow flashing

Current absorption threshold exceeded:

If an overload condition occurs, the fault is signalled by LED T1 on the

keyboard flashing once every 2 seconds. Check that nothing is blocking

normal hood movements.

The signal remains active until a new hood open/close command is given.

Rapid flashing

Hood open

ing safety microswitch tripped:

If the safety microswitch trips, the fault is signalled by LED T1 on the

keyboard flashing quickly (once every 250 ms). This means that the hood

has passed the microswitch…….. Call Technical Assistance!

You can continue to use the hood’s light and motor functions while this

fault is active. Whenever the motor is on, LED T1 will continue to flash,

ind

cating that the fault is still present.
