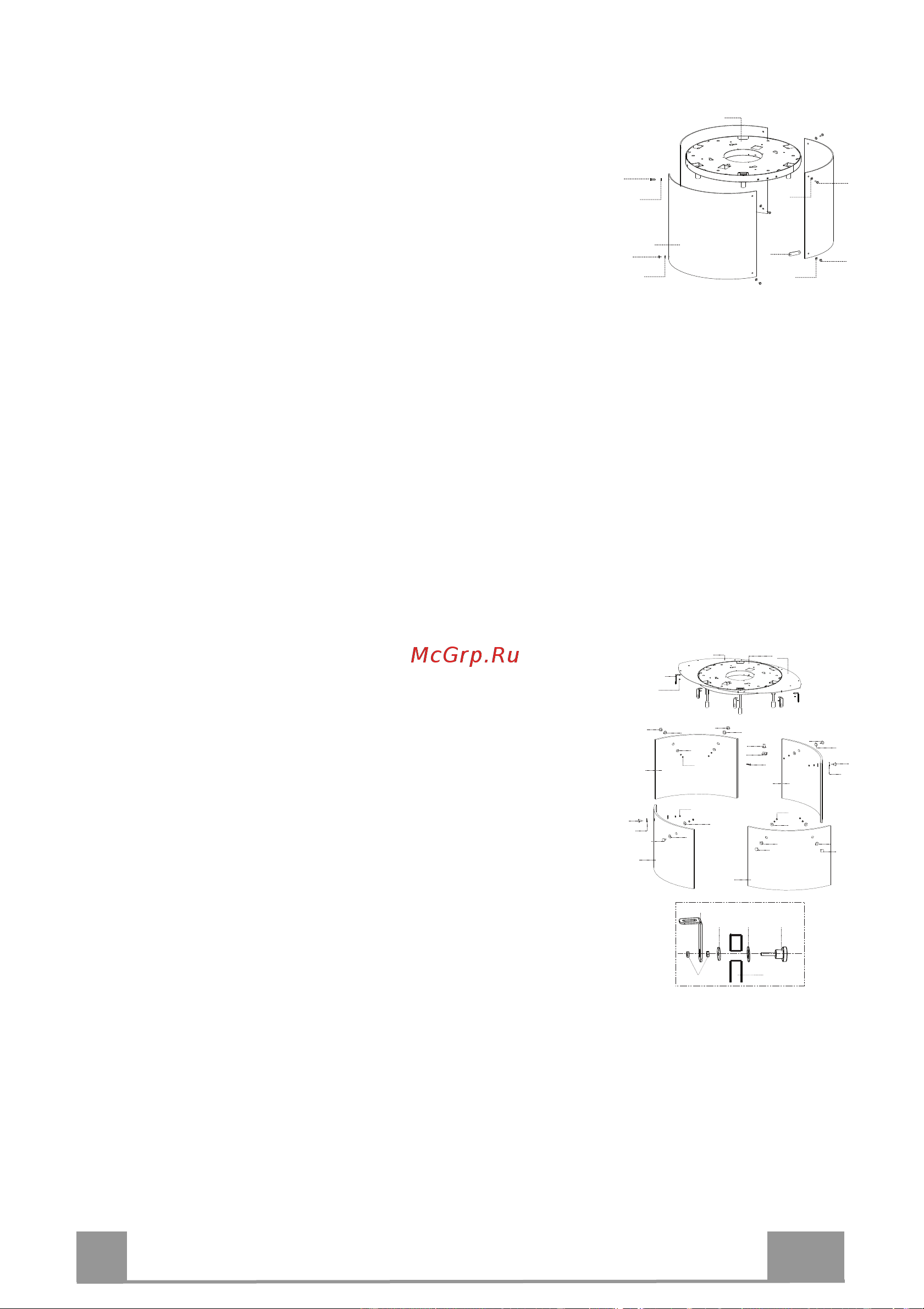

FITTING THE GLASS – CHIC-VANILLA MODELS

• Take the lamps and insert them in the lamp holders.

• They do not have to be screwed in, but simply inserted all the

way.

• Fix the glass 5 to the plate using the screws 12d and washers

22 in the top part.

• Fix the glass elements together at the bottom using the glass

fixing plates 6 with screws 12e and washers 22.

12d

12e

12d

FITTING THE GLASS – NEST MODEL

• Take the lamps and insert them in the lamp holders.

• They do not have to be screwed in, but simply inserted all the

way.

• Fix the assembly frames 7.1 to the plate using the nuts 12d.

• Insert the Seal 12f into the Knob 12e, then insert the glass 5

and the other Seal 12h, fixing the whole with a Nut 12d.

• Insert the end of the Knob 12e into the slot in the assembly

frames 7.1 and fasten with the second Nut 12d.

• Small adjustments can be made to the glass by loosening the

nuts 12d that clamp it to the bracket.
