EN
2
3
23
CONNECTING HOOD-PLATE CABLES
N.B. Before continuing with installation it is necessary to move the hood to a height
of at least 650 mm from the cooker hob, using a support or the assistance of
another person.
This is essential, as the hood cables must necessarily be connected to the plate
fitted to the ceiling without the weight of the hood bearing on the structure.

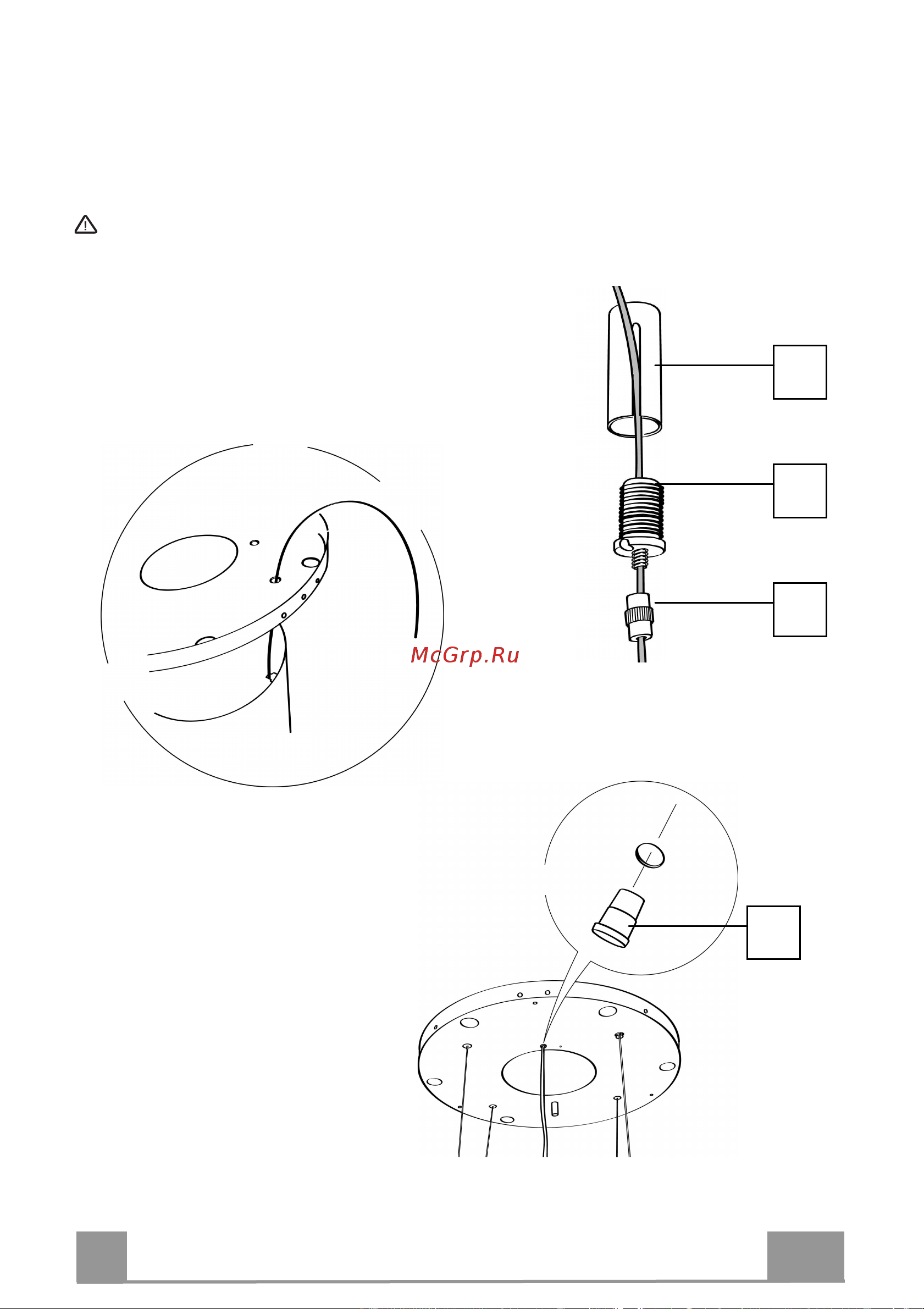

• The cable fixing system is made up of 3 parts:
• Threaded Pawls (a) already mounted on the ceiling plate.
• Cable clamp screws (b) provided.
• Safety knobs (c) provided.
• Pass the cables connected to the hood
c
anopy into the respective holes in the
plate cover, after dismantling
• Insert the cable raceway 4 in
the opening on the plate cover
and pass the hood power
supply cable through it.
Warning: Do not break or
remove the clamp fixing the
power cable to the Hood
4
a
b
c
