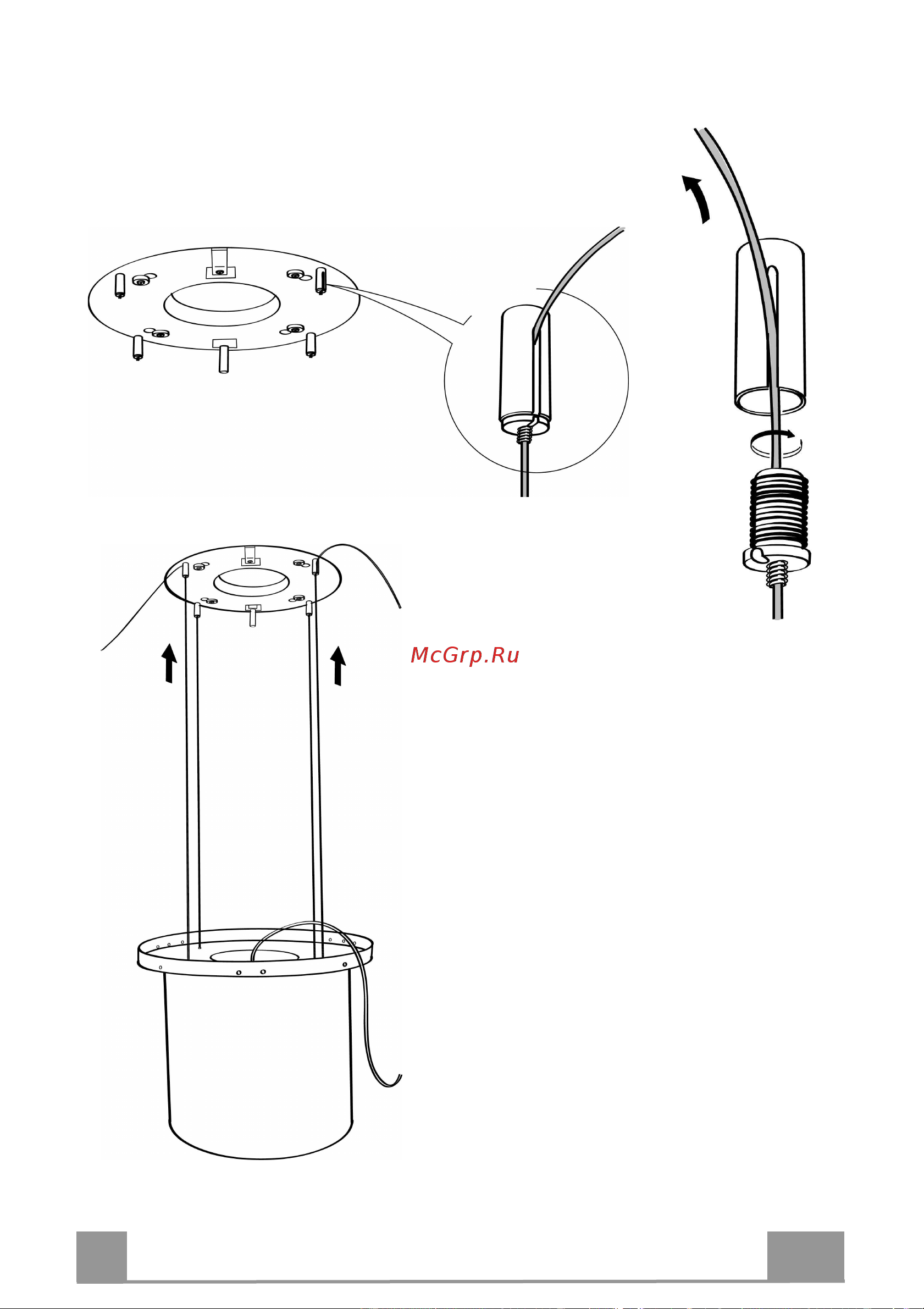

• Pass the cables through the slots in the threaded pawls (a)

and screw the cable locking screws (b) to the pawls

themselves.

• When the operation has been

completed the result must be as

shown in the figure for all 4

cables.

• At this point we have all 4 cables

connected to the plate

Bring the cables under tension by

pushing them upwards so that they slide

inside the cable clamp screw and slide

out of the slot in the threaded pawl.

This is possible because the cable clamp

screw has a system that, if mounted

properly, allows the cables to slide

inside it in one direction only, and

prevents it from sliding in the other

direction.

Attention, the cables all have the same

length to facilitate the operation of the

final level. The front left cable must not

be slacker than the others.
