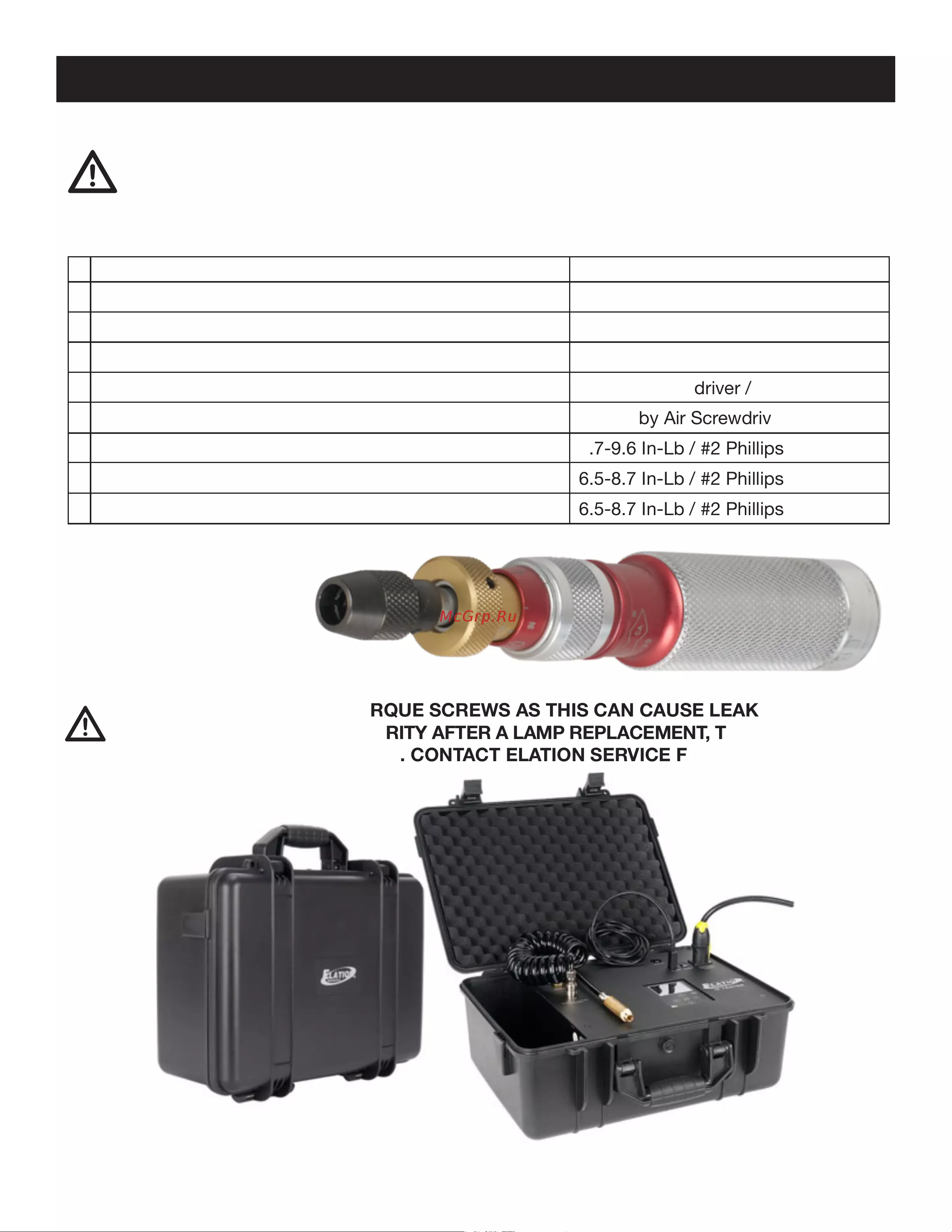

Hydro Beam X1 Torque Settings & IP Tester

1 Lens Assembly to Head Casting (x6) 6.5-8.7 In-Lb / 3mm Hex

2 Lamp Cover to Head Casting (x4) 6.5-8.7 In-Lb / 3mm Hex

3 Yoke Arm Cover to Yoke Frame (8 x Each Side = 16 Total) 6.5-8.7 In-Lb / 3mm Hex

4 Access Cover to Yoke Frame (x4) Manual Screwdriver / 3mm Hex

5 Handle to Base Casting (2 x Each Side = 4 Total) Fasten by Air Screwdriver / 5mm Hex

6 Bottom Cover to Base Casting (x12) 6.7-9.6 In-Lb / #2 Phillips

7 Power & Data Connector to Base Casting (x10) 6.5-8.7 In-Lb / #2 Phillips

8 1/4 Turn Adaptor Plate to Bottom Cover (x14) 6.5-8.7 In-Lb / #2 Phillips

SCREW LOCATIONS TORQUE SETTING & TOOL SIZE#

TORQUE SETTINGS FOR SCREWS

ALL SCREWS MUST BE TIGHTENED WITH A TORQUE DRIVER. All screws are Allen

Head screws. Please see below for screw locations, screw quantity and torque settings. The

number listed in the “#” column corresponds to the location on the xture. See the xture

diagram and number on the next page for screw location depictions.

CAUTION! DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE ISSUES!

TO CONFIRM THE IP65 INTENGRITY AFTER A LAMP REPLACEMENT, TEST THE FIXTURE

USING THE ELATION IP TESTER. CONTACT ELATION SERVICE FOR MORE DETAILS.

TORQUE DRIVERS (Recommended):

UTICA TS-30 (Shown)

ALTERNATIVE DRIVERS:

Proto J6107A

Wiha 28887
